Sub-class with additional functionality for result output. More...

#include <SIMoutput.h>

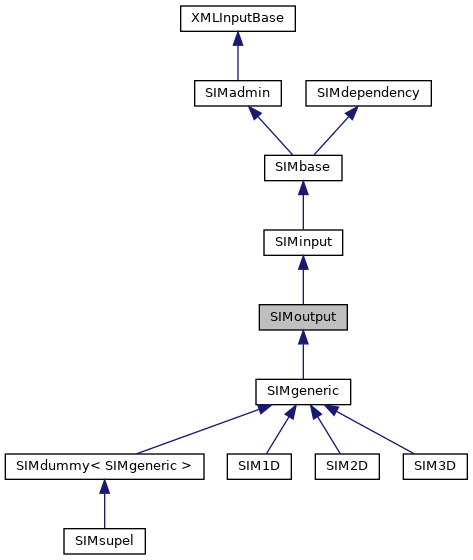

Inheritance diagram for SIMoutput:

[legend]

Collaboration diagram for SIMoutput:

[legend]

Classes
struct	ResultPoint
	Struct defining a result sampling point. More...

Public Member Functions
virtual	~SIMoutput ()
	The destructor frees the dynamically allocated VTF object.

virtual void	clearProperties ()
	Initializes the property containers of the model.

virtual bool	parse (char *keyWord, std::istream &is)
	Parses a data section from an input stream. More...

virtual bool	merge (SIMbase that, const std::map< int, int > old2new, int poff)
	Merges the global equation system of that simulator with this. More...

bool	getElementSet (int iset, std::string &name, RealArray &elSet) const
	Retrieves the specified element set as a scalar field. More...

virtual bool	writeGlvG (int &nBlock, const char *inpFile, bool doClear=true)
	Writes current model geometry to the VTF-file. More...

bool	writeGlvG (int &nBlock, double time)
	Writes current model geometry to the currently open VTF-file. More...

virtual bool	writeGlvA (int &, int, double, int=1) const
	Writes additional, problem-specific, results to the VTF-file.

bool	writeGlvBC (int &nBlock, int iStep=1) const
	Writes boundary conditions as scalar fields to the VTF-file. More...

bool	writeGlvNo (int &nBlock, int &idBlock, int maxBlock=20, int iStep=1) const
	Writes global node numbers as scalar fields to the VTF-file. More...

bool	writeGlvT (int iStep, int &geoBlk, int &nBlock) const
	Writes boundary tractions for a given time step to the VTF-file. More...

bool	writeGlvV (const RealArray &vec, const char *fieldName, int iStep, int &nBlock, int idBlock=2, int ncmp=0) const
	Writes a vector field for a given load/time step to the VTF-file. More...

bool	writeGlvS (const Vector &scl, const char *fieldName, int iStep, int &nBlock, int idBlock=2) const
	Writes a scalar field for a given load/time step to the VTF-file. More...

bool	writeGlvS (const Vector &psol, int iStep, int &nBlock, double time=0.0, const char *pvecName=nullptr, int idBlock=10, int psolComps=0)
	Writes solution fields for a given load/time step to the VTF-file. More...

virtual int	writeGlvS1 (const Vector &psol, int iStep, int &nBlock, double time=0.0, const char *pvecName=nullptr, int idBlock=10, int psolComps=0, bool scalarOnly=false)
	Writes primary solution for a given load/time step to the VTF-file. More...

virtual int	writeGlvS2 (const Vector &psol, int iStep, int &nBlock, double time=0.0, int idBlock=20, int psolComps=0)
	Writes secondary solution for a load/time step to the VTF-file. More...

bool	eval2ndSolution (const Vector &psol, double time, int psolComps=0)
	Evaluates the secondary solution for a given load/time step. More...

bool	writeGlvP (const RealArray &ssol, int iStep, int &nBlock, int idBlock=100, const char prefix="Global projected", std::vector< PointValues > maxVal=nullptr)
	Writes projected solutions for a given time step to the VTF-file. More...

bool	writeGlvM (const Mode &mode, bool freq, int &nBlock)
	Writes a mode shape to the VTF-file. More...

bool	writeGlvE (const Vector &field, int iStep, int &nBlock, const char *name, int idBlock=300, bool internalOrder=false) const
	Writes element field for a given load/time step to the VTF-file. More...

bool	writeGlvN (const Matrix &norms, int iStep, int &nBlock, const std::vector< std::string > &prefix={}, int idBlock=200, const char *dualPrefix=nullptr)
	Writes element norms for a given load/time step to the VTF-file. More...

bool	writeGlvF (const RealFunc &f, const char fname, int iStep, int &nBlock, const Vector state=nullptr, int idBlock=50, double time=0.0, const ASMbase *patch=nullptr)
	Writes a scalar function to the VTF-file. More...

bool	writeGlvStep (int iStep, double value=0.0, int itype=0)
	Writes load/time step info to the VTF-file. More...

void	closeGlv ()
	Closes the current VTF-file.

VTF *	getVTF () const
	Returns the current VTF-file object.

void	setVTF (VTF *vtf)
	Defines the VTF-file for subsequent results output.

int	getStartGeo () const
	Returns the initial geometry block index.

void	setStartGeo (int gID)
	Initializes the geometry block counter.

bool	dumpMatlabGrid (std::ostream &os, const std::string &name="IFEM_Mesh", const std::vector< std::string > &sets={}, double scale=1.0) const
	Dumps the FE model to Matlab format. More...

bool	dumpGeometry (std::ostream &os) const
	Dumps the (possibly refined) spline geometry in g2-format. More...

void	dumpPrimSol (const Vector &psol, utl::LogStream &os, bool withID=true) const
	Dumps the primary solution in ASCII format for inspection. More...

bool	dumpSolution (const Vector &psol, utl::LogStream &os) const
	Dumps the entire solution in ASCII format. More...

bool	dumpResults (const Vector &psol, double time, utl::LogStream &os, bool formatted=false, std::streamsize precision=3) const
	Dumps solution results at specified points in ASCII format. More...

bool	dumpVector (const Vector &vsol, const char *fname, utl::LogStream &os, std::streamsize precision=3) const
	Dumps vector solution at specified points in ASCII format. More...

virtual void	dumpMoreResults (double, utl::LogStream &, std::streamsize=3) const
	Dumps additional problem-specific results in ASCII format.

bool	savePoints (const Vector &psol, double time, int step) const
	Saves point results to output file for a given time step. More...

bool	saveResults (const Vectors &psol, double time, int step) const
	Saves result components to output files for a given time step. More...

bool	hasResultPoints () const
	Checks whether result points have been defined or not.

bool	hasPointResultFile () const
	Checks whether point result files have been defined or not.

void	setPointResultFile (const std::string &filename, bool dumpCoord=false)
	Sets the file name for result point output. More...

virtual bool	serialize (std::map< std::string, std::string > &) const
	Serialization support.

virtual double	getReferenceNorm (const Vectors &, size_t) const =0
	Returns the reference norm to base mesh adaptation upon.

virtual double	getEffectivityIndex (const Vectors &, size_t, size_t) const =0
	Returns the global effectivity index.

virtual void	printNorms (const Vectors &, size_t=36) const =0
	Prints integrated solution norms to the log stream.

virtual void	printIFforces (const Vector &, RealArray &)
	Prints out interface force resultants to the log stream.

virtual int	printNRforces (const IntVec &glbNodes={}) const
	Prints out the nodal reaction forces to the log stream.

virtual bool	parse (char *keyWord, std::istream &is)
	Parses a data section from an input stream. More...

virtual bool	parse (const tinyxml2::XMLElement *elem)
	Parses a data section from an XML document. More...

Public Member Functions inherited from SIMinput
virtual	~SIMinput ()
	Empty destructor.

virtual const char **	getPrioritizedTags () const
	Returns a list of prioritized XML-tags.

bool	readTopologyOnly (const std::string &fileName)
	Reads patch topology from the specified input file. More...

int	getUniquePropertyCode (const std::string &setName, int comp=0)
	Returns a unique integer code for a Property set. More...

size_t	setVecProperty (int code, Property::Type ptype, VecFunc *field=nullptr, int pflag=-1)
	Defines a vector field property. More...

bool	setTracProperty (int code, Property::Type ptype, TractionFunc *field=nullptr)
	Defines a traction field property. More...

size_t	setPropertyType (int code, Property::Type ptype, int pindex=-1, char basis=1)
	Defines the type of a property set. More...

bool	setNeumann (const std::string &prop, const std::string &type, int ndir, int code)
	Defines a Neumann boundary condition property by parsing a string. More...

std::vector< int >	getFunctionsForElements (const std::vector< int > &elements)
	Finds the set of basis functions with support on a set of elements. More...

bool	refine (const LR::RefineData &prm)
	Refines the mesh adaptively. More...

bool	refine (const LR::RefineData &prm, Vector &sol)
	Refines the mesh adaptively. More...

bool	refine (const LR::RefineData &prm, Vectors &sol)
	Refines the mesh adaptively. More...

int	refine (const RealFunc &refC, double refTol)
	Refines the mesh based on a mesh density function. More...

bool	readPatches (std::istream &isp, const char *whiteSpace="")
	Reads patches from given input stream. More...

bool	addConnection (int mst, int slv, int mIdx, int sIdx, bool coordCheck=false, int dim=1, int thick=1)
	Connects two patches. More...

const std::vector< ASM::Interface > &	getInterfaces () const
	Obtain a const reference to model topology.

int	restartBasis (const std::string &restartFile, int restartStep)
	Handles application restarts by reading a serialized basis. More...

virtual bool	createFEMmodel (char resetNumb='y')
	Creates the computational FEM model from the spline patches. More...

virtual void	clonePatches (const PatchVec &, const std::map< int, int > &)
	Creates the computational FEM model by copying the given patches.

virtual bool	hasIC (const std::string &name) const
	Checks whether a named initial condition is present.

bool	setInitialConditions (SIMdependency *fieldHolder=nullptr)
	Sets the initial conditions. More...

virtual bool	deSerialize (const SerializeMap &)
	Deserialization support (for simulation restart).

const TopEntity &	getEntity (const std::string &name) const
	Returns reference to a named topology entity.

TopEntity &	topology (const std::string &name)
	Returns access to a named topology entity (for model generators).

const TopologySet &	getTopology () const
	Returns the whole topology set container (for testing only).

bool	getTopItemNodes (const TopItem &titem, std::vector< int > &glbNodes) const
	Returns the node numbers associated with a topological item.

IdxVec3 *	getDiscretePoint (int idx)
	Returns pointer to an indexed discrete point.

virtual std::vector< std::vector< int > >	getElmConnectivities () const
	Returns the element-to-element connectivities.

Public Member Functions inherited from SIMbase
virtual	~SIMbase ()
	The destructor frees the dynamically allocated objects.

bool	readModel (const char *fileName)
	Reads model data from the specified input file *fileName. More...

virtual void	initForSingleStep ()
	Interface for app-specific single-step simulation initialisation.

virtual void	initForMultiStep ()
	Interface for app-specific multi-step simulation initialisation.

virtual bool	preprocessC (const IntVec &ignored, bool fixDup, double time0)
	Performs some pre-processing tasks on the FE model. More...

bool	initSystem (LinAlg::MatrixType mType, size_t nMats=1, size_t nVec=1, size_t nScl=0, bool withRF=false)
	Allocates the system matrices of the FE problem to be solved. More...

bool	initSystem (const SIMbase *that)
	Lets this simulator share equation system with that simulator.

void	initLHSbuffers ()
	Initializes left-hand-side element matrix buffers for integrand.

bool	setAssociatedRHS (size_t iMat, size_t iVec)
	Associates a system vector to a system matrix. More...

bool	setMode (int mode, bool needIntegr=true, bool resetSol=false)
	Defines the solution mode before the element assembly is started. More...

void	setIntegrationPrm (unsigned short int i, double prm)
	Initializes an integration parameter for the integrand. More...

void	setQuadratureRule (size_t ng, bool redimBuffers=false, bool printQP=false)
	Defines the spatial numerical integration scheme to use. More...

virtual bool	printProblem () const
	Prints out problem-specific data to the log stream.

const IntegrandBase *	getProblem () const
	Returns a pointer to the problem-specific data object.

virtual ASM::InterfaceChecker *	getInterfaceChecker (size_t) const
	Returns interface checker type for model.

void	clearProblem ()
	Clears the reference to the problem-specific data object. More...

virtual std::string	getName () const
	Returns the name of this simulator. More...

virtual bool	mixedProblem () const
	Returns whether a mixed formulation is used (used by HDF5 output).

const LinSolParams *	getSolParams () const
	Returns the linear equation solver parameters (for PETSc).

virtual unsigned short int	getNoParamDim () const =0
	Returns the number of parameter dimensions in the model.

virtual size_t	getNoSpaceDim () const
	Returns the number of spatial dimensions in the model.

size_t	getNoFields (int basis=0) const
	Returns the number of primary solution fields. More...

size_t	getNoDOFs (bool subSim=false) const
	Returns the model size in terms of number of DOFs.

size_t	getNoNodes (int basis=0) const
	Returns the model size in terms of number of unique nodes. More...

size_t	getNoElms (bool includeXelms=false, bool includeZelms=false) const
	Returns the model size in terms of number of elements. More...

size_t	getNoSolutions (bool allocated=false) const
	Returns the number of solution vectors.

int	getNoPatches () const
	Returns the total number of patches in the model.

size_t	getNoEquations () const
	Returns the number of unknowns in the linear equation system.

size_t	getNoConstraints () const
	Returns the number of constraint equations in the model.

virtual size_t	getNoRHS () const
	Returns the number of right-hand-side vectors.

unsigned char	getNoBasis () const
	Returns the number of bases in the model.

char	getNodeType (int inod) const
	Returns the type (DOF classification) of the specified global node.

Vec4	getNodeCoord (int inod) const
	Returns the spatial coordinates of the specified global node.

bool	isFixed (int inod, int dof=123) const
	Returns true if all DOFs in the specified global node are fixed.

int	getGlobalNode (int node) const
	Returns the global node number from a process-local node number.

int	getLocalNode (int node) const
	Returns the process-local node number from a global node number.

bool	getElmNodes (IntVec &mnpc, int iel) const
	Finds the Matrix of Nodal Point Correspondance for element iel.

void	getBoundaryNodes (int pcode, IntVec &glbNodes, std::vector< Vec3 > *XYZ=nullptr) const
	Finds the list of global nodes associated with a boundary. More...

int	findClosestNode (const Vec3 &) const
	Finds the node that is closest to the given point X.

IntVec	getNodeSet (const std::string &setName) const
	Returns a predefined node set. More...

bool	initDirichlet (double time=0.0)
	Initializes time-dependent in-homogeneous Dirichlet coefficients. More...

bool	hasTimeDependentDirichlet () const
	Checks for time-dependent in-homogeneous Dirichlet conditions.

virtual bool	updateDirichlet (double time=0.0, const Vector *prevSol=nullptr)
	Updates the time-dependent in-homogeneous Dirichlet coefficients. More...

virtual bool	updateConfiguration (const Vector &)
	Updates problem-dependent state based on the current solution.

virtual bool	updateRotations (const RealArray &, double=0.0)
	Updates the nodal rotations for problems with rotational DOFs.

bool	updateGrid (const RealArray &displ)
	Updates the grid coordinates. More...

bool	updateGrid (const std::string &field)
	Updates the grid coordinates. More...

void	setRefined (int nref)
	Sets the refinement status (for restart of adaptive simulations). More...

int	getRefined () const
	Returns current refinement status.

bool	hasElementActivator () const
	Returns true if an element activation function is specified.

void	updateForNewElements (Vector &solution, const TimeDomain &time) const
	Modifies the current solution vector when activating elements. More...

virtual bool	assembleSystem (const TimeDomain &time, const Vectors &prevSol, bool newLHSmatrix=true, bool poorConvg=false)
	Administers assembly of the linear equation system. More...

bool	assembleSystem (double t0=0.0, const Vectors &pSol=Vectors())
	Administers assembly of the linear equation system. More...

bool	extractLoadVec (Vector &loadVec, size_t idx=0, const char *hd=nullptr) const
	Extracts the assembled load vector for inspection/visualization. More...

bool	extractScalars (RealArray &values) const
	Extracts the assembled global scalar quantities.

double	extractScalar (size_t idx=0) const
	Extracts an assembled global scalar quantity.

bool	applyDirichlet (Vector &glbVec) const
	Applies the Dirichlet conditions to given vector. More...

bool	solveEqSystem (Vector &solution, size_t idxRHS, double rCond, int printSol=0, bool dumpEqSys=false, const char compName="displacement")
	Solves the assembled linear system of equations for a given load. More...

virtual bool	solveSystem (Vector &solution, int printSol, double rCond, const char compName="displacement", size_t idxRHS=0)
	Solves the assembled linear system of equations for a given load. More...

bool	solveSystem (Vector &solution, int printSol=0, const char *compName="displacement")
	Solves the assembled linear system of equations for a given load. More...

bool	solveSystem (Vectors &solution, int printSol=0, const char *cmpName="displacement")
	Solves a linear system of equations with multiple right-hand-sides. More...

void	getWorstDofs (const Vector &x, const Vector &r, size_t nWorst, double eps, int iteNorm, std::map< std::pair< int, int >, RealArray > &worst) const
	Finds the DOFs showing the worst convergence behavior. More...

virtual void	iterationNorms (const Vector &x, const Vector &r, double &eNorm, double &rNorm, double &dNorm) const
	Evaluates some iteration norms for convergence assessment. More...

double	solutionNorms (const Vector &x, double inf=nullptr, size_t ind=nullptr, size_t nf=0, char type='D') const
	Evaluates some norms of the primary solution vector. More...

bool	solutionNorms (const TimeDomain &time, const Vectors &psol, const Vectors &ssol, Vectors &gNorm, Matrix eNorm=nullptr, const char name=nullptr)
	Integrates some solution norm quantities. More...

bool	solutionNorms (const TimeDomain &time, const Vectors &psol, Vectors &gNorm, Matrix *eNorm=nullptr)
	Integrates some solution norm quantities. More...

bool	solutionNorms (const Vector &psol, const Vectors &ssol, Matrix &eNorm, Vectors &gNorm, const char *name=nullptr)
	Integrates some solution norm quantities. More...

bool	solutionNorms (const Vector &psol, Matrix &eNorm, Vectors &gNorm)
	Integrates some solution norm quantities. More...

bool	solutionNorms (const Vector &psol, const Vectors &ssol, Vectors &gNorm, const char *name=nullptr)
	Integrates some solution norm quantities. More...

virtual void	printStep (int istep, const TimeDomain &time) const
	Prints out load/time step identification. More...

virtual void	printSolutionSummary (const Vector &solution, int printSol=0, const char *compName=nullptr, std::streamsize outPrec=0)
	Prints a summary of the calculated solution to std::cout. More...

bool	getCurrentReactions (RealArray &RF, const Vector &psol, int pcode=0) const
	Computes the total reaction forces in the model. More...

bool	haveReactions (int pcode=0) const
	Checks for total reaction forces associated with a boundary. More...

virtual const RealArray *	getReactionForces () const
	Returns current reaction force container.

bool	systemModes (std::vector< Mode > &solution, int nev, int ncv, int iop, double shift, size_t iA=0, size_t iB=1)
	Performs a generalized eigenvalue analysis of the assembled system. More...

bool	systemModes (std::vector< Mode > &solution, size_t iA=0, size_t iB=1)
	Performs a generalized eigenvalue analysis of the assembled system. More...

virtual bool	haveBoundaryReactions (bool=false) const
	Returns whether reaction forces are to be computed or not.

bool	assembleForces (const Vector &solution, double t0, RealArray R, Vector S=nullptr)
	Assembles reaction and interface forces for specified boundaries. More...

virtual bool	project (Matrix &ssol, const Vector &psol, SIMoptions::ProjectionMethod method=SIMoptions::GLOBAL, const TimeDomain &time=TimeDomain()) const
	Projects the secondary solution associated with a primary solution. More...

bool	project (Vector &ssol, const Vector &psol, SIMoptions::ProjectionMethod method=SIMoptions::GLOBAL, size_t iComp=0) const
	Projects the secondary solution associated with a primary solution. More...

bool	projectAnaSol (Vector &ssol, SIMoptions::ProjectionMethod method) const
	Projects the analytical secondary solution, if any. More...

bool	project (RealArray &values, const FunctionBase *f, int basis=1, int iField=0, int nFields=1, SIMoptions::ProjectionMethod method=SIMoptions::GLOBAL, double time=0.0) const
	Projects a function onto the specified basis. More...

bool	evalSecondarySolution (Matrix &field, int pindx) const
	Evaluates the secondary solution field for specified patch. More...

virtual bool	fieldProjections () const
	Returns whether projections must be handled through fields or not.

virtual bool	haveAnaSol () const
	Returns whether an analytical solution is available or not.

virtual bool	haveDualSol () const
	Returns whether a dual solution is available or not.

NormBase *	getNormIntegrand () const
	Returns a pointer to a norm integrand object for this simulator. More...

ForceBase *	getBoundaryForceIntegrand (const Vec3 *X0=nullptr) const
	Returns a pointer to a force integrand object for this simulator. More...

ForceBase *	getNodalForceIntegrand () const
	Returns a pointer to a force integrand object for this simulator. More...

const SAM *	getSAM () const
	Returns a const pointer to the SAM object of this simulator.

void	registerDependency (const std::string &name, SIMdependency *sim, short int nvc=1, unsigned char basis=1)
	Registers a dependency on a field from another SIM object. More...

bool	extractPatchSolution (const Vectors &sol, size_t pindx) const
	Extracts all local solution vector(s) for a specified patch. More...

size_t	extractPatchSolution (const RealArray &sol, RealArray &vec, const ASMbase *pch, unsigned char nndof=0, unsigned char basis=0) const
	Extracts a local solution vector for a specified patch. More...

bool	injectPatchSolution (RealArray &sol, const RealArray &vec, const ASMbase *pch, unsigned char nndof=0, unsigned char basis=0) const
	Injects a patch-wise solution vector into the global vector. More...

bool	extractPatchElmRes (const Matrix &glbRes, Matrix &elRes, int pindx) const
	Extracts element results for a specified patch. More...

int	getLocalPatchIndex (int patchNo) const
	Returns the local patch index for the given global patch number. More...

const PatchVec &	getFEModel () const
	Returns a const reference to our FEM model.

ASMbase *	getPatch (int idx, bool glbIndex=false) const
	Returns a pointer to a specified patch of our FEM model. More...

bool	setPatchMaterial (size_t patch) const
	Initializes material properties for the given patch.

const std::map< int, int > &	getGlob2LocMap () const
	Returns a const reference to our global-to-local node mapping.

PropertyVec::const_iterator	begin_prop () const
	Returns the beginning of the property array.

PropertyVec::const_iterator	end_prop () const
	Returns the end of the property array.

SystemMatrix *	getRayleighDampingMatrix (size_t iM=1, size_t iK=0) const
	Returns current Rayleigh system damping matrix. More...

SystemMatrix *	getLHSmatrix (size_t idx=0, bool copy=false) const
	Returns current system left-hand-side matrix.

SystemVector *	getRHSvector (size_t idx=0, bool copy=false) const
	Returns current system right-hand-side vector.

void	addToRHSvector (size_t idx, const SystemVector &vec, double scale=1.0)
	Adds a system vector to the given right-hand-side vector.

RealFunc *	getSclFunc (int code) const
	Returns a scalar function associated with code.

void	setMDflag (char flag)
	Sets the multi-dimension simulator sequence flag.

bool	isFirst () const
	Returns true, if this is the equation system owner.

void	dumpEqSys (bool initialBlankLine=false)
	Dumps left-hand-side matrix and right-hand-side vector to file.

void	dumpSolVec (const Vector &x, bool isExpanded=true, bool expOnly=false)
	Dumps a solution vector to file.

virtual void	registerDependency (SIMdependency *sim, const std::string &name, short int nvc, const PatchVec &patches, char diffBasis=0, int component=1)
	Registers a dependency on a field from another SIM object. More...

virtual void	registerDependency (SIMdependency sim, const std::string &name, short int nvc, const PatchVec &patches, const int MADOF)
	Registers a dependency on a field from another SIM object. More...

virtual void	registerDependency (SIMdependency *sim, const std::string &name, short int nvc=1)
	Registers a dependency on a field from another SIM object. More...

Public Member Functions inherited from SIMadmin
virtual	~SIMadmin ()
	Empty destructor.

virtual bool	read (const char *fileName)
	Reads model data from the specified input file *fileName.

virtual bool	preprocess (const IntVec &ignored={}, bool fixDup=false)
	Performs some pre-processing tasks on the FE model.

const ProcessAdm &	getProcessAdm () const
	Returns the parallel process administrator.

int	getGlobalProcessID () const
	Returns the global process ID. More...

const std::string &	getHeading () const
	Returns the simulator heading.

void	setHeading (const std::string &heading)
	Defines the simulator heading.

void	printHeading (int &supStep) const
	Prints the heading of this simulator, if any, to IFEM::cout.

Public Member Functions inherited from XMLInputBase
bool	readXML (const char *fileName, bool verbose=true)
	Reads an XML input file. More...

bool	loadXML (const char *xml)
	Loads data from an XML-formatted text string. More...

Public Member Functions inherited from SIMdependency
virtual	~SIMdependency ()
	Empty destructor.

virtual void	registerDependency (SIMdependency *sim, const std::string &name, short int nvc, const PatchVec &patches, char diffBasis=0, int component=1)
	Registers a dependency on a field from another SIM object. More...

virtual void	registerDependency (SIMdependency sim, const std::string &name, short int nvc, const PatchVec &patches, const int MADOF)
	Registers a dependency on a field from another SIM object. More...

virtual void	registerDependency (SIMdependency *sim, const std::string &name, short int nvc=1)
	Registers a dependency on a field from another SIM object. More...

bool	fillField (const std::string &name, const std::vector< double > &values)
	Initializes the nodal vector of named field in this SIM.

virtual std::vector< double > *	getField (const std::string &name)
	Returns the nodal vector of named field in this SIM.

virtual const std::vector< double > *	getField (const std::string &name) const
	Returns the nodal vector of named field in this SIM.

const std::vector< double > *	getDependentField (const std::string &name) const
	Returns the nodal vector of named field in a dependent SIM.

ASMbase *	getDependentPatch (const std::string &name, int pindx) const
	Returns a spline patch associated with a dependent field.

void	registerField (const std::string &name, const std::vector< double > &vec)
	Registers a named field with associated nodal vector in this SIM.

Protected Types
using	ResPointVec = std::vector< ResultPoint >
	Result point container.

using	ResPtPair = std::pair< std::string, ResPointVec >
	File name to result point group mapping.

Protected Types inherited from SIMinput
typedef std::map< std::string, std::string >	SerializeMap
	Convenience type.

Protected Types inherited from SIMbase
typedef std::map< int, RealFunc * >	SclFuncMap
	Scalar field container.

typedef std::map< int, VecFunc * >	VecFuncMap
	Vector field container.

typedef std::map< int, TractionFunc * >	TracFuncMap
	Traction field container.

typedef std::multimap< int, IntegrandBase * >	IntegrandMap
	Property code to integrand map.

Protected Types inherited from SIMadmin
using	IntVec = std::vector< int >
	Convenience alias.

Protected Member Functions
	SIMoutput (IntegrandBase *itg)
	The constructor just forwards to the base class constructor.

virtual bool	parseOutputTag (const tinyxml2::XMLElement *elem)
	Parses a subelement of the resultoutput XML-tag.

virtual ElementBlock *	tesselatePatch (size_t pidx) const
	Tesselates the specified patch.

void	addAddFunc (const std::string &fn, RealFunc *f)
	Adds a function for additional VTF-file output. More...

virtual bool	writeAddFuncs (int &nBlock, int &idBlock, const Vector &psol, int iStep, double time)
	Writes out the additional functions to VTF-file. More...

virtual void	preprocessResultPoints ()
	Preprocesses the result sampling points.

Protected Member Functions inherited from SIMinput
	SIMinput (IntegrandBase *itg)
	The constructor just forwards to the base class constructor.

virtual bool	parse (const tinyxml2::XMLElement *elem)
	Parses a data section from an XML document. More...

virtual bool	parseGeometryDimTag (const tinyxml2::XMLElement *elem)=0
	Parses a dimension-specific subelement of the geometry XML-tag.

bool	parsePeriodic (const tinyxml2::XMLElement *elem)
	Parses the periodic XML-tag. More...

FunctionBase *	parseDualTag (const tinyxml2::XMLElement *elem, int ftype=1)
	Parses the dualfield tag.

int	parseMaterialSet (const tinyxml2::XMLElement *elem, int mindex)
	Parses the "set" attribute of a material XML-tag. More...

bool	parseTopologySet (const tinyxml2::XMLElement *elem, std::vector< int > &patches) const
	Parses the "set" attribute of a refine/raiseorder XML-tag. More...

bool	parsePatchList (const tinyxml2::XMLElement *elem, std::vector< int > &patches) const
	Parses a list of patch indices from an XML-tag. More...

bool	createPropertySet (const std::string &setName, int pc)
	Creates a set of Property objects. More...

virtual ASMbase *	readPatch (std::istream &isp, int pchInd, const CharVec &unf=CharVec(), const char *whiteSpace="") const =0
	Reads a patch from given input stream. More...

virtual bool	readNodes (std::istream &isn, int pchInd, int basis=0, bool oneBased=false)
	Reads global node data for a patch from given input stream. More...

virtual void	readNodes (std::istream &isn)
	Reads node numbers from given input stream. More...

virtual ModelGenerator *	getModelGenerator (const tinyxml2::XMLElement *geo) const =0
	Instantiates a FEM model generator. More...

virtual bool	connectPatches (const ASM::Interface &ifc, bool coordCheck)=0
	Connects two patches. More...

bool	saveBasis (SerializeMap &data) const
	Writes current basis to a serialization container. More...

bool	restoreBasis (const SerializeMap &data)
	Restores the basis from a serialization container. More...

Protected Member Functions inherited from SIMbase
	SIMbase (IntegrandBase *itg)
	The constructor initializes the pointers to dynamic data members.

VecFunc *	getVecFunc (size_t patch, Property::Type ptype) const
	Returns a vector function associated with given patch and property. More...

virtual bool	addConstraint (int patch, int lndx, int ldim, int dirs, int code, int &ngnod, char basis=1, bool ovrD=false)
	Preprocesses a user-defined Dirichlet boundary property. More...

virtual void	preprocessA ()
	Preprocessing performed before the FEM model generation.

virtual bool	preprocessBeforeAsmInit (int &)
	Specialized preprocessing performed before assembly initialization.

virtual bool	preprocessB ()
	Preprocessing performed after the system assembly initialization.

int	renumberNodes (bool renumMNPC=false)
	Renumbers the global node numbers after resolving patch topology. More...

virtual bool	renumberNodes (const std::map< int, int > &)
	Interface for renumbering of app-specific node number tables.

virtual bool	extractPatchSolution (IntegrandBase *problem, const Vectors &sol, size_t pindx) const
	Extracts all local solution vector(s) for a specified patch. More...

char	getMDflag () const
	Returns the multi-dimension simulator sequence flag.

virtual void	shiftGlobalNums (int, int)
	Shifts global node and element numbers by constant offsets.

virtual bool	initMaterial (size_t)
	Initializes material properties for integration of interior terms.

virtual bool	initBodyLoad (size_t)
	Initializes the body load properties for current patch.

virtual bool	initNeumann (size_t)
	Initializes for integration of Neumann terms for a given property.

virtual bool	assembleDiscreteTerms (const IntegrandBase *, const TimeDomain &)
	Assembles problem-dependent discrete terms, if any.

virtual bool	assembleDiscreteItems (const IntegrandBase *itg, const TimeDomain &time, const Vectors &)
	Assembles problem-dependent discrete terms, if any. More...

virtual double	externalEnergy (const Vectors &psol, const TimeDomain &) const
	Computes (possibly problem-dependent) external energy contribution.

virtual bool	postProcessNorms (Vectors &, Matrix *)
	Applies app-specific post-processing on norms.

void	generateThreadGroups (const Property &p, bool silence=false)
	Generates element groups for multi-threading of boundary integrals. More...

void	changeNumThreads ()
	Called if number of threads changes.

bool	addMADOF (unsigned char basis, unsigned char nndof, bool other=true)
	Adds a MADOF with an extraordinary number of DOFs on a given basis. More...

double *	theExtEnerg ()
	Returns a pointer to the external energy path integral value.

const double *	getExtEnerg () const
	Returns a const pointer to the external energy path integral value.

Protected Member Functions inherited from SIMadmin
	SIMadmin (const char *heading=nullptr)
	The default constructor initializes the process administrator.

	SIMadmin (SIMadmin &anotherSIM)
	Copy constructor.

Protected Member Functions inherited from XMLInputBase
const tinyxml2::XMLElement *	loadFile (tinyxml2::XMLDocument &doc, const char *fileName, bool verbose=false)
	Loads an XML input file into a tinyxml2::XMLDocument object. More...

Protected Member Functions inherited from SIMdependency
	SIMdependency ()
	The constructor is protected to allow sub-class instances only.

bool	extractPatchDependencies (IntegrandBase *problem, const PatchVec &model, size_t pindx) const
	Extracts local solution vector(s) for all dependent fields. More...

Protected Attributes
std::map< int, int >	addDisBlk
	Additional displacement block mapping.

std::vector< ResPtPair >	myPoints
	User-defined result sampling points.

Protected Attributes inherited from SIMinput
ModelGenerator *	myGen
	Model generator.

TopologySet	myEntitys
	Set of named topological entities.

std::vector< IdxVec3 >	myTopPts
	Discrete points not belonging to any patch.

std::vector< ASM::Interface >	myInterfaces
	Topology interface descriptions.

std::map< std::string, InitialCondVec >	myICs
	Initial condition definitions.

Protected Attributes inherited from SIMbase
unsigned char	nsd
	Number of spatial dimensions.

PatchVec	myModel
	The actual NURBS/spline model.

PropertyVec	myProps
	Physical property mapping.

SclFuncMap	myScalars
	Scalar property fields.

VecFuncMap	myVectors
	Vector property fields.

TracFuncMap	myTracs
	Traction property fields.

IntegrandBase *	myProblem
	The main integrand of this simulator.

IntegrandMap	myInts
	Set of all integrands involved.

AnaSol *	mySol
	Analytical/Exact solution.

FunctionBase *	dualField
	Dual solution field (extraction function)

std::vector< FunctionBase * >	extrFunc
	Extraction functions for VCP.

int	nGlbNodes
	Total number of unique nodes in the model. More...

int	isRefined
	Indicates if the model is adaptively refined.

bool	lagMTOK
	Indicates if global multipliers is OK with multithreading.

bool	fixZeros
	If true, constrain zero pivots before solving.

std::vector< DumpData >	lhsDump
	Coefficient matrix dump specifications.

std::vector< DumpData >	rhsDump
	Right-hand-side vector dump specifications.

std::vector< DumpData >	solDump
	Solution vector dump specifications.

int	nGlPatches
	Number of global patches.

IntVec	myPatches
	Global patch numbers for current processor.

IntVec	myLoc2Glb
	Local-to-global node number mapping.

std::map< int, int >	myGlb2Loc
	Global-to-local node number mapping.

const std::map< int, int > *	g2l
	Pointer to global-to-local node mapping.

std::map< int, int >	myDegenElm
	Degenerated elements mapping.

std::set< int >	myDupNodes
	Set of duplicated nodes.

AlgEqSystem *	myEqSys
	The actual linear equation system.

SAM *	mySam
	Auxiliary data for FE assembly management.

LinSolParams *	mySolParams
	Input parameters for PETSc.

LinSolParams *	myGl2Params
	Input parameters for PETSc, for L2 projection.

Protected Attributes inherited from SIMadmin
ProcessAdm	adm
	Parallel administrator.

int	myPid
	Processor ID in parallel simulations.

int	nProc
	Number of processors in parallel simulations.

std::string	myHeading
	Heading written before reading the input file.

Private Member Functions
bool	initPatchForEvaluation (int patchNo) const
	Private helper to initialize patch for solution evaluation.

bool	extractNodeVec (const RealArray &glbVec, Vector &locVec, const ASMbase *patch, int nodalCmps, bool &emptyPatches) const
	Private helper to extract patch-level solution vectors.

bool	writeScalarFields (const Matrix &field, int geomID, int &nBlock, std::vector< IntVec > &sID, size_t *nScl=nullptr, ASM::ResultClass resClass=ASM::PRIMARY)
	Private helper to write out scalar fields to VTF-file.

void	preprocessResPtGroup (std::string &ptFile, ResPointVec &points)
	Preprocesses a result sampling point group. More...

bool	dumpResults (const Vector &psol, double time, utl::LogStream &os, const ResPointVec &gPoints, bool formatted, std::streamsize precision) const
	Dumps solution results at the given points in ASCII format. More...

bool	evalResults (const Vectors &psol, const ResPointVec &gPoints, const ASMbase patch, IntVec &points, IntVec &elms, Vec3Vec &Xp, Matrix &sol1, Matrix &sol2, std::vector< std::string > compNames=nullptr) const
	Evaluates solution results at specified points for a given patch. More...

Private Attributes
std::map< std::string, RealFunc * >	myAddScalars
	Scalar functions to output.

std::set< std::string >	wantComps
	Component names for grid output.

int	myPrec
	Output precision for result sampling.

double	myPtSize
	Size of result point visualization in VTF-file.

int	myGeomID
	Geometry block ID for the first patch in the VTF-file.

int	myGeofs1
	ID offset for immersed geometry block in the VTF-file.

int	myGeofs2
	ID offset for extra geometry block in the VTF-file.

VTF *	myVtf
	VTF-file for result visualization.

bool	mergeVtf
	If true, merge multi-patches into one on the VTF-file.

bool	logRpMap
	If true, print out the result point mapping.

int	idxGrid
	Index into myPoints for grid result output.

Additional Inherited Members
Public Types inherited from SIMinput
typedef std::vector< ICInfo >	InitialCondVec
	Convenience declaration.

typedef std::vector< unsigned char >	CharVec
	Convenience declaration.

typedef std::pair< int, Vec3 >	IdxVec3
	Convenience declaration.

Public Types inherited from SIMdependency
typedef std::vector< ASMbase * >	PatchVec
	Spline patch container.

Public Attributes inherited from SIMadmin
SIMoptions &	opt
	Simulation control parameters.

Static Public Attributes inherited from SIMbase
static bool	ignoreDirichlet = false
	Set to true for free vibration analysis.

static bool	preserveNOrder = false
	Set to true to preserve node ordering.

Static Public Attributes inherited from SIMadmin
static int	msgLevel = 2
	Controls the console output amount during solving.

Static Protected Member Functions inherited from SIMinput
static std::istream *	getPatchStream (const char tag, const char patch)
	Helper method returning a stream for patch geometry input. More...

Detailed Description

Sub-class with additional functionality for result output.

This class extends the SIMbase class with some added functionalities for dumping simulation results to VTF and ASCII files, and terminal printout. These items are put in a separate sub-class to hide them from the SIMbase class, which contains the main simulation driver.

Member Function Documentation

◆ addAddFunc()

void SIMoutput::addAddFunc	(	const std::string &	fn,
		RealFunc *	f
	)

inlineprotected

Adds a function for additional VTF-file output.

Parameters

[in]	fn	Function name (appears as the scalar name in the VTF-file)
[in]	f	Pointer to a scalar-valued spatial function.

References myAddScalars.

Referenced by SIM2D::parseGeometryTag().

◆ dumpGeometry()

bool SIMoutput::dumpGeometry ( std::ostream & os ) const

Dumps the (possibly refined) spline geometry in g2-format.

Parameters

os	Output stream to write the geometry data to

References SIMbase::myModel.

Referenced by AdaptiveSetup::writeMesh().

◆ dumpMatlabGrid()

bool SIMoutput::dumpMatlabGrid	(	std::ostream &	os,
		const std::string &	name = `"IFEM_Mesh"`,
		const std::vector< std::string > &	sets = `{}`,
		double	scale = `1.0`
	)		const

Dumps the FE model to Matlab format.

Parameters

	os	Output stream to write the grid data to
[in]	name	Name of the Matlab function returning the grid
[in]	sets	Names of nodal sets to be printed out in addition
[in]	scale	Scaling factor

References SIMbase::getElmNodes(), SIMbase::getNodeCoord(), SIMbase::getNoElms(), SIMbase::getNoNodes(), SIMbase::getPatch(), TopItem::idim, TopItem::item, SIMinput::myEntitys, SIMbase::nsd, and TopItem::patch.

◆ dumpPrimSol()

void SIMoutput::dumpPrimSol	(	const Vector &	psol,
		utl::LogStream &	os,
		bool	withID = `true`
	)		const

Dumps the primary solution in ASCII format for inspection.

Parameters

[in]	psol	Primary solution vector
	os	Output stream to write the solution data to
[in]	withID	If true, write node ID and coordinates too

References utl::vector< T >::empty(), utl::LogStream::flush(), SAM::getMADOF(), SIMbase::myModel, SIMbase::mySam, and utl::trunc().

Referenced by MultiStepSIM::dumpStep().

◆ dumpResults() [1/2]

bool SIMoutput::dumpResults	(	const Vector &	psol,
		double	time,
		utl::LogStream &	os,
		bool	formatted = `false`,
		std::streamsize	precision = `3`
	)		const

Dumps solution results at specified points in ASCII format.

Parameters

[in]	psol	Primary solution vector to derive other quantities from
[in]	time	Load/time step parameter
	os	Output stream to write the solution data to
[in]	formatted	If false, write all result points on a single line without point identifications, but with time as first column
[in]	precision	Number of digits after the decimal point

References utl::vector< T >::empty(), idxGrid, IntegrandBase::initResultPoints(), myPoints, and SIMbase::myProblem.

Referenced by MultiStepSIM::dumpResults(), NewmarkSIM::dumpResults(), savePoints(), and AdaptiveSIM::solveStep().

◆ dumpResults() [2/2]

bool SIMoutput::dumpResults	(	const Vector &	psol,
		double	time,
		utl::LogStream &	os,
		const ResPointVec &	gPoints,
		bool	formatted,
		std::streamsize	precision
	)		const

private

Dumps solution results at the given points in ASCII format.

Parameters

[in]	psol	Primary solution vector to derive other quantities from
[in]	time	Load/time step parameter
	os	Output stream to write the solution data to
[in]	gPoints	Group of result points to write solution data for
[in]	formatted	If false, write all result points on a single line without point identifications, but with time as first column
[in]	precision	Number of digits after the decimal point

References SIMadmin::adm, ProcessAdm::dd, utl::vector< T >::empty(), utl::matrixBase< T >::empty(), evalResults(), utl::LogStream::flags(), IntegrandBase::getNo2ndSolPerLine(), SAM::getNodalReactions(), IntegrandBase::getNoSolutions(), SIMbase::getNoSpaceDim(), ProcessAdm::getProcId(), SIMbase::getReactionForces(), AnaSol::getScalarSecSol(), AnaSol::getScalarSol(), AnaSol::getStressSol(), AnaSol::getVectorSecSol(), AnaSol::getVectorSol(), DomainDecomposition::isPartitioned(), SIMbase::myModel, SIMbase::myProblem, SIMbase::mySam, SIMbase::mySol, utl::LogStream::precision(), utl::matrix< T >::rows(), utl::trunc(), and Vec3::x.

◆ dumpSolution()

bool SIMoutput::dumpSolution	(	const Vector &	psol,
		utl::LogStream &	os
	)		const

Dumps the entire solution in ASCII format.

Parameters

[in]	psol	Primary solution vector to derive other quantities from
	os	Output stream to write the solution data to

References utl::matrix< T >::cols(), utl::vector< T >::empty(), IntegrandBase::getField1Name(), IntegrandBase::getField2Name(), SAM::getMADOF(), SAM::getNodeDOFs(), IntegrandBase::getSolution(), initPatchForEvaluation(), SIMbase::myModel, SIMbase::myProblem, SIMbase::mySam, utl::matrix< T >::rows(), and utl::trunc().

◆ dumpVector()

bool SIMoutput::dumpVector	(	const Vector &	vsol,
		const char *	fname,
		utl::LogStream &	os,
		std::streamsize	precision = `3`
	)		const

Dumps vector solution at specified points in ASCII format.

Parameters

[in]	vsol	Solution vector
[in]	fname	Name of vector field
	os	Output stream to write the solution data to
[in]	precision	Number of digits after the decimal point

References SIMoptions::discretization, utl::vector< T >::empty(), utl::LogStream::flags(), SAM::getMADOF(), SIMbase::getNoFields(), SIMbase::getNoNodes(), idxGrid, SIMoutput::ResultPoint::inod, SIMbase::myModel, myPoints, SIMbase::mySam, SIMadmin::opt, SIMoutput::ResultPoint::patch, utl::LogStream::precision(), utl::matrix< T >::rows(), utl::vector< T >::size(), utl::trunc(), and SIMoutput::ResultPoint::u.

Referenced by NewmarkSIM::dumpResults().

◆ eval2ndSolution()

bool SIMoutput::eval2ndSolution	(	const Vector &	psol,
		double	time,
		int	psolComps = `0`
	)

Evaluates the secondary solution for a given load/time step.

Parameters

[in]	psol	Primary solution vector
[in]	time	Load/time step parameter
[in]	psolComps	Optional number of primary solution components

This method only evaluates the solutions fields, and does not return any data. It is used only for load/time steps that are not saved when the solution has to be evaluated at every increment in any case to ensure consistency (e.g., when material models with history variables are in use).

References utl::vector< T >::empty(), extractNodeVec(), IntegrandBase::getNoFields(), IntegrandBase::getNoSolutions(), IntegrandBase::getSolution(), initPatchForEvaluation(), IntegrandBase::initResultPoints(), SIMbase::myModel, SIMbase::myProblem, myVtf, SIMoptions::nViz, SIMadmin::opt, and SIMoptions::pSolOnly.

◆ evalResults()

bool SIMoutput::evalResults	(	const Vectors &	psol,
		const ResPointVec &	gPoints,
		const ASMbase *	patch,
		IntVec &	points,
		IntVec &	elms,
		Vec3Vec &	Xp,
		Matrix &	sol1,
		Matrix &	sol2,
		std::vector< std::string > *	compNames = `nullptr`
	)		const

private

Evaluates solution results at specified points for a given patch.

Parameters

[in]	psol	Primary solution vectors to derive other quantities from
[in]	gPoints	Result point definitions
[in]	patch	The patch to evaluate result points for
[out]	points	List of result points within this patch
[out]	elms	List of element center points within this patch
[out]	Xp	Coordinates of result points within this patch
[out]	sol1	Matrix of primary solution values at result points
[out]	sol2	Matrix of secondary solution values at result points
[out]	compNames	Names of solution components in sol1 and sol2

References utl::matrix< T >::augmentCols(), utl::matrix< T >::augmentRows(), SIMoptions::discretization, utl::matrixBase< T >::empty(), ASMbase::empty(), ASMbase::evalSolution(), ASMbase::extractNodalVec(), IntegrandBase::getField1Name(), IntegrandBase::getField2Name(), SAM::getMADOF(), IntegrandBase::getNoFields(), ASMbase::getNoNodes(), ASMbase::getSolution(), IntegrandBase::getSolution(), ASMbase::idx, initPatchForEvaluation(), SIMbase::myProblem, SIMbase::mySam, SIMbase::mySol, SIMadmin::opt, IntegrandBase::primaryScalarFields(), and utl::matrix< T >::rows().

Referenced by dumpResults(), and saveResults().

◆ getElementSet()

bool SIMoutput::getElementSet	(	int	iset,
		std::string &	name,
		RealArray &	elSet
	)		const

Retrieves the specified element set as a scalar field.

Parameters

[in]	iset	1-based index of the element set to retrieve
[out]	name	Name of the retrieved element set
[out]	elSet	1-based element index array indicating the set members

Returns: false if the iset index is out of range, otherwise true

This method returns an array of length equal to the total number of elements in the model, containing either 1.0 or 0.0 depending on whether the element identified by the corresponding array index is in the set iset or not. This array can then be used as a scalar field to visualize the element set, using the writeGlvE() method.

References SIMbase::getNoElms(), and SIMbase::myModel.

Referenced by writeGlvNo().

◆ merge()

bool SIMoutput::merge	(	SIMbase *	that,
		const std::map< int, int > *	old2new,
		int	poff
	)

virtual

Merges the global equation system of that simulator with this.

Parameters

	that	The simulator whose equation system is to be merged
[in]	old2new	Global node number mapping
[in]	poff	Global patch index offset

Reimplemented from SIMbase.

References IFEM::cout, SIMbase::getPatch(), SIMoutput::ResultPoint::inod, SIMbase::merge(), myPoints, and SIMoutput::ResultPoint::patch.

◆ parse() [1/3]

bool SIMinput::parse

Parses a data section from an input stream.

Parameters

[in]	keyWord	Keyword of current data section to read
	is	The file stream to read from

Referenced by SIM1D::parse(), SIM2D::parse(), SIM3D::parse(), and SIMsupel::parse().

◆ parse() [2/3]

bool SIMoutput::parse	(	char *	keyWord,
		std::istream &	is
	)

virtual

Parses a data section from an input stream.

Parameters

[in]	keyWord	Keyword of current data section to read
	is	The file stream to read from

Reimplemented from SIMinput.

Reimplemented in SIM3D, SIM2D, and SIM1D.

References IFEM::cout, myPoints, SIMinput::parse(), SIMoutput::ResultPoint::patch, utl::readLine(), setPointResultFile(), and SIMoutput::ResultPoint::u.

Referenced by NonLinSIM::parse(), AdaptiveSetup::parse(), EigenModeSIM::parse(), and NewmarkSIM::parse().

◆ parse() [3/3]

bool SIMinput::parse

Parses a data section from an XML document.

Parameters

[in] elem The XML element to parse

◆ preprocessResPtGroup()

void SIMoutput::preprocessResPtGroup	(	std::string &	ptFile,
		ResPointVec &	points
	)

private

Preprocesses a result sampling point group.

Parameters

ptFile	Name of file that these result points are dumped to
points	Group of result points that are dumped to the given file

References IFEM::cout, ASMbase::empty(), ASMbase::getElmID(), ASMbase::getNodeID(), SIMbase::getPatch(), logRpMap, SIMadmin::msgLevel, SIMbase::myModel, SIMbase::myProblem, SIMbase::nsd, and ASMbase::printElmInfo().

Referenced by preprocessResultPoints().

◆ savePoints()

bool SIMoutput::savePoints	(	const Vector &	psol,
		double	time,
		int	step
	)		const

Saves point results to output file for a given time step.

Parameters

[in]	psol	Primary solution vector
[in]	time	Load/time step parameter
[in]	step	Load/time step counter

References dumpResults(), utl::vector< T >::empty(), SIMbase::getLocalPatchIndex(), idxGrid, IntegrandBase::initResultPoints(), myPoints, myPrec, SIMbase::myProblem, and SIMoutput::ResultPoint::patch.

Referenced by MultiStepSIM::savePoints(), and AdaptiveSIM::savePoints().

◆ saveResults()

bool SIMoutput::saveResults	(	const Vectors &	psol,
		double	time,
		int	step
	)		const

Saves result components to output files for a given time step.

Parameters

[in]	psol	Primary solution vectors
[in]	time	Load/time step parameter
[in]	step	Load/time step counter

References utl::matrix< T >::augmentRows(), utl::matrix< T >::cols(), utl::matrixBase< T >::empty(), evalResults(), IntegrandBase::getNoSolutions(), idxGrid, IntegrandBase::initResultPoints(), SIMbase::myModel, myPoints, SIMbase::myProblem, utl::matrix< T >::rows(), and wantComps.

◆ setPointResultFile()

void SIMoutput::setPointResultFile	(	const std::string &	filename,
		bool	dumpCoord = `false`
	)

Sets the file name for result point output.

Parameters

[in]	filename	The file name prefix (optionally with extension)
[in]	dumpCoord	If true, write point coordinates to separate file

References IFEM::cout, SIMbase::myPatches, SIMadmin::myPid, myPoints, and SIMadmin::nProc.

Referenced by parse().

◆ writeAddFuncs()

bool SIMoutput::writeAddFuncs	(	int &	nBlock,
		int &	idBlock,
		const Vector &	psol,
		int	iStep,
		double	time
	)

protectedvirtual

Writes out the additional functions to VTF-file.

Parameters

	nBlock	Running result block counter
	idBlock	Running scalar identification block numbering
[in]	psol	Primary solution vector (for state-dependent functions)
[in]	iStep	Load/time step identifier
[in]	time	Load/time step parameter

References utl::vector< T >::empty(), myAddScalars, and writeGlvF().

Referenced by writeGlvS().

◆ writeGlvBC()

bool SIMoutput::writeGlvBC	(	int &	nBlock,
		int	iStep = `1`
	)		const

Writes boundary conditions as scalar fields to the VTF-file.

Parameters

	nBlock	Running result block counter
[in]	iStep	Load/time step identifier

References utl::matrix< T >::cols(), IFEM::cout, SIMoptions::discretization, utl::matrix< T >::getRow(), mergeVtf, SIMadmin::msgLevel, myGeomID, SIMbase::myModel, myVtf, SIMoptions::nViz, SIMadmin::opt, VTF::writeNres(), and VTF::writeSblk().

Referenced by AdaptiveSIM::writeGlv().

◆ writeGlvE()

bool SIMoutput::writeGlvE	(	const Vector &	field,
		int	iStep,
		int &	nBlock,
		const char *	name,
		int	idBlock = `300`,
		bool	internalOrder = `false`
	)		const

Writes element field for a given load/time step to the VTF-file.

Parameters

[in]	field	The element field to output
[in]	iStep	Load/time step identifier
	nBlock	Running result block counter
[in]	name	Name of field
[in]	idBlock	Starting value of result block numbering
[in]	internalOrder	If true, the data in field are assumed to be ordered w.r.t. the internal element ordering

If field is empty, the patch-level external element numbers will instead define the scalar field to be written.

References IFEM::cout, utl::vector< T >::empty(), mergeVtf, SIMadmin::msgLevel, myGeomID, SIMbase::myModel, myVtf, utl::vector< T >::norm2(), VTF::writeEres(), and VTF::writeSblk().

Referenced by writeGlvNo().

◆ writeGlvF()

bool SIMoutput::writeGlvF	(	const RealFunc &	f,
		const char *	fname,
		int	iStep,
		int &	nBlock,
		const Vector *	state = `nullptr`,
		int	idBlock = `50`,
		double	time = `0.0`,
		const ASMbase *	patch = `nullptr`
	)

Writes a scalar function to the VTF-file.

Parameters

[in]	f	The function to output
[in]	fname	Name of the function
[in]	iStep	Load/time step identifier
	nBlock	Running result block counter
[in]	state	Optional state vector (for state-dependent functions)
[in]	idBlock	Starting value of result block numbering
[in]	time	Load/time step parameter
[in]	patch	If specified, only evalulate for this patch

References IFEM::cout, utl::matrix< T >::expandRows(), extractNodeVec(), VTF::getBlock(), Integrand::getIntegrandType(), mergeVtf, SIMadmin::msgLevel, myGeomID, SIMbase::myModel, SIMbase::myProblem, myVtf, SIMoptions::nViz, SIMadmin::opt, Integrand::PIOLA_MAPPING, utl::matrixBase< T >::ptr(), utl::matrix< T >::rows(), VTF::writeNfunc(), and VTF::writeSblk().

Referenced by writeAddFuncs().

◆ writeGlvG() [1/2]

bool SIMoutput::writeGlvG	(	int &	nBlock,
		const char *	inpFile,
		bool	doClear = `true`
	)

virtual

Writes current model geometry to the VTF-file.

Parameters

	nBlock	Running result block counter
[in]	inpFile	File name used to construct the VTF-file name from
[in]	doClear	If true, clear geometry block if inpFile is null

The spline patches are tesselated into linear finite elements with a fixed number of elements within each knot-span of non-zero length. The solution fields are then evaluated at the nodal points of the generated FE mesh and written to the VTF-file as vector and scalar fields by the other writeGlv* methods.

References SIMadmin::adm, IFEM::cout, ProcessAdm::dd, SIMoptions::format, ProcessAdm::getProcId(), DomainDecomposition::isPartitioned(), SIMadmin::myPid, myVtf, SIMadmin::nProc, SIMadmin::opt, and SIMoptions::vtf.

Referenced by AdaptiveSIM::solveStep(), and AdaptiveSIM::writeGlv().

◆ writeGlvG() [2/2]

bool SIMoutput::writeGlvG	(	int &	nBlock,
		double	time
	)

Writes current model geometry to the currently open VTF-file.

Parameters

	nBlock	Running result block counter
[in]	time	The time from which this (new) geometry applies, in case of time-evolution. If negative, the current geometry is appended to the already existing geometry blocks.

When time > 0 and there already exist some geometry blocks in the VTF, this method assumes that the new geometry blocks are based on the same set of nodes such that new node blocks are not required to be written.

References VTF::clearGeometryBlocks(), IFEM::cout, VTF::getBlock(), VTF::getNodeBlock(), ElementBlock::getNoNodes(), ElementBlock::merge(), mergeVtf, SIMadmin::msgLevel, myGeofs1, myGeofs2, SIMbase::myModel, myPoints, myPtSize, SIMinput::myTopPts, myVtf, ElementBlock::removeElement(), tesselatePatch(), VTF::writeGrid(), and SIMoutput::ResultPoint::X.

◆ writeGlvM()

bool SIMoutput::writeGlvM	(	const Mode &	mode,
		bool	freq,
		int &	nBlock
	)

Writes a mode shape to the VTF-file.

Parameters

[in]	mode	The mode shape eigenvector and associated eigenvalue
[in]	freq	true if the eigenvalue is a frequency
	nBlock	Running result block counter

The eigenvalue is used as a label on the step state info.

References IFEM::cout, Mode::eigNo, Mode::eigVal, Mode::eigVec, utl::vector< T >::empty(), extractNodeVec(), mergeVtf, SIMadmin::msgLevel, myGeofs1, myGeofs2, myGeomID, SIMbase::myModel, myVtf, SIMoptions::nViz, SIMadmin::opt, VTF::writeDblk(), VTF::writeState(), and VTF::writeVres().

◆ writeGlvN()

bool SIMoutput::writeGlvN	(	const Matrix &	norms,
		int	iStep,
		int &	nBlock,
		const std::vector< std::string > &	prefix = `{}`,
		int	idBlock = `200`,
		const char *	dualPrefix = `nullptr`
	)

Writes element norms for a given load/time step to the VTF-file.

Parameters

[in]	norms	The element norms to output
[in]	iStep	Load/time step identifier
	nBlock	Running result block counter
[in]	prefix	Prefices for projected solutions
[in]	idBlock	Starting value of result block numbering
[in]	dualPrefix	Prefix for dual solution norms

If dualPrefix is not null, it is assumed that the norms were computed from the dual solution and therefore labelled as such. In addition to the norms, also the SIMbase::dualField function value is written as a scalar field to the VTF-file in that case. This function is then evaluated at the centre of each visualization element since it typically is a discontinuous function.

References utl::matrix< T >::cols(), IFEM::cout, SIMbase::dualField, utl::matrixBase< T >::empty(), utl::matrix< T >::fillColumn(), VTF::getBlock(), ElementBlock::getCenter(), utl::matrix< T >::getColumn(), ElementBlock::getElmId(), NormBase::getName(), ElementBlock::getNoElms(), NormBase::getNoFields(), IntegrandBase::getNormIntegrand(), utl::matrix< T >::getRow(), FunctionBase::getScalarValue(), NormBase::hasElementContributions(), FunctionBase::initPatch(), mergeVtf, SIMadmin::msgLevel, myGeomID, SIMbase::myModel, SIMbase::myProblem, SIMbase::mySol, myVtf, utl::matrix< T >::resize(), utl::matrix< T >::rows(), VTF::writeEres(), and VTF::writeSblk().

Referenced by AdaptiveSIM::writeGlv().

◆ writeGlvNo()

bool SIMoutput::writeGlvNo	(	int &	nBlock,
		int &	idBlock,
		int	maxBlock = `20`,
		int	iStep = `1`
	)		const

Writes global node numbers as scalar fields to the VTF-file.

Parameters

	nBlock	Running result block counter
	idBlock	Result block ID number
[in]	maxBlock	Highest block ID number
[in]	iStep	Load/time step identifier

If you have a complex model with lots of nodal points, this might be used as a tool to identify the location of the nodes by visualizing their global number and the original node numbers.

References utl::vector< T >::begin(), utl::vector< T >::clear(), utl::vector< T >::end(), utl::vector< T >::fill(), getElementSet(), SIMbase::getNoElms(), SIMbase::getNoNodes(), SIMbase::myDegenElm, SIMbase::myDupNodes, SIMbase::myLoc2Glb, utl::vector< T >::push_back(), writeGlvE(), and writeGlvS().

◆ writeGlvP()

bool SIMoutput::writeGlvP	(	const RealArray &	ssol,
		int	iStep,
		int &	nBlock,
		int	idBlock = `100`,
		const char *	prefix = `"Global projected"`,
		std::vector< PointValues > *	maxVal = `nullptr`
	)

Writes projected solutions for a given time step to the VTF-file.

Parameters

[in]	ssol	Secondary solution vector (control point values)
[in]	iStep	Load/time step identifier
	nBlock	Running result block counter
[in]	idBlock	Starting value of result block numbering
[in]	prefix	Common prefix for the field components
[in]	maxVal	Optional array of maximum values

If iStep is zero (or negative), this method only evaluates the projected solution at the visualization points and updates the maxVal array, without writing data to the VTF-file.

References utl::vector< T >::begin(), IFEM::cout, SIMbase::extractPatchSolution(), SIMbase::fieldProjections(), VTF::getBlock(), ElementBlock::getCoord(), IntegrandBase::getField2Name(), IntegrandBase::getNoFields(), SIMbase::getNoNodes(), utl::matrix< T >::getRow(), mergeVtf, SIMadmin::msgLevel, myGeomID, SIMbase::myModel, SIMbase::myProblem, myVtf, SIMoptions::nViz, SIMadmin::opt, utl::matrix< T >::rows(), VTF::writeSblk(), and writeScalarFields().

Referenced by AdaptiveSIM::writeGlv().

◆ writeGlvS() [1/2]

bool SIMoutput::writeGlvS	(	const Vector &	psol,
		int	iStep,
		int &	nBlock,
		double	time = `0.0`,
		const char *	pvecName = `nullptr`,
		int	idBlock = `10`,
		int	psolComps = `0`
	)

Writes solution fields for a given load/time step to the VTF-file.

Parameters

[in]	psol	Primary solution vector
[in]	iStep	Load/time step identifier
	nBlock	Running result block counter
[in]	time	Load/time step parameter
[in]	pvecName	Optional name of the primary vector field solution
[in]	idBlock	Starting value of result block numbering
[in]	psolComps	Optional number of primary solution components

References writeAddFuncs(), writeGlvS1(), and writeGlvS2().

◆ writeGlvS() [2/2]

bool SIMoutput::writeGlvS	(	const Vector &	scl,
		const char *	fieldName,
		int	iStep,
		int &	nBlock,
		int	idBlock = `2`
	)		const

Writes a scalar field for a given load/time step to the VTF-file.

Parameters

[in]	scl	The scalar field to output (nodal values)
[in]	fieldName	Name identifying the scalar field
[in]	iStep	Load/time step identifier
	nBlock	Running result block counter
[in]	idBlock	Result block ID number

This method assumes the scalar field is attached to the first basis if we are using a mixed basis.

References IFEM::cout, utl::vector< T >::empty(), SIMbase::extractPatchSolution(), Integrand::getIntegrandType(), SIMbase::getNoNodes(), mergeVtf, SIMadmin::msgLevel, myGeomID, SIMbase::myModel, SIMbase::myProblem, myVtf, SIMoptions::nViz, SIMadmin::opt, Integrand::PIOLA_MAPPING, utl::vector< T >::size(), VTF::writeNres(), and VTF::writeSblk().

Referenced by MultiStepSIM::saveStep(), AdaptiveSIM::writeGlv(), and writeGlvNo().

◆ writeGlvS1()

int SIMoutput::writeGlvS1	(	const Vector &	psol,
		int	iStep,
		int &	nBlock,
		double	time = `0.0`,
		const char *	pvecName = `nullptr`,
		int	idBlock = `10`,
		int	psolComps = `0`,
		bool	scalarOnly = `false`
	)

virtual

Writes primary solution for a given load/time step to the VTF-file.

Parameters

[in]	psol	Primary solution vector
[in]	iStep	Load/time step identifier
	nBlock	Running result block counter
[in]	time	Load/time step parameter
[in]	pvecName	Optional name of the primary vector field solution
[in]	idBlock	Starting value of result block numbering
[in]	psolComps	Optional number of primary solution components
[in]	scalarOnly	If true, write vector as scalar components only

This method writes only the primary solution field to the VTF-file. If analytical solution fields are available, those fields are written as well.

The way the solution is written depends on whether it is a scalar or vector field, and on the input parameters pvecName and psolComps, as follows:

If the primary solution is a vector field, it is written as a deformation (labelled "Solution") if pvecName is null or psolComps is negative, otherwise it is written as a named vector field (no deformation plot).
If the primary solution is a scalar field and pvecName is null, the field value is interpreted as a deformation along the global Z-axis. Otherwise, or if psolComps is greater than 10, the scalar field is also written out as a vector field with its scalar value as the Z-axis component.
If the primary solution is a vector field, each vector component is in addition written as a scalar field. If scalarOnly is true, it is only written as scalar field components (no deformation or vector field output).

The scalar field components are labelled pvecName_(i) where (i) is in (x,y,z,rx,ry,rz), if pvecName is not null and psolComps is positive or the myProblem member is null. Otherwise, their names are obtained by invoking the method IntegrandBase::getField1Name() of the myProblem member prefixed by pVecName, if the latter is not null and psolComps is negative.

References addDisBlk, utl::matrix< T >::augmentCols(), ElementBlock::begin_XYZ(), IFEM::cout, FunctionBase::dim(), utl::vector< T >::empty(), utl::matrixBase< T >::empty(), ElementBlock::end_XYZ(), extractNodeVec(), utl::matrix< T >::fill(), utl::matrix< T >::fillColumn(), VTF::getBlock(), IntegrandBase::getField1Name(), Integrand::getIntegrandType(), SIMbase::getNoFields(), IntegrandBase::getNoFields(), SIMbase::getNoSpaceDim(), ElementBlock::getParam(), AnaSol::getScalarSol(), AnaSol::getVectorSol(), AnaSol::initPatch(), mergeVtf, SIMadmin::msgLevel, myGeofs1, myGeofs2, myGeomID, SIMbase::myModel, SIMbase::myProblem, SIMbase::mySol, myVtf, SIMoptions::nViz, SIMadmin::opt, Integrand::PIOLA_MAPPING, IntegrandBase::primaryScalarFields(), utl::matrix< T >::rows(), VTF::writeDblk(), VTF::writeSblk(), writeScalarFields(), VTF::writeVblk(), and VTF::writeVres().

Referenced by NewmarkSIM::saveStep(), AdaptiveSIM::writeGlv(), and writeGlvS().

◆ writeGlvS2()

int SIMoutput::writeGlvS2	(	const Vector &	psol,
		int	iStep,
		int &	nBlock,
		double	time = `0.0`,
		int	idBlock = `20`,
		int	psolComps = `0`
	)

virtual

Writes secondary solution for a load/time step to the VTF-file.

Parameters

[in]	psol	Primary solution vector
[in]	iStep	Load/time step identifier
	nBlock	Running result block counter
[in]	time	Load/time step parameter
[in]	idBlock	Starting value of result block numbering
[in]	psolComps	Optional number of primary solution components

This method writes only the secondary solution fields to the VTF-file. If analytical solution fields are available, those fields are written as well.

References utl::matrix< T >::augmentCols(), ElementBlock::begin_XYZ(), IFEM::cout, SIMoptions::discretization, utl::vector< T >::empty(), utl::matrixBase< T >::empty(), ElementBlock::end_XYZ(), IntegrandBase::evalSol(), extractNodeVec(), VTF::getBlock(), IntegrandBase::getField2Name(), SIMbase::getNoFields(), IntegrandBase::getNoFields(), IntegrandBase::getNoSolutions(), ElementBlock::getParam(), IntegrandBase::getPrincipalDir(), AnaSol::getScalarSecSol(), IntegrandBase::getSolution(), AnaSol::getStressSol(), AnaSol::getVectorSecSol(), AnaSol::hasScalarSol(), AnaSol::hasVectorSol(), AnaSol::initPatch(), initPatchForEvaluation(), IntegrandBase::initResultPoints(), mergeVtf, SIMadmin::msgLevel, myGeomID, SIMbase::myModel, SIMbase::myProblem, SIMbase::mySol, myVtf, SIMoptions::nViz, SIMadmin::opt, SIMoptions::project, SIMoptions::pSolOnly, VTF::writeSblk(), writeScalarFields(), VTF::writeVblk(), and VTF::writeVres().

Referenced by writeGlvS().

◆ writeGlvStep()

bool SIMoutput::writeGlvStep	(	int	iStep,
		double	value = `0.0`,
		int	itype = `0`
	)

Writes load/time step info to the VTF-file.

Parameters

[in]	iStep	Load/time step identifier
[in]	value	Load parameter or time of the step
[in]	itype	Type identifier of the step

References myVtf, VTF::writeGeometryBlocks(), and VTF::writeState().

Referenced by MultiStepSIM::saveStep(), AdaptiveSIM::solveStep(), and AdaptiveSIM::writeGlv().

◆ writeGlvT()

bool SIMoutput::writeGlvT	(	int	iStep,
		int &	geoBlk,
		int &	nBlock
	)		const

Writes boundary tractions for a given time step to the VTF-file.

Parameters

[in]	iStep	Load/time step identifier
	geoBlk	Running geometry block counter
	nBlock	Running result block counter

References IFEM::cout, IntegrandBase::hasTractionValues(), SIMadmin::msgLevel, SIMbase::myProblem, myVtf, and IntegrandBase::writeGlvT().

Referenced by MultiStepSIM::saveStep(), and AdaptiveSIM::writeGlv().

◆ writeGlvV()

bool SIMoutput::writeGlvV	(	const RealArray &	vec,
		const char *	fieldName,
		int	iStep,
		int &	nBlock,
		int	idBlock = `2`,
		int	ncmp = `0`
	)		const

Writes a vector field for a given load/time step to the VTF-file.

Parameters

[in]	vec	The vector field to output (nodal values in DOF-order)
[in]	fieldName	Name identifying the vector field
[in]	iStep	Load/time step identifier
	nBlock	Running result block counter
[in]	idBlock	Result block ID number
[in]	ncmp	Number of components in vector field

References IFEM::cout, extractNodeVec(), mergeVtf, SIMadmin::msgLevel, myGeomID, SIMbase::myModel, myVtf, SIMoptions::nViz, SIMadmin::opt, VTF::writeVblk(), and VTF::writeVres().

Referenced by MultiStepSIM::saveStep().

The documentation for this class was generated from the following files:

src/SIM/SIMoutput.h
src/SIM/SIMoutput.C

Classes

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ addAddFunc()

◆ dumpGeometry()

◆ dumpMatlabGrid()

◆ dumpPrimSol()

◆ dumpResults() [1/2]

◆ dumpResults() [2/2]

◆ dumpSolution()

◆ dumpVector()

◆ eval2ndSolution()

◆ evalResults()

◆ getElementSet()

◆ merge()

◆ parse() [1/3]

◆ parse() [2/3]

◆ parse() [3/3]

◆ preprocessResPtGroup()

◆ savePoints()

◆ saveResults()

◆ setPointResultFile()

◆ writeAddFuncs()

◆ writeGlvBC()

◆ writeGlvE()

◆ writeGlvF()

◆ writeGlvG() [1/2]

◆ writeGlvG() [2/2]

◆ writeGlvM()

◆ writeGlvN()

◆ writeGlvNo()

◆ writeGlvP()

◆ writeGlvS() [1/2]

◆ writeGlvS() [2/2]

◆ writeGlvS1()

◆ writeGlvS2()

◆ writeGlvStep()

◆ writeGlvT()

◆ writeGlvV()
