Adaptive solution setup for linear and nonlinear FEM simulators. More...

#include <AdaptiveSetup.h>

Inheritance diagram for AdaptiveSetup:

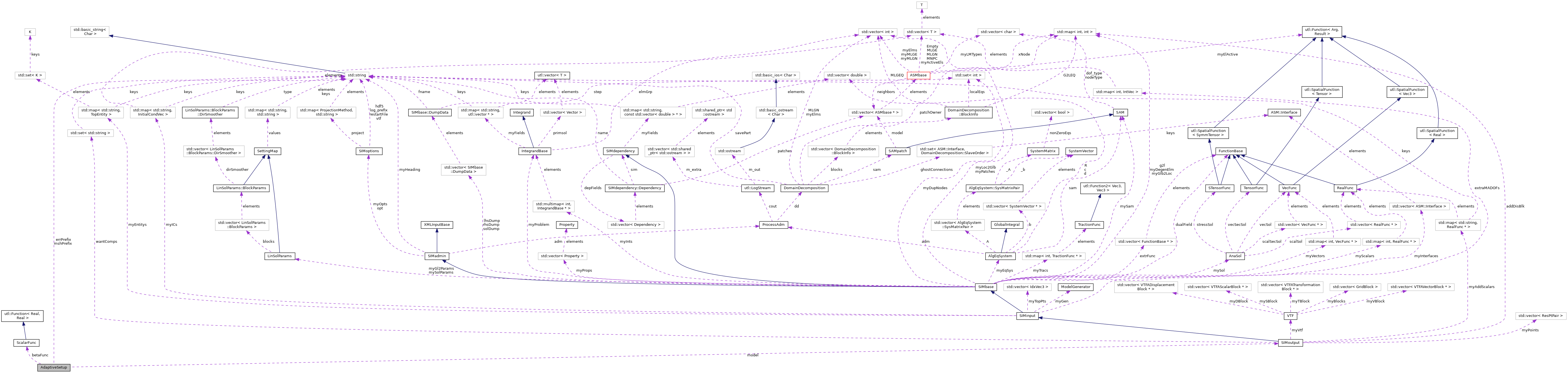

Collaboration diagram for AdaptiveSetup:

[legend]

Public Member Functions
	AdaptiveSetup (SIMoutput &sim, bool sa=true)
	The constructor initializes default adaptation parameters. More...

virtual	~AdaptiveSetup ()
	Empty destructor.

void	setAdaptationNorm (size_t g, size_t i=0)
	Sets the norm group/index of the norm to base mesh adaptation on.

bool	initPrm (size_t normGroup)
	Initializes the norm group parameters. More...

int	calcRefinement (LR::RefineData &prm, int iStep, const Vectors &gNorm, const Vector &refIn, int currDofs=-1) const
	Calculates mesh refinement control data based on error estimates. More...

bool	parse (char *keyWord, std::istream &is)
	Parses a data section from an input stream. More...

bool	parse (const tinyxml2::XMLElement *elem)
	Parses a data section from an XML document. More...

void	printNorms (const Vectors &gNorm, const Vectors &dNorm, const Matrix &eNorm, size_t w=36, bool printModelNorms=true) const
	Prints out global norms to the log stream. More...

bool	writeMesh (int iStep) const
	Dumps current mesh to external file(s) for inspection. More...

size_t	eIdx () const
	Returns the row-index of the element norm to use for adaptation.

Protected Attributes
SIMoutput &	model
	The isogeometric FE model.

size_t	adaptor
	Norm group to base the mesh adaptation on.

size_t	adNorm
	Which norm to base the mesh adaptation on.

size_t	eRow
	Row-index in eNorm of the norm to use for adaptation.

double	rCond
	Actual reciprocal condition number of the last mesh.

Private Types
enum	Threshold { NONE =0 , MAXIMUM , AVERAGE , MINIMUM , TRUE_BETA , DORFEL , SYMMETRIZED }
	Enum defining the refinement threshold flag values.

enum	RefScheme { FULLSPAN =0 , MINSPAN =1 , ISOTROPIC_FUNCTION =2 , ISOTROPIC_ELEMENT =3 }
	Enum defining available refinement scheme options.

Private Attributes
bool	alone
	If false, this class is wrapped by SIMSolver.

bool	linIndep
	Test mesh for linear independence after refinement.

double	beta
	Refinement percentage in each step.

ScalarFunc *	betaFunc
	Beta as a function.

double	errTol
	Global error stop tolerance.

double	condLimit
	Upper limit on condition number.

int	maxStep
	Maximum number of adaptive refinements.

int	maxDOFs
	Maximum number of degrees of freedom.

int	knot_mult
	Knotline multiplicity.

int	maxTjoints
	Maximum number of hanging nodes on one element.

double	maxAspect
	Maximum element aspect ratio.

bool	closeGaps
	Split elements with a hanging node on each side.

double	symmEps
	Epsilon used for symmetrized selection method.

Threshold	threshold
	Flag for how to interpret the parameter beta.

RefScheme	scheme
	The actual refinement scheme to use.

int	storeMesh
	Flag telling what kind of mesh output we want.

std::string	mshPrefix
	Prefix for output files with refined meshes.

std::string	errPrefix
	Prefix for text files with refinement indicators.

Detailed Description

Adaptive solution setup for linear and nonlinear FEM simulators.

This class contains parameters for controlling the mesh refinement in an adaptive simulation procedure, with methods for parsing the parameters from the input file and to calculate the actual refinement indicators to be passed to the LR-spline based mesh refinement methods. It also has methods for printing out the global error norms that are used in the mesh-refinement calculation, and for dumping the refined meshes to files in different formats.

Constructor & Destructor Documentation

◆ AdaptiveSetup()

AdaptiveSetup::AdaptiveSetup	(	SIMoutput &	sim,
		bool	sa = `true`
	)

explicit

The constructor initializes default adaptation parameters.

Parameters

	sim	The FE model
[in]	sa	If true, this is a stand-alone driver

References adaptor, adNorm, beta, betaFunc, closeGaps, condLimit, eRow, errTol, knot_mult, linIndep, maxAspect, maxDOFs, maxStep, maxTjoints, rCond, scheme, storeMesh, symmEps, and threshold.

Member Function Documentation

◆ calcRefinement()

int AdaptiveSetup::calcRefinement	(	LR::RefineData &	prm,
		int	iStep,
		const Vectors &	gNorm,
		const Vector &	refIn,
		int	currDofs = `-1`
	)		const

Calculates mesh refinement control data based on error estimates.

Parameters

[out]	prm	Mesh refinement control data
[in]	iStep	Refinement step counter
[in]	gNorm	Global norms
[in]	refIn	Element refinement indicators (element error norms)
[in]	currDofs	Current number of model DOFs. -1 to use SIMbase::getNoDOFs()

Returns: Number of elements to be refined; If zero, no refinement needed; Negative value on error

References adaptor, adNorm, beta, betaFunc, GlobalNodes::calcGlobalNodes(), LR::RefineData::clear(), closeGaps, condLimit, IFEM::cout, LR::RefineData::elements, utl::vector< T >::empty(), epsZ, error(), LR::RefineData::errors, errPrefix, errTol, SIMbase::getFEModel(), SIMinput::getInterfaces(), SIMbase::getNoDOFs(), SIMbase::getNoPatches(), ASMbase::getNoRefineElms(), ASMbase::getNoRefineNodes(), SIMbase::getPatch(), SIMoutput::getReferenceNorm(), ASMLRSpline::getRefinementBasis(), SIMbase::haveAnaSol(), knot_mult, linIndep, maxAspect, maxDOFs, maxStep, maxTjoints, LR::RefineData::MLGN, model, LR::RefineData::options, rCond, scheme, utl::vector< T >::size(), symmEps, and threshold.

Referenced by AdaptiveSIM::adaptMesh().

◆ initPrm()

bool AdaptiveSetup::initPrm ( size_t normGroup )

Initializes the norm group parameters.

Parameters

[in] normGroup Index to the norm group to base mesh adaptation on

References adaptor, adNorm, IFEM::cout, eRow, NormBase::getNoFields(), SIMbase::getNormIntegrand(), SIMbase::haveAnaSol(), model, SIMadmin::opt, and SIMoptions::project.

Referenced by AdaptiveSIM::initAdaptor().

◆ parse() [1/2]

bool AdaptiveSetup::parse	(	char *	keyWord,
		std::istream &	is
	)

Parses a data section from an input stream.

Parameters

[in]	keyWord	Keyword of current data section to read
	is	The file stream to read from

References beta, errTol, knot_mult, maxDOFs, maxStep, model, SIMoutput::parse(), utl::readLine(), and scheme.

Referenced by AdaptiveSIM::parse().

◆ parse() [2/2]

bool AdaptiveSetup::parse ( const tinyxml2::XMLElement * elem )

Parses a data section from an XML document.

Parameters

[in] elem The XML element to parse

References adaptor, adNorm, alone, beta, betaFunc, closeGaps, condLimit, IFEM::cout, errPrefix, errTol, utl::getAttribute(), utl::getValue(), knot_mult, linIndep, maxAspect, maxDOFs, maxStep, maxTjoints, model, mshPrefix, SIMoutput::parse(), utl::parseTimeFunc(), scheme, storeMesh, symmEps, and threshold.

◆ printNorms()

void AdaptiveSetup::printNorms	(	const Vectors &	gNorm,
		const Vectors &	dNorm,
		const Matrix &	eNorm,
		size_t	w = `36`,
		bool	printModelNorms = `true`
	)		const

Prints out global norms to the log stream.

Parameters

[in]	gNorm	Global norms
[in]	dNorm	Global dual norms
[in]	eNorm	Element norms
[in]	w	Field width for global norm labels
[in]	printModelNorms	True to print norms for model
