Class for output of FE model and results to VTF file. More...

#include <VTF.h>

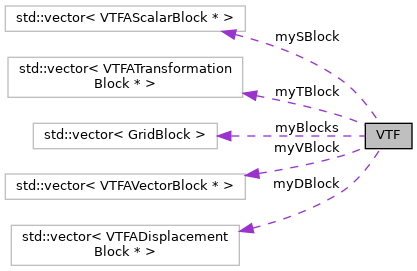

Collaboration diagram for VTF:

[legend]

Public Member Functions
	VTF (const char *filename, int type)
	The constructor opens a new VTF-file. More...

	VTF (const VTF &)=delete
	No copying of this class.

	~VTF ()
	The destructor finalizes and closes the VTF-file.

bool	writeGrid (const ElementBlock block, const char gName, int elemID, int nodeID=0)
	Writes the FE geometry to the VTF-file. More...

bool	writeTransformation (const Vec3 &X, const Tensor &T, int idBlock=1, int gID=1)
	Writes a transformation matrix to the VTF-file. More...

bool	writeNres (const std::vector< Real > &nodalResult, int idBlock=1, int geomID=1)
	Writes a block of scalar nodal results to the VTF-file. More...

bool	writeEres (const std::vector< Real > &elementResult, int idBlock=1, int geomID=1)
	Writes a block of scalar element results to the VTF-file. More...

bool	writeVres (const std::vector< Real > &nodeResult, int idBlock=1, int geomID=1, size_t nvc=0)
	Writes a block of vector nodal results to the VTF-file. More...

bool	writeNfunc (const RealFunc &f, const Real *u=nullptr, Real time=Real(0), int idBlock=1, int gID=1)
	Writes a block of scalar nodal function values to the VTF-file. More...

bool	writeVectors (const std::vector< Vec3Pair > &pntResult, int &gID, int idBlock=1, const char *resultName=nullptr, int iStep=0, int iBlock=1)
	Writes a block of point vector results to the VTF-file. More...

bool	writePoints (const std::vector< Vec3 > &points, int &gID)
	Writes a block of points (no results) to the VTF-file. More...

bool	writeSblk (int sBlockID, const char *resultName=nullptr, int idBlock=1, int iStep=1, bool elementData=false)
	Writes a scalar block definition to the VTF-file. More...

bool	writeSblk (const std::vector< int > &sBlockIDs, const char *resultName=nullptr, int idBlock=1, int iStep=1, bool elementData=false)
	Writes a scalar block definition to the VTF-file. More...

bool	writeVblk (int vBlockID, const char *resultName=nullptr, int idBlock=1, int iStep=1)
	Writes a vector block definition to the VTF-file. More...

bool	writeVblk (const std::vector< int > &vBlockIDs, const char *resultName=nullptr, int idBlock=1, int iStep=1)
	Writes a vector block definition to the VTF-file. More...

bool	writeDblk (const std::vector< int > &dBlockIDs, const char *resultName=nullptr, int idBlock=1, int iStep=1)
	Writes a displacement block definition to the VTF-file. More...

bool	writeTblk (const std::vector< int > &tBlockIDs, const char *resultName=nullptr, int idBlock=1, int iStep=1)
	Writes a transformation block definition to the VTF-file. More...

bool	writeState (int iStep, const char *fmt, Real refValue, int refType=0)
	Writes a state info block to the VTF-file. More...

const ElementBlock *	getBlock (int geomID) const
	Returns the pointer to a geometry block.

int	getNodeBlock (int geomID) const
	Returns the node block ID associated with a geometry block.

void	writeGeometryBlocks (int iStep)
	Adds the current FE geometry blocks to the description block.

void	clearGeometryBlocks ()
	Drops the current FE geometry blocks.

Static Public Attributes
static Real	vecOffset [3] = { 0.0, 0.0, 0.0 }
	Optional offset for vector attack points.

Private Member Functions
bool	writeNodes (int iBlockID)
	Writes a node block to the VTF-file. More...

bool	writeElements (const char *partName, int partID, int iBlockID, int iNodeBlockID)
	Writes an element block to the VTF-file. More...

Private Attributes
VTFAFile *	myFile
	Pointer to the actual VTF-file being written.

VTFAStateInfoBlock *	myState
	The state info block for this file.

VTFAGeometryBlock *	myGBlock
	The geometry description block for this file.

std::vector< VTFATransformationBlock * >	myTBlock
	Transformation blocks.

std::vector< VTFADisplacementBlock * >	myDBlock
	Displacement blocks.

std::vector< VTFAVectorBlock * >	myVBlock
	Vector field blocks.

std::vector< VTFAScalarBlock * >	mySBlock
	Scalar field blocks.

int	myPartID
	Internal geometry block part ID.

int	pointGeoID
	ID of point vector geometry block.

int	lastStep
	ID of the last state written to file.

std::vector< GridBlock >	myBlocks
	The FE geometry of the whole model.

Detailed Description

Class for output of FE model and results to VTF file.

Constructor & Destructor Documentation

◆ VTF()

VTF::VTF	(	const char *	filename,
		int	type
	)

The constructor opens a new VTF-file.

Parameters

[in]	filename	Name of the VTF-file
[in]	type	File type (0 = ASCII, 1 = BINARY)

References lastStep, myFile, myGBlock, myPartID, myState, pointGeoID, showError(), and VTFA_FAILURE.

Member Function Documentation

◆ writeDblk()

bool VTF::writeDblk	(	const std::vector< int > &	dBlockIDs,
		const char *	resultName = `nullptr`,
		int	idBlock = `1`,
		int	iStep = `1`
	)

Writes a displacement block definition to the VTF-file.

Parameters

[in]	dBlockIDs	All result blocks that make up the displacement block
[in]	resultName	Name of the result quantity
[in]	idBlock	Displacement block identifier
[in]	iStep	Load/Time step identifier

References myDBlock, showError(), VTFA_FAILURE, and VTFA_SUCCESS.

Referenced by SIMoutput::writeGlvM(), and SIMoutput::writeGlvS1().

◆ writeElements()

bool VTF::writeElements	(	const char *	partName,
		int	partID,
		int	iBlockID,
		int	iNodeBlockID
	)

private

Writes an element block to the VTF-file.

The element topology of the last added element block is written.

Parameters

[in]	partName	Name used to identify the part in GLview
[in]	partID	Part identifier
[in]	iBlockID	Element block identifier
[in]	iNodeBlockID	Node block which the element block refers to

References ElementBlock::getElements(), ElementBlock::getNoElmNodes(), ElementBlock::getNoElms(), myBlocks, myFile, VTFA_FAILURE, and VTFA_SUCCESS.

Referenced by writeGrid().

◆ writeEres()

bool VTF::writeEres	(	const std::vector< Real > &	elementResult,
		int	idBlock = `1`,
		int	geomID = `1`
	)

Writes a block of scalar element results to the VTF-file.

Parameters

[in]	elementResult	Vector of element results (one per element) length must equal the number of elements in the geometry block
[in]	idBlock	Result block identifier
[in]	geomID	Geometry block identifier

If elementResult is empty, the external element numbers will instead define the scalar field to be written.

References getBlock(), ElementBlock::getElmId(), ElementBlock::getElmIndex(), ElementBlock::getNoElms(), myBlocks, myFile, showError(), and VTFA_FAILURE.

Referenced by SIMoutput::writeGlvE(), and SIMoutput::writeGlvN().

◆ writeGrid()

bool VTF::writeGrid	(	const ElementBlock *	block,
		const char *	gName,
		int	elemID,
		int	nodeID = `0`
	)

Writes the FE geometry to the VTF-file.

Parameters

[in]	block	The FE grid that all results written are referred to
[in]	gName	Name of the geometry being written
[in]	elemID	Element block identifier
[in]	nodeID	Optional node block identifier (equal to elemID if 0)

References myBlocks, myFile, myPartID, showError(), writeElements(), and writeNodes().

Referenced by SIMoutput::writeGlvG().

◆ writeNfunc()

bool VTF::writeNfunc	(	const RealFunc &	f,
		const Real *	u = `nullptr`,
		Real	time = `Real(0)`,
		int	idBlock = `1`,
		int	gID = `1`
	)

Writes a block of scalar nodal function values to the VTF-file.

Parameters

[in]	f	The scalar function to evaluate at the grid points
[in]	u	Pointer to array of solution state values
[in]	time	Current time
[in]	idBlock	Result block identifier
[in]	gID	Geometry block identifier

References getBlock(), ElementBlock::getCoord(), ElementBlock::getNoNodes(), ElementBlock::getParam(), myBlocks, myFile, showError(), and VTFA_FAILURE.

Referenced by SIMoutput::writeGlvF().

◆ writeNodes()

bool VTF::writeNodes ( int iBlockID )

private

Writes a node block to the VTF-file.

The coordinates of the last added element block are written.

Parameters

[in] iBlockID Node block identifier

References ElementBlock::begin_XYZ(), ElementBlock::end_XYZ(), ElementBlock::getNoNodes(), myBlocks, myFile, and VTFA_FAILURE.

Referenced by writeGrid().

◆ writeNres()

bool VTF::writeNres	(	const std::vector< Real > &	nodalResult,
		int	idBlock = `1`,
		int	geomID = `1`
	)

Writes a block of scalar nodal results to the VTF-file.

Parameters

[in]	nodalResult	Vector of nodal results, length must equal the number of nodes in the geometry block
[in]	idBlock	Result block identifier
[in]	geomID	Geometry block identifier

References getBlock(), ElementBlock::getNoNodes(), myBlocks, myFile, showError(), and VTFA_FAILURE.

Referenced by SIMoutput::writeGlvBC(), SIMoutput::writeGlvS(), and SIMoutput::writeScalarFields().

◆ writePoints()

bool VTF::writePoints	(	const std::vector< Vec3 > &	points,
		int &	gID
	)

Writes a block of points (no results) to the VTF-file.

Parameters

[in]	points	Vector of point coordinates
	gID	Running geometry block identifier

References myBlocks, myFile, myPartID, showError(), vecOffset, and VTFA_FAILURE.

Referenced by writeVectors().

◆ writeSblk() [1/2]

bool VTF::writeSblk	(	const std::vector< int > &	sBlockIDs,
		const char *	resultName = `nullptr`,
		int	idBlock = `1`,
		int	iStep = `1`,
		bool	elementData = `false`
	)

Writes a scalar block definition to the VTF-file.

Parameters

[in]	sBlockIDs	All result blocks that make up this scalar block
[in]	resultName	Name of the result quantity
[in]	idBlock	Scalar block identifier
[in]	iStep	Load/Time step identifier
[in]	elementData	false -> data per node, true -> data per element

References mySBlock, showError(), VTFA_FAILURE, and VTFA_SUCCESS.

◆ writeSblk() [2/2]

bool VTF::writeSblk	(	int	sBlockID,
		const char *	resultName = `nullptr`,
		int	idBlock = `1`,
		int	iStep = `1`,
		bool	elementData = `false`
	)

Writes a scalar block definition to the VTF-file.

Parameters

[in]	sBlockID	The result block that makes up this scalar block
[in]	resultName	Name of the result quantity
[in]	idBlock	Scalar block identifier
[in]	iStep	Load/Time step identifier
[in]	elementData	false -> data per node, true -> data per element

References mySBlock, showError(), and VTFA_FAILURE.

Referenced by SIMoutput::writeGlvBC(), SIMoutput::writeGlvE(), SIMoutput::writeGlvF(), SIMoutput::writeGlvN(), SIMoutput::writeGlvP(), SIMoutput::writeGlvS(), SIMoutput::writeGlvS1(), and SIMoutput::writeGlvS2().

◆ writeState()

bool VTF::writeState	(	int	iStep,
		const char *	fmt,
		Real	refValue,
		int	refType = `0`
	)

Writes a state info block to the VTF-file.

Parameters

[in]	iStep	Load/Time step identifier
[in]	fmt	Format string for step name
[in]	refValue	Reference value for the step (time, frequency, etc.)
[in]	refType	Reference value type (0=Time, 1=Frequency, 2=Load case)

References lastStep, myState, showError(), and VTFA_FAILURE.

Referenced by SIMoutput::writeGlvM(), and SIMoutput::writeGlvStep().

◆ writeTblk()

bool VTF::writeTblk	(	const std::vector< int > &	tBlockIDs,
		const char *	resultName = `nullptr`,
		int	idBlock = `1`,
		int	iStep = `1`
	)

Writes a transformation block definition to the VTF-file.

Parameters

[in]	tBlockIDs	All result blocks that make the transformation block
[in]	resultName	Name of the result quantity
[in]	idBlock	Transformation block identifier
[in]	iStep	Load/Time step identifier

References myTBlock, showError(), VTFA_FAILURE, and VTFA_SUCCESS.

◆ writeTransformation()

bool VTF::writeTransformation	(	const Vec3 &	X,
		const Tensor &	T,
		int	idBlock = `1`,
		int	gID = `1`
	)

Writes a transformation matrix to the VTF-file.

Parameters

[in]	X	Position part of the transformation
[in]	T	Orientation part of the transformation
[in]	idBlock	Result block identifier
[in]	gID	Geometry block identifier

References getBlock(), myBlocks, myFile, showError(), and VTFA_FAILURE.

◆ writeVblk() [1/2]

bool VTF::writeVblk	(	const std::vector< int > &	vBlockIDs,
		const char *	resultName = `nullptr`,
		int	idBlock = `1`,
		int	iStep = `1`
	)

Writes a vector block definition to the VTF-file.

Parameters

[in]	vBlockIDs	All result blocks that make up this vector block
[in]	resultName	Name of the result quantity
[in]	idBlock	Vector block identifier
[in]	iStep	Load/Time step identifier

References myVBlock, showError(), VTFA_FAILURE, and VTFA_SUCCESS.

◆ writeVblk() [2/2]

bool VTF::writeVblk	(	int	vBlockID,
		const char *	resultName = `nullptr`,
		int	idBlock = `1`,
		int	iStep = `1`
	)

Writes a vector block definition to the VTF-file.

Parameters

[in]	vBlockID	The result block that makes up this vector block
[in]	resultName	Name of the result quantity
[in]	idBlock	Vector block identifier
[in]	iStep	Load/Time step identifier

References myVBlock, showError(), and VTFA_FAILURE.

Referenced by SIMoutput::writeGlvS1(), SIMoutput::writeGlvS2(), SIMoutput::writeGlvV(), and writeVectors().

◆ writeVectors()

bool VTF::writeVectors	(	const std::vector< Vec3Pair > &	pntResult,
		int &	gID,
		int	idBlock = `1`,
		const char *	resultName = `nullptr`,
		int	iStep = `0`,
		int	iBlock = `1`
	)

Writes a block of point vector results to the VTF-file.

Parameters

[in]	pntResult	A set of result vectors with associated attack points
	gID	Running geometry block identifier
[in]	idBlock	Result block identifier
[in]	resultName	Name of the result quantity
[in]	iStep	Load/Time step identifier
[in]	iBlock	Vector block identifier

This method creates a separate geometry block consisting of the attack points of the result vectors, since they are independent of the FE geometry created by the writeGrid() method.

References myBlocks, myFile, myPartID, pointGeoID, showError(), vecOffset, VTFA_FAILURE, writePoints(), and writeVblk().

◆ writeVres()

bool VTF::writeVres	(	const std::vector< Real > &	nodeResult,
		int	idBlock = `1`,
		int	geomID = `1`,
		size_t	nvc = `0`
	)

Writes a block of vector nodal results to the VTF-file.

Parameters

[in]	nodeResult	Vector of nodal results, length must be equal the number of nodes in the geometry block times 1...5
[in]	idBlock	Result block identifier
[in]	geomID	Geometry block identifier
[in]	nvc	Number of components per node in nodeResult

References getBlock(), ElementBlock::getNoNodes(), myBlocks, myFile, showError(), and VTFA_FAILURE.

Referenced by SIMoutput::writeGlvM(), SIMoutput::writeGlvS1(), SIMoutput::writeGlvS2(), and SIMoutput::writeGlvV().

The documentation for this class was generated from the following files:

src/Utility/VTF.h
src/Utility/VTF.C

Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ VTF()

Member Function Documentation

◆ writeDblk()

◆ writeElements()

◆ writeEres()

◆ writeGrid()

◆ writeNfunc()

◆ writeNodes()

◆ writeNres()

◆ writePoints()

◆ writeSblk() [1/2]

◆ writeSblk() [2/2]

◆ writeState()

◆ writeTblk()

◆ writeTransformation()

◆ writeVblk() [1/2]

◆ writeVblk() [2/2]

◆ writeVectors()

◆ writeVres()
