Driver for assembly of structured 3D spline FE models. More...

#include <ASMs3D.h>

Inheritance diagram for ASMs3D:

[legend]

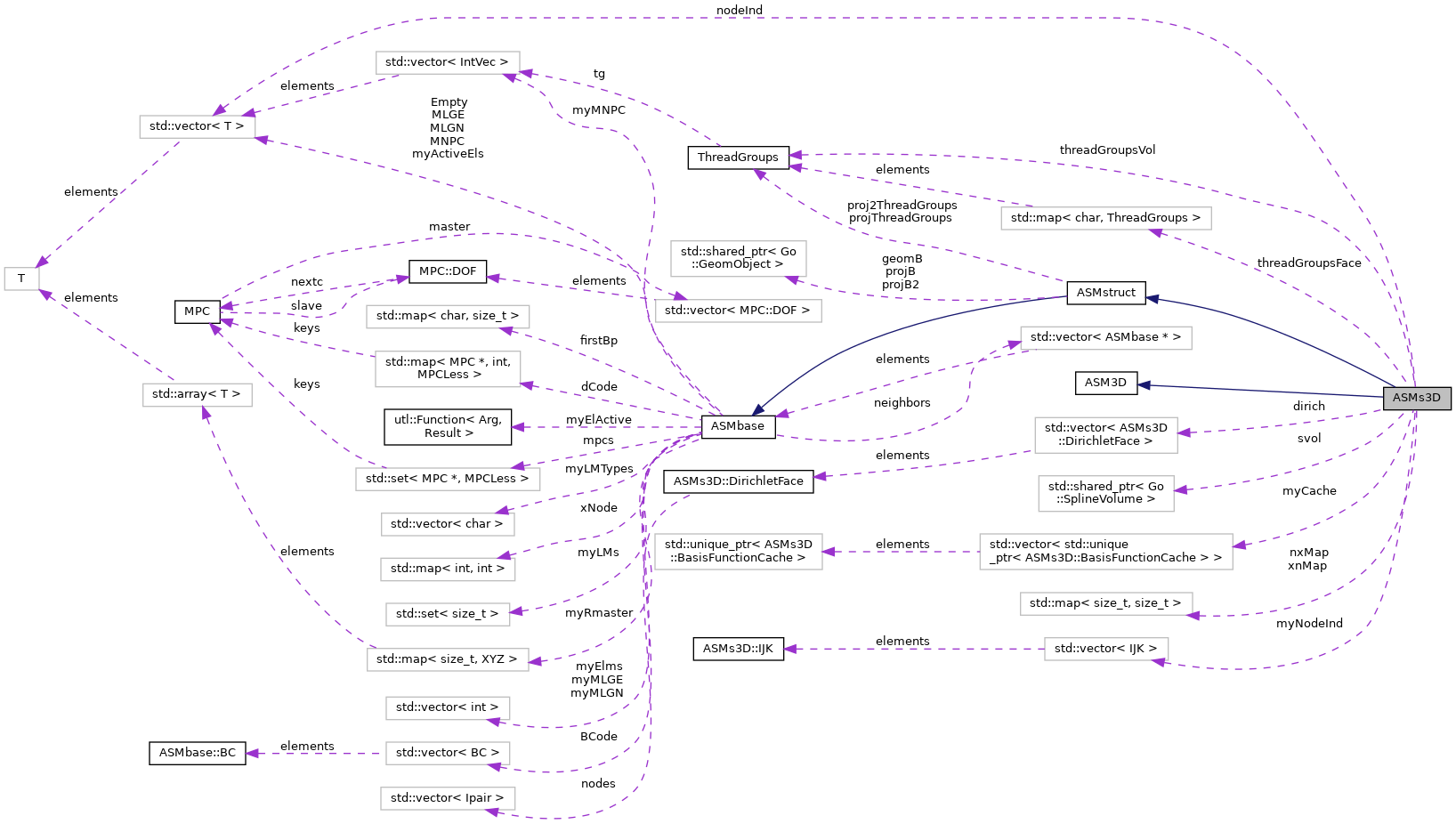

Collaboration diagram for ASMs3D:

[legend]

Classes
class	BasisFunctionCache
	Implementation of basis function cache. More...

struct	BlockNodes
	Struct with data for definition of global node numbers of a patch. More...

struct	DirichletFace
	Struct representing an inhomogeneous Dirichlet boundary condition. More...

struct	Edge
	Struct for edge node definitions. More...

struct	Face
	Struct for face node definitions. More...

struct	IJK
	Struct for nodal point data. More...

class	InterfaceChecker
	Base class that checks if an element has interface contributions. More...

Public Member Functions
	ASMs3D (unsigned char n_f=3)
	Default constructor.

	ASMs3D (const ASMs3D &patch, unsigned char n_f)
	Special copy constructor for sharing of FE data.

	ASMs3D (const ASMs3D &patch)
	Default copy constructor copying everything.

virtual	~ASMs3D ()
	Empty destructor.

virtual Go::SplineSurface *	getBoundary (int dir, int=1)
	Returns the spline surface representing a boundary of this patch. More...

virtual Go::SplineVolume *	getBasis (int basis=1)
	Returns the spline volume representing a basis of this patch.

virtual const Go::SplineVolume *	getBasis (int basis=1) const
	Returns the spline volume representing a basis of this patch.

virtual void	copyParameterDomain (const ASMbase *other)
	Copies the parameter domain from the other patch.

virtual bool	read (std::istream &)
	Creates an instance by reading the given input stream.

virtual bool	write (std::ostream &, int) const
	Writes the geometry of the SplineVolume object to given stream.

virtual bool	generateFEMTopology ()
	Generates the finite element topology data for the patch. More...

virtual void	clear (bool retainGeometry=false)
	Clears the contents of the patch, making it empty. More...

virtual bool	addXElms (short int dim, short int item, size_t nXn, IntVec &nodes)
	Adds extraordinary elements associated with a patch boundary. More...

virtual size_t	getNodeIndex (int globalNum, bool noAddedNodes=false) const
	Returns local 1-based index of the node with given global number. More...

virtual int	getNodeID (size_t inod, bool noAddedNodes=false) const
	Returns the global node number for the given node. More...

virtual bool	getElementCoordinates (Matrix &X, int iel, bool forceItg=false) const
	Returns a matrix with nodal coordinates for an element. More...

virtual void	getNodalCoordinates (Matrix &X, bool geo=false) const
	Returns a matrix with all nodal coordinates within the patch. More...

virtual Vec3	getCoord (size_t inod) const
	Returns the global coordinates for the given node. More...

virtual Vec3	getElementCenter (int iel) const
	Returns the coordinate of the element center.

virtual bool	updateCoords (const Vector &displ)
	Updates the nodal coordinates for this patch. More...

virtual void	getBoundaryNodes (int lIndex, IntVec &nodes, int basis, int thick=1, int=0, bool local=false) const
	Finds the global (or patch-local) node numbers on a patch boundary. More...

virtual void	getBoundary1Nodes (int lEdge, IntVec &nodes, int basis, int=0, bool local=false, bool open=false) const
	Finds the global (or patch-local) node numbers on a patch boundary. More...

virtual int	getCorner (int I, int J, int K, int basis) const
	Returns the node index for a given corner. More...

bool	assignNodeNumbers (BlockNodes &nodes, int basis=0)
	Assigns new global node numbers for all nodes of the patch. More...

virtual bool	checkRightHandSystem ()
	Checks that the patch is modelled in a right-hand-side system. More...

virtual bool	refine (int dir, const RealArray &xi)
	Refines the parametrization by inserting extra knots. More...

virtual bool	uniformRefine (int dir, int nInsert)
	Refines the parametrization by inserting extra knots uniformly. More...

virtual bool	raiseOrder (int ru, int rv, int rw, bool setOrder=false)
	Raises the order of the SplineVolume object for this patch. More...

virtual bool	createProjectionBasis (bool init)
	Creates a separate projection basis for this patch. More...

virtual bool	separateProjectionBasis () const
	Checks if a separate projection basis is used for this patch.

virtual void	constrainFace (int dir, bool open, int dof, int code=0, char basis=1)
	Constrains all DOFs on a given boundary face. More...

virtual size_t	constrainFaceLocal (int dir, bool open, int dof, int code=0, bool project=false, char T1='\0')
	Constrains all DOFs in local directions on a given boundary face. More...

virtual void	constrainEdge (int lEdge, bool open, int dof, int code=0, char basis=1)
	Constrains all DOFs on a given boundary edge. More...

virtual void	constrainLine (int fdir, int ldir, double xi, int dof, int code=0, char basis=1)
	Constrains all DOFs along a line on a given boundary face. More...

virtual void	constrainCorner (int I, int J, int K, int dof, int code=0, char basis=1)
	Constrains a corner node identified by the three parameter indices. More...

virtual void	constrainNode (double xi, double eta, double zeta, int dof, int code=0)
	Constrains a node identified by three relative parameter values. More...

virtual bool	connectPatch (int face, ASM3D &neighbor, int nface, int norient, int=0, bool coordCheck=true, int thick=1)
	Connects all matching nodes on two adjacent boundary faces. More...

virtual void	closeBoundaries (int dir, int basis, int master)
	Makes two opposite boundary faces periodic. More...

virtual bool	collapseFace (int face, int edge=0, int basis=1)
	Collapses a degenerated face into a single node or edge. More...

virtual bool	addRigidCpl (int lindx, int ldim, int basis, int &gMaster, const Vec3 &Xmaster, bool extraPt)
	Adds MPCs representing a rigid coupling to this patch. More...

virtual void	setNodeNumbers (const IntVec &nodes)
	Sets the global node numbers for this patch. More...

virtual bool	updateDirichlet (const std::map< int, RealFunc * > &func, const std::map< int, VecFunc * > &vfunc, double time, const std::map< int, int > *g2l=nullptr)
	Updates the time-dependent in-homogeneous Dirichlet coefficients. More...

virtual bool	integrate (Integrand &integrand, GlobalIntegral &glbInt, const TimeDomain &time)
	Evaluates an integral over the interior patch domain. More...

virtual bool	integrate (Integrand &integrand, int lIndex, GlobalIntegral &glbInt, const TimeDomain &time)
	Evaluates a boundary integral over a patch face. More...

virtual bool	integrateEdge (Integrand &integrand, int lEdge, GlobalIntegral &glbInt, const TimeDomain &time)
	Evaluates a boundary integral over a patch edge. More...

virtual int	evalPoint (const double xi, double param, Vec3 &X) const
	Evaluates the geometry at a specified point. More...

virtual int	findElementContaining (const double *param) const
	Returns the element that contains a specified spatial point. More...

virtual double	findPoint (Vec3 &X, double *param) const
	Searches for the specified Cartesian point in the patch. More...

virtual bool	getGridParameters (RealArray &prm, int dir, int nSegSpan) const
	Calculates parameter values for visualization nodal points. More...

virtual bool	tesselate (ElementBlock &grid, const int *npe) const
	Creates a hexahedron element model of this patch for visualization. More...

virtual bool	evalSolution (Matrix &sField, const Vector &locSol, const int *npe, int n_f, bool piola) const
	Evaluates the primary solution field at all visualization points. More...

virtual bool	evalSolution (Matrix &sField, const Vector &locSol, const RealArray *gpar, bool regular=true, int deriv=0, int=0) const
	Evaluates the primary solution field at the given points. More...

virtual bool	evalProjSolution (Matrix &sField, const Vector &locSol, const int *npe, int n_f) const
	Evaluates the projected solution field at all visualization points. More...

virtual bool	evaluate (const ASMbase *basis, const Vector &locVec, RealArray &vec, int basisNum) const
	Evaluates and interpolates a field over a given geometry. More...

virtual bool	evaluate (const Field *field, RealArray &vec, int basisNum) const
	Evaluates and interpolates a field over a given geometry. More...

virtual bool	evaluate (const FunctionBase *func, RealArray &vec, int basisNum, double time) const
	Evaluates and interpolates a function over a given geometry. More...

virtual bool	evalSolution (Matrix &sField, const IntegrandBase &integrand, const int *npe=nullptr, char project=0) const
	Evaluates the secondary solution field at all visualization points. More...

virtual Go::GeomObject *	evalSolution (const IntegrandBase &integrand) const
	Projects the secondary solution field onto the primary basis. More...

virtual bool	evalSolution (Matrix &sField, const IntegrandBase &integrand, const RealArray *gpar, bool regular=true) const
	Evaluates the secondary solution field at the given points. More...

virtual void	generateThreadGroups (const Integrand &integrand, bool silence, bool ignoreGlobalLM)
	Generates element groups for multi-threading of interior integrals. More...

virtual void	generateThreadGroups (char lIndex, bool silence, bool)
	Generates element groups for multi-threading of boundary integrals. More...

virtual void	generateThreadGroupsFromElms (const IntVec &elms)
	Generates element groups from a partition.

virtual void	generateProjThreadGroupsFromElms (const IntVec &elms)
	Generate element groups from a partition.

virtual bool	getOrder (int &p1, int &p2, int &p3) const
	Returns the polynomial order in each parameter direction. More...

virtual bool	getSize (int &n1, int &n2, int &n3, int basis=0) const
	Returns the number of nodal points in each parameter direction. More...

virtual bool	getNoStructElms (int &n1, int &n2, int &n3) const
	Returns the number of elements in each parameter direction. More...

virtual void	getElmConnectivities (IntMat &neigh, int basis=ASM::INTEGRATION_BASIS) const
	Calculates the matrix of element neighbour connectivities. More...

virtual IntMat	getElmNodes (int basis) const
	Returns the matrix of nodal point correspondance for given basis.

virtual size_t	getNoBoundaryElms (char lIndex, char ldim) const
	Returns the number of elements on a boundary.

virtual size_t	getNoNodes (int basis=0) const
	Returns the total number of nodes in this patch.

virtual size_t	getNoProjectionNodes () const
	Returns the number of projection nodes for this patch.

virtual bool	getParameterDomain (Real2DMat &u, IntVec *corners) const
	Returns parameter values and node numbers of the domain corners. More...

virtual void	evaluateBasis (double u, double v, double w, Vector &N) const
	Evaluates the basis functions at the specified point. More...

void	extractBasis (double u, double v, double w, Vector &N, Matrix &dNdu, bool fromRight=true) const
	Establishes matrices with basis functions and 1st derivatives. More...

void	extractBasis (double u, double v, double w, Vector &N, Matrix &dNdu, Matrix3D &d2Ndu2, bool fromRight=true) const
	Establishes matrices with basis functions, 1st and 2nd derivatives. More...

void	extractBasis (double u, double v, double w, int dir, int p, Vector &dN, bool fromRight=true) const
	Establishes a vector with basis function derivatives. More...

virtual Field *	getProjectedField (const Vector &coefs) const
	Returns a field using the projection basis. More...

virtual Fields *	getProjectedFields (const Vector &coefs, size_t=0) const
	Returns a field using the projection basis. More...

Public Member Functions inherited from ASMstruct
virtual	~ASMstruct ()
	The destructor frees the dynamically allocated spline objects.

virtual bool	empty () const
	Checks if the patch is empty.

virtual bool	diracPoint (Integrand &integr, GlobalIntegral &glInt, const double *u, const Vec3 &pval)
	Integrates a spatial dirac-delta function over a patch. More...

virtual void	swapProjectionBasis ()
	Swaps between the first and second projection basis.

virtual bool	evalSolution (Matrix &sField, const Vector &locSol, const int *npe, int n_f=0, bool piola=false) const
	Evaluates the primary solution field at all visualization points. More...

virtual bool	evalSolution (Matrix &sField, const Vector &locSol, const RealArray *gpar, bool regular=true, int deriv=0, int n_f=0) const
	Evaluates the primary solution field at the given points. More...

virtual bool	evalSolution (Matrix &sField, const IntegrandBase &integrand, const int *npe=nullptr, char project=0) const
	Evaluates the secondary solution field at all visualization points. More...

virtual bool	evalSolution (Matrix &sField, const IntegrandBase &integrand, const RealArray *gpar, bool regular=true) const
	Evaluates the secondary solution field at the given points. More...

virtual bool	evalSolution (Matrix &sField, const IntegrandBase &integrand, const IntVec &elements) const
	Evaluates the secondary solution field at element centers. More...

Public Member Functions inherited from ASMbase
virtual	~ASMbase ()
	The destructor frees the dynamically allocated data objects.

ASMbase *	cloneUnShared () const
	Returns a copy of this patch with identical FE discretization. More...

virtual bool	readBasis (std::istream &, size_t)
	Reads a basis from the given input stream.

virtual void	addHole (double, double, double)
	Adds a circular immersed boundary in the physical geometry.

virtual void	addHole (double, double, double, double, double)
	Adds an oval immersed boundary in the physical geometry.

virtual bool	setGeometry (RealFunc *, double, double)
	Defines the immersed geometry from a scalar function.

bool	addLagrangeMultipliers (size_t iel, const IntVec &mGLag, unsigned char nnLag=1)
	Adds a set of Lagrange multipliers to the specified element. More...

bool	addGlobalLagrangeMultipliers (const IntVec &mGLag, unsigned char nnLag=1)
	Adds global Lagrange multipliers to the system. More...

virtual void	setGauss (int ng)
	Defines the numerical integration scheme nGauss in the patch.

void	setNoFields (unsigned char n)
	Defines the number of solution fields in the patch. More...

void	setElementActivator (IntFunc *efunc)
	Sets the element activation function.

const IntFunc *	getElementActivator () const
	Returns a pointer to the element activation function.

virtual void	setMinimumSize (double)
	Sets the minimum element size for adaptive refinement.

virtual double	getMinimumSize (int=0) const
	Defines the minimum element size for adaptive refinement.

virtual bool	checkElementSize (int, bool=true) const
	Checks if the specified element is larger than the minimum size.

unsigned char	getNoSpaceDim () const
	Returns the number of spatial dimensions.

unsigned char	getNoParamDim () const
	Returns the number of parameter dimensions.

virtual unsigned char	getNoFields (int b=0) const
	Returns the number of solution fields.

unsigned char	getNoLagPerNode () const
	Returns the number of Lagrange multipliers per node.

size_t	getElmIndex (int globalNum) const
	Returns local 1-based index of element with given global number. More...

int	getElmID (size_t iel) const
	Returns the global element number for the given element. More...

virtual unsigned char	getNodalDOFs (size_t inod) const
	Returns the number of DOFs per node. More...

virtual char	getNodeType (size_t inod) const
	Returns the classification of a node. More...

bool	isLMn (size_t n) const
	Returns true if node n is a Lagrange multiplier node.

bool	isRMn (size_t n) const
	Returns true if node n is a master node of a rigid coupling.

char	getLMType (size_t inod) const
	Returns the type of a Lagrange multiplier node. More...

void	getBoundaryElms (int lIndex, IntVec &elms, int orient=-1, bool local=false) const
	Finds the global (or patch-local) element numbers on a boundary. More...

virtual int	getNodeSetIdx (const std::string &) const
	Returns (1-based) index of a predefined node set in the patch.

virtual const IntVec &	getNodeSet (int) const
	Returns an indexed predefined node set.

virtual bool	isInNodeSet (int, int) const
	Checks if a node is within a predefined node set.

virtual int	parseNodeSet (const std::string &, const char *)
	Defines a node set by parsing a list of node numbers.

virtual int	parseNodeBox (const std::string &, const char *)
	Defines a node set by parsing a 3D bounding box.

virtual int	getElementSetIdx (const std::string &) const
	Returns (1-based) index of a predefined element set in the patch.

virtual const IntVec &	getElementSet (int) const
	Returns an indexed predefined element set.

virtual bool	getElementSet (int, std::string &) const
	Returns the name of an indexed predefined element set.

virtual bool	isInElementSet (int, int) const
	Checks if an element is within a predefined element set.

virtual int	parseElemSet (const std::string &, const char *)
	Defines an element set by parsing a list of element numbers.

virtual int	parseElemBox (const std::string &, const std::string &, const char *)
	Defines an element set by parsing a 3D bounding box.

virtual std::pair< size_t, double >	findClosestNode (const Vec3 &) const
	Finds the node that is closest to the given point.

void	printNodes (std::ostream &os) const
	Prints out the nodal coordinates of this patch to the given stream.

void	printElements (std::ostream &os) const
	Prints out element connections of this patch to the given stream.

virtual void	printElmInfo (int, const IntegrandBase *) const
	Prints out additional app-dependent element information.

virtual void	shiftGlobalNodeNums (int nshift)
	Increase all global node numbers by nshift.

void	setGlobalNodeNums (const IntVec &nodes)
	Sets the global node numbers for this patch.

const IntVec &	getMyNodeNums () const
	Returns the actual global node numbers of this patch.

const IntVec &	getGlobalNodeNums () const
	Returns the global node numbers of this patch.

virtual void	shiftGlobalElmNums (int eshift)
	Increase all global element numbers by eshift.

const IntVec &	getGlobalElementNums () const
	Returns the global element numbers of this patch.

void	setActiveElements (IntVec *active)
	Sets the list of active elements during assembly.

bool	isElementActive (int iel, double time=-1.0) const
	Returns true if element with 0-based index iel is active.

bool	inActive (double time) const
	Returns true if none of the elements in the patch are active.

double	getAge (int iel, double time) const
	Returns the age of the element with 0-based index iel.

bool	isElementInPartition (int iel) const
	Returns true if element is in process partition. More...

const IntVec &	getElementNodes (int iel) const
	Returns the nodal point correspondance array for an element. More...

virtual size_t	getNoBasis () const
	Returns number of bases of this patch.

size_t	getNoElms (bool includeZeroVolElms=false, bool includeXElms=false) const
	Returns the total number of elements in this patch. More...

int	getMaxElmNo () const
	Returns the highest external element number in this patch.

size_t	getNoMPCs () const
	Returns the total number of multi-point constraint equations.

virtual void	getNoIntPoints (size_t &nPt, size_t &nIPt)
	Computes the total number of integration points in this patch.

virtual void	getNoBouPoints (size_t &nPt, char ldim, char lindx)
	Computes the number of boundary integration points in this patch.

BCVec::const_iterator	begin_BC () const
	Returns the beginning of the BCode array.

BCVec::const_iterator	end_BC () const
	Returns the end of the BCode array.

IntMat::const_iterator	begin_elm () const
	Returns the beginning of the MNPC array.

IntMat::const_iterator	end_elm () const
	Returns the end of the MNPC array.

MPCIter	begin_MPC () const
	Returns the beginning of the mpcs set.

MPCIter	end_MPC () const
	Returns the end of the mpcs set.

MPC *	findMPC (int node, int dof) const
	Returns a pointer to the MPC object for a specified slave, if any. More...

bool	isShared () const
	Returns true if this patch shares FE data with another patch.

bool	hasXNodes () const
	Returns true if this patch has additional (extraordinary) nodes.

bool	mergeNodes (size_t inod, int globalNum, bool verbose=true)
	Merges a given node in this patch with a given global node. More...

int	renumberNodes (std::map< int, int > &old2new, int &nNod)
	Renumbers the global node numbers in this patch. More...

bool	renumberNodes (const std::map< int, int > &old2new, const std::vector< int > &new2old={}, int renumGN=0, std::map< int, int > *degenElm=nullptr)
	Renumbers the global node numbers referred by this patch. More...

virtual bool	initConstraints ()
	Initializes the multi-point constraint coefficients.

bool	hasTimeDependentDirichlet (const std::map< int, RealFunc * > &func, const std::map< int, VecFunc * > &vfunc)
	Checks for time-dependent in-homogeneous Dirichlet conditions. More...

virtual bool	transform (const Matrix &)
	Applies a transformation matrix from local to global system.

virtual void	initMADOF (const int *)
	Initializes the patch level MADOF array for mixed problems.

virtual bool	validateThreadGroups (const SAM *) const
	Validates the threading groups based on the assembly data in SAM.

virtual ElementBlock *	immersedGeometry (char *) const
	Returns an additional geometry to visualize (immersed boundaries).

virtual ElementBlock *	extraGeometry (char *) const
	Returns an additional geometry to visualize (spiders, etc.).

virtual void	filterResults (Matrix &, const ElementBlock *) const
	Filters out result point values that are outside physical domain.

virtual bool	getSolution (Matrix &sField, const Vector &locSol, const IntVec &nodes) const
	Extract the primary solution field at the specified nodes. More...

virtual bool	immersedSolution (Matrix &, const Vector &) const
	Evaluates the primary solution at the immersed geometry points.

virtual bool	extraSolution (Matrix &, const Vector &) const
	Evaluates the primary solution at the extra geometry points.

virtual bool	evalSolutionPiola (Matrix &sField, const Vector &locSol, const RealArray *gpar, bool regular) const
	Evaluates the primary solution field with Piola mapping. More...

virtual bool	evalSolution (Matrix &sField, const IntegrandBase &integrand, const IntVec &elements) const
	Evaluates the secondary solution field at element centers. More...

bool	globalL2projection (Matrix &sField, const L2Integrand &integrand, bool continuous=false, bool enforceEnds=false) const
	Projects the secondary solution using a (discrete) global L2-fit. More...

bool	L2projection (Matrix &sField, IntegrandBase *integrand, const TimeDomain &time)
	Projects the secondary solution using a continuous global L2-fit. More...

bool	L2projection (Matrix &fVals, FunctionBase *function, double t=0.0)
	Projects an explicit function using a continuous global L2-fit. More...

bool	L2projection (const std::vector< Matrix * > &fVals, const std::vector< FunctionBase * > &function, double t=0.0)
	Projects explicit functions using a continuous global L2-fit. More...

virtual size_t	getNoRefineNodes () const
	Returns the number of nodes on refinement basis for this patch.

virtual size_t	getNoRefineElms () const
	Returns the number of elements on refinement basis for this patch.

virtual void	extractElmRes (const Vector &globRes, Vector &elmRes, size_t internalFirst=0) const
	Extracts element results for this patch from a global vector. More...

virtual void	extractElmRes (const Matrix &globRes, Matrix &elmRes, size_t internalFirst=0) const
	Extracts element results for this patch from a global vector. More...

bool	extractNodalVec (const RealArray &globVec, RealArray &nodeVec, const int *madof, int ngnod=-1) const
	Extracts nodal results for this patch from the global vector. More...

virtual void	extractNodeVec (const RealArray &globVec, RealArray &nodeVec, unsigned char nndof=0, int basis=0) const
	Extracts nodal results for this patch from the global vector. More...

virtual bool	injectNodeVec (const RealArray &nodeVec, RealArray &globVec, unsigned char nndof=0, int basis=0) const
	Injects nodal results for this patch into the global vector. More...

bool	injectNodalVec (const RealArray &nodeVec, RealArray &globVec, const IntVec &madof, int basis=0) const
	Injects nodal results for this patch into the global vector. More...

bool	add2PC (int slave, int dir, int master, int code=0)
	Creates and adds a two-point constraint to this patch. More...

bool	addMPC (MPC *&mpc, int code=0, bool verbose=false, bool overrideD=false)
	Adds a general multi-point-constraint (MPC) equation to this patch. More...

void	addRigidCouplings (int gMaster, const Vec3 &Xmaster, const IntVec &slaveNodes)
	Adds MPC-equations representing a rigid coupling to this patch. More...

void	constrainPatch (int dof, int code=0)
	Constrains all nodes in the patch. More...

void	constrainNodes (const IntVec &nodes, int dof, int code=0, bool overrideD=false)
	Constrains a list of nodes in the patch. More...

bool	constrainXnode (int node, int dof, int code=0)
	Constrains an extraordinary node in the patch. More...

int	prescribe (size_t inod, int dirs, int code, bool overrideD=false)
	Constrains DOFs in the given node to the given value. More...

int	fix (size_t inod, int dirs=123)
	Constrains DOFs in the given node to zero. More...

bool	isFixed (int node, int dof, bool all=false) const
	Checks if the given DOFs are fixed. More...

Public Member Functions inherited from ASM3D
virtual	~ASM3D ()
	Empty destructor.

ASMbase *	clone (const CharVec &nf=CharVec()) const
	Returns a copy of this patch with identical FE discretization. More...

virtual bool	refine (int dir, const std::vector< double > &xi)=0
	Refines the parametrization by inserting extra knots. More...

virtual bool	getGridParameters (std::vector< double > &prm, int dir, int nSegSpan) const =0
	Calculates parameter values for visualization nodal points. More...

Static Public Member Functions
static void	scatterInd (int n1, int n2, int n3, int p1, int p2, int p3, const int *start, IntVec &index)
	Auxilliary function for computation of basis function indices.

Static Public Member Functions inherited from ASMbase
static void	resetNumbering (int n=0)
	Resets the global element and node counters.

static int	renumberNodes (const ASMVec &model, std::map< int, int > &old2new)
	Renumbers all global node numbers in the entire model. More...

static void	mergeAndGetAllMPCs (const ASMVec &model, MPCSet &allMPCs)
	Computes the set of all MPC-equations over the whole model. More...

static void	resolveMPCchains (const MPCSet &allMPCs, const ASMVec &model, bool setPtrOnly=false)
	Resolves (possibly multi-level) chaining in MPC-equations. More...

Static Public Member Functions inherited from ASM3D
static ASMbase *	create (ASM::Discretization type, const CharVec &nf, bool mixedFEM=false)
	Creates a three-parametric patch of specified discretization type. More...

static ASMbase *	create (ASM::Discretization type, unsigned char nf=1)
	Creates a three-parametric patch of specified discretization type. More...

Protected Member Functions
bool	integrate (Integrand &integrand, GlobalIntegral &glbInt, const TimeDomain &time, const Real3DMat &itgPts)
	Evaluates an integral over the interior patch domain. More...

bool	integrate (Integrand &integrand, GlobalIntegral &glbInt, const TimeDomain &time, const ASM::InterfaceChecker &iChk)
	Evaluates an integral over element interfaces in the patch. More...

virtual void	findBoundaryElms (IntVec &elms, int lIndex, int=0) const
	Finds the patch-local element numbers on a patch boundary. More...

virtual bool	assembleL2matrices (SystemMatrix &A, SystemVector &B, const L2Integrand &integrand, bool continuous) const
	Assembles L2-projection matrices for the secondary solution. More...

bool	connectBasis (int face, ASMs3D &neighbor, int nface, int norient, int basis=1, int slave=0, int master=0, bool coordCheck=true, int thick=1)
	Connects all matching nodes on two adjacent boundary faces. More...

void	getGaussPointParameters (RealArray &uGP, int dir, int nGauss, const double *xi) const
	Extracts parameter values of the Gauss points in one direction. More...

bool	getGrevilleParameters (RealArray &prm, int dir, int basisNum=1) const
	Calculates parameter values for the Greville points. More...

bool	getQuasiInterplParameters (RealArray &prm, int dir) const
	Calculates parameter values for the Quasi-Interpolation points. More...

bool	getElementCoordinatesPrm (Matrix &X, double u, double v, double w) const
	Returns a matrix with nodal coordinates for element spanning given parameters. More...

double	getParametricVolume (int iel) const
	Returns the volume in the parameter space for an element. More...

double	getParametricArea (int iel, int dir) const
	Returns boundary face area in the parameter space for an element. More...

virtual void	getElementBorders (int iel, double *u) const
	Computes the element border parameters. More...

void	getElementBorders (int i1, int i2, int i3, double u, double v, double *w) const
	Computes the element border parameters. More...

double	getElementCorners (int i1, int i2, int i3, std::vector< Vec3 > &XC, RealArray *uC=nullptr) const
	Computes the element corner coordinates. More...

void	getCornerPoints (int i1, int i2, int i3, std::vector< utl::Point > &XC) const
	Computes the element corner coordinates and parameters. More...

void	generateThreadGroups (size_t strip1, size_t strip2, size_t strip3, bool silence, bool ignoreGlobalLM)
	Generates element groups for multi-threading of interior integrals. More...

void	generateThreadGroups (size_t strip1, size_t strip2, size_t strip3, char lIndex, bool silence, bool)
	Generates element groups for multi-threading of boundary integrals. More...

virtual void	changeNumThreads ()
	Hook for changing number of threads.

virtual int	getFirstItgElmNode () const
	Returns 0-based index of first node on integration basis.

virtual int	getLastItgElmNode () const
	Returns 0-based index of last node on integration basis.

Protected Member Functions inherited from ASMstruct
	ASMstruct (unsigned char n_p, unsigned char n_s, unsigned char n_f)
	The constructor sets the number of space dimensions and fields. More...

	ASMstruct (const ASMstruct &patch, unsigned char n_f)
	Special copy constructor for sharing of FE data. More...

bool	addXNodes (unsigned short int dim, size_t nXn, IntVec &nodes)
	Adds extraordinary nodes associated with a patch boundary. More...

bool	checkThreadGroups (const std::vector< std::set< int >> &nodes, int group, bool ignoreGlobalLM)
	Performs a sanity check on the thread groups. More...

Protected Member Functions inherited from ASMbase
	ASMbase (unsigned char n_p, unsigned char n_s, unsigned char n_f)
	The constructor sets the number of space dimensions and fields. More...

	ASMbase (const ASMbase &patch, unsigned char n_f)
	Special copy constructor for sharing of FE data. More...

	ASMbase (const ASMbase &patch)
	Default copy constructor, copying everything except neighbors. More...

void	addLocal2GlobalCpl (int iSlave, int master, const Tensor &Tlg)
	Creates constraint equations coupling global DOFs to local DOFs. More...

bool	add3PC (int slave, int dir, int master1, int master2, int code=0)
	Creates and adds a three-point constraint to this patch. More...

bool	addPeriodicity (size_t master, size_t slave, int dir)
	Creates and adds a periodicity constraint to this patch. More...

void	makePeriodic (size_t master, size_t slave, int dirs=123)
	Creates periodicity constraints between two nodes in this patch. More...

void	addNeighbor (ASMbase *pch)
	Adds a patch to the list of neighbors of this patch. More...

bool	createRgdMasterNode (int &gMaster, const Vec3 &Xmaster)
	Creates an additional master node for a rigid coupling. More...

void	addRigidMPC (int gSlave, int gMaster, const Vec3 &dX)
	Adds MPC-equations representing a rigid arm to a 6-DOF node. More...

int	getNoGaussPt (int p, bool neumann=false) const
	Returns the number of Gauss points to use in one direction. More...

int	searchCtrlPt (RealArray::const_iterator cit, RealArray::const_iterator end, const Vec3 &X, int dimension, double tol=0.001) const
	Helper method used by evalPoint to search for a control point. More...

bool	allDofs (int dirs) const
	Returns true if dirs constains all local DOFs in the patch.

bool	writeLagBasis (std::ostream &os, const char *type) const
	Writes a Lagrangian basis to the given stream.

Protected Member Functions inherited from ASM3D
	ASM3D ()
	The constructor is protected to allow objects of sub-classes only.

Protected Attributes
std::shared_ptr< Go::SplineVolume >	svol
	The actual spline volume object.

bool	swapW
	Has the w-parameter direction been swapped?

const IndexVec &	nodeInd
	IJK-triplets for the control points (nodes)

IndexVec	myNodeInd
	The actual IJK-triplet container.

std::map< size_t, size_t >	xnMap
	Node index map used by getCoord()

std::map< size_t, size_t >	nxMap
	Node index map used by getNodeID()

std::vector< DirichletFace >	dirich
	Inhomogeneous Dirichlet boundary condition data.

ThreadGroups	threadGroupsVol
	Element groups for multi-threaded volume assembly.

std::map< char, ThreadGroups >	threadGroupsFace
	Element groups for multi-threaded face assembly.

std::vector< std::unique_ptr< BasisFunctionCache > >	myCache
	Basis function cache.

Protected Attributes inherited from ASMstruct
std::shared_ptr< Go::GeomObject >	geomB
	Pointer to spline object of the geometry basis.

std::shared_ptr< Go::GeomObject >	projB
	Pointer to spline object of the projection basis.

std::shared_ptr< Go::GeomObject >	projB2
	Pointer to spline object of the secondary projection basis.

ThreadGroups	projThreadGroups
	Element groups for multi-threaded assembly - projection basis.

ThreadGroups	proj2ThreadGroups
	Element groups for multi-threaded assembly - second projection basis.

Protected Attributes inherited from ASMbase
unsigned char	ndim
	Number of parametric dimensions (1, 2 or 3)

unsigned char	nsd
	Number of space dimensions (ndim <= nsd <= 3)

unsigned char	nf
	Number of primary solution fields (1 or larger)

unsigned char	nLag
	Number of Lagrange multipliers per node.

size_t	nel
	Number of regular elements in this patch.

size_t	nnod
	Number of regular nodes in this patch.

const IntVec &	MLGE
	Matrix of Local to Global Element numbers.

const IntVec &	MLGN
	Matrix of Local to Global Node numbers.

const IntMat &	MNPC
	Matrix of Nodal Point Correspondance.

const char	shareFE
	Flag telling whether this patch shares its data with another patch. More...

BCVec	BCode
	Array of Boundary Condition codes.

MPCMap	dCode
	Inhomogeneous Dirichlet condition codes for the MPCs.

MPCSet	mpcs
	All multi-point constraints with the slave in this patch.

IntVec	myMLGE
	The actual Matrix of Local to Global Element numbers.

IntVec	myMLGN
	The actual Matrix of Local to Global Node numbers.

IntMat	myMNPC
	The actual Matrix of Nodal Point Correspondance.

IntVec	myElms
	Elements on patch - used with partitioning.

int	nGauss
	Numerical integration scheme for this patch. More...

size_t	firstEl
	Global index to first element within this patch.

size_t	firstIp
	Global index to first interior integration point.

std::map< char, size_t >	firstBp
	Global indices to first integration point for the Neumann boundaries.

ASMVec	neighbors
	Patches having nodes in common with this one.

std::map< size_t, XYZ >	myRmaster
	Rigid master nodal points.

Private Types
typedef std::vector< IJK >	IndexVec
	Node index container.

typedef std::pair< int, int >	Ipair
	Convenience type.

Private Member Functions
Go::SplineVolume *	projectSolution (const IntegrandBase &integrand) const
	Projects the secondary solution field onto the primary basis. More...

Go::SplineVolume *	projectSolutionLocal (const IntegrandBase &) const
	Projects the secondary solution using Quasi-Interpolation.

Go::SplineVolume *	projectSolutionLocalApprox (const IntegrandBase &) const
	Projects the secondary solution using Variation Diminishing Spline Approximation.

Go::SplineVolume *	projectSolutionLeastSquare (const IntegrandBase &) const
	Projects the secondary solution using Least-Square Approximation.

int	coeffInd (size_t inod) const
	Returns an index into the internal coefficient array for a node. More...

int	findStartNode (int &n1, int &n2, int &n3, char basis) const
	Find the start node and size for a basis. More...

bool	getFaceSize (int &n1, int &n2, int basis, int face) const
	Find local sizes for a given face. More...

Static Private Member Functions
static void	createMNPC (const Go::SplineVolume *svol, IntMat &MNPC)
	Creates matrix of nodal point correspondance for a spline surface.

Additional Inherited Members
Public Types inherited from ASMbase
using	BCVec = std::vector< BC >
	Nodal boundary condition container.

Public Types inherited from ASM3D
typedef std::vector< unsigned char >	CharVec
	Convenience type.

Public Attributes inherited from ASMbase
size_t	idx
	Index of this patch in the multi-patch model.

Static Public Attributes inherited from ASMbase
static bool	fixHomogeneousDirichlet = true
	If true, pre-eliminate fixed DOFs.

static int	dbgElm = 0
	One-based element index to print debugging info for.

static double	modelSize = 1.0
	Characteristic model size. More...

Protected Types inherited from ASMbase
using	XYZ = std::array< double, 3 >
	Convenience type definition.

Static Protected Member Functions inherited from ASMbase
static bool	deformedConfig (const Matrix &Xnod, Vectors &eVec, bool force2nd=false)
	Calculates the deformed configuration for current element. More...

static bool	collapseNodes (ASMbase &pch1, int node1, ASMbase &pch2, int node2)
	Collapses the given two nodes into one. More...

Static Protected Member Functions inherited from ASM3D
static double	getElementSize (const std::vector< Vec3 > &XC)
	Returns characteristic element size based on corner coordinates.

Static Protected Attributes inherited from ASMbase
static std::map< int, int >	xNode
	Auxilliary node number map used when establishing Dirichlet constraints.

static int	gEl = 0
	Global element counter.

static int	gNod = 0
	Global node counter.

Detailed Description

Driver for assembly of structured 3D spline FE models.

This class contains methods common for structured 3D spline patches.

Member Function Documentation

◆ addRigidCpl()

bool ASMs3D::addRigidCpl	(	int	lindx,
		int	ldim,
		int	basis,
		int &	gMaster,
		const Vec3 &	Xmaster,
		bool	extraPt
	)

virtual

Adds MPCs representing a rigid coupling to this patch.

Parameters

[in]	lindx	Local index of the boundary item that should be rigid
[in]	ldim	Dimension of the boundary item that should be rigid
[in]	basis	Which basis to add rigid coupling for (mixed methods)
	gMaster	Global node number of the master node
[in]	Xmaster	Position of the master nodal point
[in]	extraPt	If true, the master point is not a patch node

Returns: true if a new global node was added, otherwise false

Reimplemented from ASMbase.

References ASMbase::addRigidCpl(), IFEM::cout, ASMbase::idx, ThreadGroups::stripDir, threadGroupsFace, and threadGroupsVol.

◆ addXElms()

bool ASMs3D::addXElms	(	short int	dim,
		short int	item,
		size_t	nXn,
		IntVec &	nodes
	)

virtual

Adds extraordinary elements associated with a patch boundary.

Parameters

[in]	dim	Dimension of the boundary (should be 2)
[in]	item	Local index of the boundary face
[in]	nXn	Number of extraordinary nodes
[out]	nodes	Global numbers assigned to the extraordinary nodes

Reimplemented from ASMbase.

Reimplemented in ASMs3DLag.

References ASMstruct::addXNodes(), ASMbase::MLGE, and svol.

◆ assembleL2matrices()

bool ASMs3D::assembleL2matrices	(	SystemMatrix &	A,
		SystemVector &	B,
		const L2Integrand &	integrand,
		bool	continuous
	)		const

protectedvirtual

Assembles L2-projection matrices for the secondary solution.

Parameters

[out]	A	Left-hand-side matrix
[out]	B	Right-hand-side vectors
[in]	integrand	Object with problem-specific data and methods
[in]	continuous	If false, a discrete L2-projection is used

Reimplemented from ASMbase.

Reimplemented in ASMs3DLag.

References L2Integrand::evaluate(), ASM::GEOMETRY_BASIS, getBasis(), GaussQuadrature::getCoord(), getElmNodes(), SplineUtils::getGaussParameters(), ASMbase::getNoBasis(), ASMbase::getNoGaussPt(), getNoProjectionNodes(), GaussQuadrature::getWeight(), ASMbase::idx, ASMbase::nnod, SystemMatrix::preAssemble(), and ASM::PROJECTION_BASIS.

◆ assignNodeNumbers()

bool ASMs3D::assignNodeNumbers	(	BlockNodes &	nodes,
		int	basis = `0`
	)

Assigns new global node numbers for all nodes of the patch.

Parameters

	nodes	Object with global nodes numbers to assign to this patch
[in]	basis	Which basis to assign node numbers for in mixed methods

The global node numbers generated by generateFEMTopology() are non-unique in the sense that a node that is shared by two (or more) patches along a common interface has a different number in each patch. This method therefore assigns a new global number to each node in the patch. The data provided through the nodes argument is sufficient to determine the unique global number under the assumption that they are ordered in the sequence determined by the local orientation of the patch, its faces and edges.

◆ checkRightHandSystem()

bool ASMs3D::checkRightHandSystem ( )

virtual

Checks that the patch is modelled in a right-hand-side system.

If it isn't, the w-parameter direction is swapped.

Reimplemented from ASM3D.

References ASMbase::shareFE, svol, and swapW.

◆ clear()

void ASMs3D::clear ( bool retainGeometry = false )

virtual

Clears the contents of the patch, making it empty.

Parameters

[in] retainGeometry If true, the spline geometry is not cleared. This is used to reinitialize the patch after it has been refined.

Reimplemented from ASMbase.

Reimplemented in ASMs3DLag, ASMs3DmxLag, and ASMs3Dmx.

References ASMbase::clear(), ASMstruct::geomB, myCache, myNodeInd, nxMap, ASMstruct::projB, svol, threadGroupsFace, threadGroupsVol, and xnMap.

Referenced by ASMs3Dmx::clear(), and ASMs3DLag::clear().

◆ closeBoundaries()

void ASMs3D::closeBoundaries	(	int	dir,
		int	basis,
		int	master
	)

virtual

Makes two opposite boundary faces periodic.

Parameters

[in]	dir	Parameter direction defining the periodic faces
[in]	basis	Which basis to connect (mixed methods)
[in]	master	1-based index of the first master node in this basis

Reimplemented from ASMbase.

Reimplemented in ASMs3DmxLag, and ASMs3Dmx.

References utl::getDirs(), ASMbase::getNoFields(), getSize(), ASMbase::makePeriodic(), ThreadGroups::stripDir, and threadGroupsVol.

Referenced by ASMs3Dmx::closeBoundaries(), and ASMs3DmxLag::closeBoundaries().

◆ coeffInd()

int ASMs3D::coeffInd ( size_t inod ) const

private

Returns an index into the internal coefficient array for a node.

Parameters

[in] inod 0-based node index local to current patch

References ASMbase::nnod, nodeInd, and svol.

Referenced by getCoord(), and getElementCoordinates().

◆ collapseFace()

bool ASMs3D::collapseFace	(	int	face,
		int	edge = `0`,
		int	basis = `1`
	)

virtual

Collapses a degenerated face into a single node or edge.

Parameters

[in]	face	Which face to collapse, in range [1,6]
[in]	edge	Which edge to callapse on to, in range [0,12], 0 means collapse on to vertex
[in]	basis	Which basis to collapse face for

References ASMbase::collapseNodes(), Vec3::equal(), findStartNode(), getCoord(), ThreadGroups::stripDir, swapW, and threadGroupsVol.

Referenced by SIM3D::parseGeometryTag().

◆ connectBasis()

bool ASMs3D::connectBasis	(	int	face,
		ASMs3D &	neighbor,
		int	nface,
		int	norient,
		int	basis = `1`,
		int	slave = `0`,
		int	master = `0`,
		bool	coordCheck = `true`,
		int	thick = `1`
	)

protected

Connects all matching nodes on two adjacent boundary faces.

Parameters

[in]	face	Local face index of this patch, in range [1,6]
	neighbor	The neighbor patch
[in]	nface	Local face index of neighbor patch, in range [1,6]
[in]	norient	Relative face orientation flag, see connectPatch()
[in]	basis	Which basis to connect the nodes for (mixed methods)
[in]	slave	0-based index of the first slave node in this basis
[in]	master	0-based index of the first master node in this basis
[in]	coordCheck	False to disable coordinate checks (periodic connections)
[in]	thick	Thickness of connection

References ASMbase::collapseNodes(), Vec3::equal(), getBoundaryNodes(), getCoord(), getFaceSize(), and ASMbase::isShared().

Referenced by ASMs3Dmx::connectPatch(), ASMs3DmxLag::connectPatch(), and connectPatch().

◆ connectPatch()

bool ASMs3D::connectPatch	(	int	face,
		ASM3D &	neighbor,
		int	nface,
		int	norient,
		int	= `0`,
		bool	coordCheck = `true`,
		int	thick = `1`
	)

virtual

Connects all matching nodes on two adjacent boundary faces.

Parameters

[in]	face	Local face index of this patch, in range [1,6]
	neighbor	The neighbor patch
[in]	nface	Local face index of neighbor patch, in range [1,6]
[in]	norient	Relative face orientation flag (see below)
[in]	coordCheck	False to disable coordinate checks (periodic connections)
[in]	thick	Thickness of connection

The face orientation flag norient must be in range [0,7]. When interpreted as a binary number, its 3 digits are decoded as follows:

left digit = 1: The u and v parameters of the neighbor face are swapped
middle digit = 1: Parameter u in neighbor patch face is reversed
right digit = 1: Parameter v in neighbor patch face is reversed

Implements ASM3D.

Reimplemented in ASMs3DmxLag, and ASMs3Dmx.

References ASMbase::addNeighbor(), connectBasis(), and swapW.

◆ constrainCorner()

void ASMs3D::constrainCorner	(	int	I,
		int	J,
		int	K,
		int	dof,
		int	code = `0`,
		char	basis = `1`
	)

virtual

Constrains a corner node identified by the three parameter indices.

Parameters

[in]	I	Parameter index in u-direction
[in]	J	Parameter index in v-direction
[in]	K	Parameter index in w-direction
[in]	dof	Which DOFs to constrain at the node
[in]	code	Inhomogeneous dirichlet condition code
[in]	basis	Which basis to constrain node for

The sign of the three indices is used to define whether we want the node at the beginning or the end of that parameter direction. The magnitude of the indices are not used.

Implements ASM3D.

References getCorner(), K, and ASMbase::prescribe().

◆ constrainEdge()

void ASMs3D::constrainEdge	(	int	lEdge,
		bool	open,
		int	dof,
		int	code = `0`,
		char	basis = `1`
	)

virtual

Constrains all DOFs on a given boundary edge.

Parameters

[in]	lEdge	Local index [1,12] of the edge to constrain
[in]	open	If true, exclude the end points of the edge
[in]	dof	Which DOFs to constrain at each node along the edge
[in]	code	Inhomogeneous dirichlet condition code
[in]	basis	Which basis to constrain edge for

Implements ASM3D.

Reimplemented in ASMs3DLag.

References getBoundary1Nodes(), and ASMbase::prescribe().

Referenced by ASMs3DLag::constrainEdge().

◆ constrainFace()

void ASMs3D::constrainFace	(	int	dir,
		bool	open,
		int	dof,
		int	code = `0`,
		char	basis = `1`
	)

virtual

Constrains all DOFs on a given boundary face.

Parameters

[in]	dir	Parameter direction defining the face to constrain
[in]	open	If true, exclude all points along the face boundary
[in]	dof	Which DOFs to constrain at each node on the face
[in]	code	Inhomogeneous dirichlet condition code
[in]	basis	Which basis to constrain face for

A negative code value implies direct evaluation of the Dirichlet condition function at the control point. Positive code implies projection onto the spline basis representing the boundary surface (needed for curved faces and/or non-constant functions).

Implements ASM3D.

Reimplemented in ASMs3DLag.

References dirich, findStartNode(), getBoundary(), ASMbase::prescribe(), and swapW.

Referenced by ASMs3DLag::constrainFace().

◆ constrainFaceLocal()

size_t ASMs3D::constrainFaceLocal	(	int	dir,
		bool	open,
		int	dof,
		int	code = `0`,
		bool	project = `false`,
		char	T1 = `'\0'`
	)

virtual

Constrains all DOFs in local directions on a given boundary face.

Parameters

[in]	dir	Parameter direction defining the face to constrain
[in]	open	If true, exclude all points along the face boundary
[in]	dof	Which local DOFs to constrain at each node on the face
[in]	code	Inhomogeneous dirichlet condition code
[in]	project	If true, the local axis directions are projected
[in]	T1	Desired global direction of first local tangent direction

Returns: Number of additional nodes added due to local axis constraints

The local coordinate systems in which the constraints are applied, are constructed from the tangent directions of the boundary surface, evaluated at the Greville points. The local Z-direction is then the outward-directed normal, computed as the cross product of the two tangents. If project is true, the normal vector is projected onto the surface basis of the face in order to obtain corresponding control point values. Otherwise, it is used directly.

A negative code value implies direct evaluation of the Dirichlet condition function at the control point. Positive code implies projection onto the spline basis representing the boundary surface (needed for curved faces and/or non-constant functions).

Implements ASM3D.

References MPC::addMaster(), ASMbase::addMPC(), dirich, getBoundary(), getGrevilleParameters(), getSize(), ASMbase::gNod, ASMbase::isFixed(), ASMbase::MLGN, ASMbase::myMLGN, ASMbase::nf, nxMap, ASMbase::prescribe(), SplineUtils::project(), ASMbase::shareFE, swapW, T1, SplineUtils::toVec3(), Vec3::x, xnMap, ASMbase::xNode, Vec3::y, and Vec3::z.

◆ constrainLine()

void ASMs3D::constrainLine	(	int	fdir,
		int	ldir,
		double	xi,
		int	dof,
		int	code = `0`,
		char	basis = `1`
	)

virtual

Constrains all DOFs along a line on a given boundary face.

Parameters

[in]	fdir	Parameter direction defining the face to constrain
[in]	ldir	Parameter direction defining the line to constrain
[in]	xi	Parameter value defining the line to constrain
[in]	dof	Which DOFs to constrain at each node along the line
[in]	code	Inhomogeneous dirichlet condition code
[in]	basis	Which basis to constrain line for

The parameter xi has to be in the domain [0.0,1.0], where 0.0 means the beginning of the domain and 1.0 means the end. The line to constrain goes along the parameter direction ldir in the face with with normal in parameter direction fdir, and positioned along the third parameter direction as indicated by xi. The actual value of xi is converted to the integer value closest to xi*n, where n is the number of nodes (control points) in that parameter direction.

Implements ASM3D.

References findStartNode(), ASMbase::prescribe(), and swapW.

◆ constrainNode()

void ASMs3D::constrainNode	(	double	xi,
		double	eta,
		double	zeta,
		int	dof,
		int	code = `0`
	)

virtual

Constrains a node identified by three relative parameter values.

Parameters

[in]	xi	Parameter in u-direction
[in]	eta	Parameter in v-direction
[in]	zeta	Parameter in w-direction
[in]	dof	Which DOFs to constrain at the node
[in]	code	Inhomogeneous dirichlet condition code

The parameter values have to be in the domain [0.0,1.0], where 0.0 means the beginning of the domain and 1.0 means the end. For values in between, the actual index is taken as the integer value closest to r*n, where r denotes the given relative parameter value, and n is the number of nodes along that parameter direction.

Implements ASM3D.

References getSize(), ASMbase::prescribe(), and swapW.

◆ createProjectionBasis()

bool ASMs3D::createProjectionBasis ( bool init )

virtual

Creates a separate projection basis for this patch.

This method is supposed to be invoked twice during the model generation. In the first call, with init = true, the spline volume object *svol is cloned into *proj and the two pointers are then swapped, such that the subsequent refine and raiseOrder operations will apply to the projection basis and not on the geometry basis. In the second call, the pointers are swapped back.

The method can also be invoked twice with init = false in case the projection basis is to be read from a file.

Reimplemented from ASMbase.

References ASMstruct::geomB, ASMstruct::projB, and svol.

◆ evalPoint()

int ASMs3D::evalPoint	(	const double *	xi,
		double *	param,
		Vec3 &	X
	)		const

virtual

Evaluates the geometry at a specified point.

Parameters

[in]	xi	Dimensionless parameters in range [0.0,1.0] of the point
[out]	param	The (u,v,w) parameters of the point in knot-span domain
[out]	X	The Cartesian coordinates of the point

Returns: Local node number within the patch that matches the point, if any; 0 if no node (control point) matches this point

Implements ASMbase.

Reimplemented in ASMs3Dmx, and ASMs3DLag.

References ASM::GEOMETRY_BASIS, getBasis(), SplineUtils::point(), ASMbase::searchCtrlPt(), and svol.

◆ evalProjSolution()

bool ASMs3D::evalProjSolution	(	Matrix &	sField,
		const Vector &	locSol,
		const int *	npe,
		int	n_f
	)		const

virtual

Evaluates the projected solution field at all visualization points.

Parameters

[out]	sField	Solution field
[in]	locSol	Solution vector local to current patch
[in]	npe	Number of visualization nodes over each knot span
[in]	n_f	If nonzero, mixed evaluates n_f fields on first basis

Reimplemented from ASMbase.

References ASMstruct::evalSolution(), utl::matrix< T >::fillColumn(), getGridParameters(), Fields::getNoFields(), getProjectedFields(), utl::matrix< T >::resize(), separateProjectionBasis(), and Fields::valueFE().

◆ evalSolution() [1/5]

Go::GeomObject * ASMs3D::evalSolution ( const IntegrandBase & integrand ) const

virtual

Projects the secondary solution field onto the primary basis.

Parameters

[in] integrand Object with problem-specific data and methods

Implements ASMstruct.

References projectSolution().

◆ evalSolution() [2/5]

bool ASMs3D::evalSolution	(	Matrix &	sField,
		const IntegrandBase &	integrand,
		const int *	npe = `nullptr`,
		char	project = `0`
	)		const

virtual

Evaluates the secondary solution field at all visualization points.

Parameters

[out]	sField	Solution field
[in]	integrand	Object with problem-specific data and methods
[in]	npe	Number of visualization nodes over each knot span
[in]	project	Flag indicating result recovery method (0=none, 'D'=direct evaluation, 'S'=superconvergent recovery)

The secondary solution is derived from the primary solution, which is assumed to be stored within the integrand for current patch. If npe is null, the solution is recovered or evaluated at the Greville points and then projected onto the spline basis to obtain the control point values, which then are returned through sField. If npe is not null and project is defined, the solution is also projected onto the spline basis, and then evaluated at the npe points.

Reimplemented from ASMbase.

Reimplemented in ASMs3DmxLag, and ASMs3DLag.

References ASMstruct::evalSolution(), utl::matrix< T >::fill(), getGridParameters(), SplineUtils::project(), projectSolution(), projectSolutionLeastSquare(), projectSolutionLocal(), projectSolutionLocalApprox(), and utl::matrix< T >::resize().

◆ evalSolution() [3/5]

bool ASMs3D::evalSolution	(	Matrix &	sField,
		const IntegrandBase &	integrand,
		const RealArray *	gpar,
		bool	regular = `true`
	)		const

virtual

Evaluates the secondary solution field at the given points.

Parameters

[out]	sField	Solution field
[in]	integrand	Object with problem-specific data and methods
[in]	gpar	Parameter values of the result sampling points
[in]	regular	Flag indicating how the sampling points are defined

The secondary solution is derived from the primary solution, which is assumed to be stored within the integrand for current patch. When regular is true, it is assumed that the parameter value array gpar forms a regular tensor-product point grid of dimension gpar[0].size() X gpar[1].size() X gpar[2].size(). Otherwise, we assume that it contains the u, v and w parameters directly for each sampling point.

Reimplemented from ASMbase.

Reimplemented in ASMs3DmxLag, ASMs3Dmx, ASMs3DLag, and ASMs3DSpec.

References FiniteElement::age, Vec4::assign(), FiniteElement::d2NdX2, FiniteElement::detJxW, FiniteElement::dNdX, utl::matrixBase< T >::empty(), IntegrandBase::evalSol(), SplineUtils::extractBasis(), utl::matrix< T >::fillColumn(), findElementContaining(), ASMbase::firstEl, ASMbase::firstIp, utl::gather(), Integrand::getIntegrandType(), getNodalCoordinates(), IntegrandBase::getTimeLevel(), utl::Hessian(), ItgPoint::idx, ItgPoint::iel, ItgPoint::iGP, utl::Jacobian(), ASMbase::MLGE, FiniteElement::N, PROFILE2, utl::matrix< T >::resize(), scatterInd(), Integrand::SECOND_DERIVATIVES, utl::vector< T >::size(), svol, Vec4::t, ItgPoint::u, ItgPoint::v, and ItgPoint::w.

◆ evalSolution() [4/5]

bool ASMs3D::evalSolution	(	Matrix &	sField,
		const Vector &	locSol,
		const int *	npe,
		int	n_f,
		bool	piola
	)		const

virtual

Evaluates the primary solution field at all visualization points.

Parameters

[out]	sField	Solution field
[in]	locSol	Solution vector in DOF-order
[in]	npe	Number of visualization nodes over each knot span
[in]	n_f	If nonzero, mixed evaluates n_f fields on first basis
[in]	piola	If true, use piola mapping

Reimplemented from ASMbase.

Reimplemented in ASMs3DLag.

References ASMstruct::evalSolution(), ASMbase::evalSolutionPiola(), and getGridParameters().

Referenced by evaluate().

◆ evalSolution() [5/5]

bool ASMs3D::evalSolution	(	Matrix &	sField,
		const Vector &	locSol,
		const RealArray *	gpar,
		bool	regular = `true`,
		int	deriv = `0`,
		int	= `0`
	)		const

virtual

Evaluates the primary solution field at the given points.

Parameters

[out]	sField	Solution field
[in]	locSol	Solution vector local to current patch
[in]	gpar	Parameter values of the result sampling points
[in]	regular	Flag indicating how the sampling points are defined
[in]	deriv	Derivative order to return

When regular is true, it is assumed that the parameter value array gpar forms a regular tensor-product point grid of dimension gpar[0].size() X gpar[1].size() X gpar[2].size(). Otherwise, we assume that it contains the u, v and w parameters directly for each sampling point.

Reimplemented from ASMbase.

Reimplemented in ASMs3DLag, ASMs3Dmx, and ASMs3DmxLag.

References SplineUtils::extractBasis(), utl::matrix< T >::fillColumn(), utl::gather(), getNodalCoordinates(), utl::Hessian(), utl::Jacobian(), utl::matrix< T >::multiply(), utl::matrix3d< T >::multiply(), PROFILE2, utl::matrix< T >::resize(), scatterInd(), utl::vector< T >::size(), and svol.

◆ evaluate() [1/3]

bool ASMs3D::evaluate	(	const ASMbase *	basis,
		const Vector &	locVec,
		RealArray &	vec,
		int	basisNum
	)		const

virtual

Evaluates and interpolates a field over a given geometry.

Parameters

[in]	basis	The basis of the field to evaluate
[in]	locVec	The coefficients of the field to evaluate
[out]	vec	The obtained coefficients after interpolation
[in]	basisNum	Basis number (mixed)

Reimplemented from ASMbase.

Reimplemented in ASMs3DLag.

References evalSolution(), getBasis(), getGrevilleParameters(), utl::matrix< T >::rows(), and svol.

◆ evaluate() [2/3]

bool ASMs3D::evaluate	(	const Field *	field,
		RealArray &	vec,
		int	basisNum
	)		const

virtual

Evaluates and interpolates a field over a given geometry.

Parameters

[in]	field	The field to evaluate
[out]	vec	The obtained coefficients after interpolation
[in]	basisNum	Basis number (mixed)

Note: A Variation Diminishing Spline Approximation is used here as the regular interpolation method in GoTools only works with uniform knots.

Reimplemented from ASMbase.

References getBasis(), getGrevilleParameters(), utl::vector< T >::push_back(), utl::vector< T >::reserve(), and Field::valueFE().

◆ evaluate() [3/3]

bool ASMs3D::evaluate	(	const FunctionBase *	func,
		RealArray &	vec,
		int	basisNum,
		double	time
	)		const

virtual

Evaluates and interpolates a function over a given geometry.

Parameters

[in]	func	The function to evaluate
[out]	vec	The obtained coefficients after interpolation
[in]	basisNum	Basis number (mixed)
[in]	time	Current time

Reimplemented from ASMbase.

References FunctionBase::dim(), getBasis(), and SplineUtils::project().

◆ evaluateBasis()

void ASMs3D::evaluateBasis	(	double	u,
		double	v,
		double	w,
		Vector &	N
	)		const

virtual

Evaluates the basis functions at the specified point.

Parameters

[in]	u	First parameter value of evaluation point
[in]	v	Second parameter value of evaluation point
[in]	w	Third parameter value of evaluation point
[out]	N	Basis function values

Implements ASMstruct.

References svol.

◆ extractBasis() [1/3]

void ASMs3D::extractBasis	(	double	u,
		double	v,
		double	w,
		int	dir,
		int	p,
		Vector &	dN,
		bool	fromRight = `true`
	)		const

Establishes a vector with basis function derivatives.

Parameters

[in]	u	First parameter value of current integration point
[in]	v	Second parameter value of current integration point
[in]	w	Third parameter value of current integration point
[in]	dir	Which parameter to establish derivatives with respect to
[in]	p	The derivation order
[out]	dN	Basis function derivatives
[in]	fromRight	If true, evaluate from right if at a knot

◆ extractBasis() [2/3]

void ASMs3D::extractBasis	(	double	u,
		double	v,
		double	w,
		Vector &	N,
		Matrix &	dNdu,
		bool	fromRight = `true`
	)		const

Establishes matrices with basis functions and 1st derivatives.

Parameters

[in]	u	First parameter value of current integration point
[in]	v	Second parameter value of current integration point
[in]	w	Third parameter value of current integration point
[out]	N	Basis function values
[out]	dNdu	First derivatives of basis functions
[in]	fromRight	If true, evaluate from right if at a knot

References SplineUtils::extractBasis(), and svol.

◆ extractBasis() [3/3]

void ASMs3D::extractBasis	(	double	u,
		double	v,
		double	w,
		Vector &	N,
		Matrix &	dNdu,
		Matrix3D &	d2Ndu2,
		bool	fromRight = `true`
	)		const

Establishes matrices with basis functions, 1st and 2nd derivatives.

Parameters

[in]	u	First parameter value of current integration point
[in]	v	Second parameter value of current integration point
[in]	w	Third parameter value of current integration point
[out]	N	Basis function values
[out]	dNdu	First derivatives of basis functions
[out]	d2Ndu2	Second derivatives of basis functions
[in]	fromRight	If true, evaluate from right if at a knot

References SplineUtils::extractBasis(), and svol.

◆ findBoundaryElms()

void ASMs3D::findBoundaryElms	(	IntVec &	elms,
		int	lIndex,
		int	= `0`
	)		const

protectedvirtual

Finds the patch-local element numbers on a patch boundary.

Parameters

[out]	elms	Array of element numbers
[in]	lIndex	Local index of the boundary face

Implements ASMbase.

Reimplemented in ASMs3DLag.

References svol.

Referenced by generateThreadGroups().

◆ findElementContaining()

int ASMs3D::findElementContaining ( const double * param ) const

virtual

Returns the element that contains a specified spatial point.

Parameters

[in] param The parameters of the point in the knot-span domain

Returns: Local element number within the patch that contains the point

Implements ASMbase.

References svol.

Referenced by evalSolution().

◆ findPoint()

double ASMs3D::findPoint	(	Vec3 &	X,
		double *	param
	)		const

virtual

Searches for the specified Cartesian point in the patch.

Parameters

	X	The Cartesian coordinates of the point, updated on output
[out]	param	The parameters of the point in the knot-span domain

Returns: Distance from the point X to the found point

Implements ASMbase.

References svol, Vec3::x, Vec3::y, and Vec3::z.

◆ findStartNode()

int ASMs3D::findStartNode	(	int &	n1,
		int &	n2,
		int &	n3,
		char	basis
	)		const

private

Find the start node and size for a basis.

Parameters

[out]	n1	Size of basis in first parameter direction
[out]	n2	Size of basis in second parameter direction
[out]	n3	Size of basis in third parameter direction
[in]	basis	Basis to find data for

Returns: 1-based index of start node for basis

References getSize().

Referenced by collapseFace(), constrainFace(), constrainLine(), getBoundary1Nodes(), getBoundaryNodes(), and getCorner().

◆ generateFEMTopology()

bool ASMs3D::generateFEMTopology ( )

virtual

Generates the finite element topology data for the patch.

The data generated are the element-to-node connectivity array, the node-to-IJK-index array, as well as global node and element numbers.

Implements ASMbase.

Reimplemented in ASMs3DmxLag, ASMs3Dmx, and ASMs3DLag.

References createMNPC(), ASMbase::firstEl, ASMbase::gEl, ASMbase::gNod, ASMbase::MLGN, ASMbase::myMLGE, ASMbase::myMLGN, ASMbase::myMNPC, myNodeInd, ASMbase::nel, ASMbase::nnod, nodeInd, ASMstruct::projB, ASMbase::shareFE, and svol.

◆ generateThreadGroups() [1/4]

void ASMs3D::generateThreadGroups	(	char	lIndex,
		bool	silence,
		bool
	)

virtual

Generates element groups for multi-threading of boundary integrals.

Parameters

[in]	lIndex	Local index [1,6] of the boundary face
[in]	silence	If true, suppress threading group outprint

Reimplemented from ASMbase.

Reimplemented in ASMs3DLag, and ASMs3Dmx.

References generateThreadGroups(), ASMbase::nel, svol, and threadGroupsFace.

◆ generateThreadGroups() [2/4]

void ASMs3D::generateThreadGroups	(	const Integrand &	integrand,
		bool	silence,
		bool	ignoreGlobalLM
	)

virtual

Generates element groups for multi-threading of interior integrals.

Parameters

[in]	integrand	Object with problem-specific data and methods
[in]	silence	If true, suppress threading group outprint
[in]	ignoreGlobalLM	Sanity check option

Reimplemented from ASMbase.

Reimplemented in ASMs3Dmx, and ASMs3DLag.

References generateThreadGroups(), getBasis(), ASMbase::nel, ThreadGroups::oneGroup(), ASMstruct::proj2ThreadGroups, ASM::PROJECTION_BASIS_2, ASMstruct::projThreadGroups, ThreadGroups::stripDir, svol, and threadGroupsVol.

◆ generateThreadGroups() [3/4]

void ASMs3D::generateThreadGroups	(	size_t	strip1,
		size_t	strip2,
		size_t	strip3,
		bool	silence,
		bool	ignoreGlobalLM
	)

protected

Generates element groups for multi-threading of interior integrals.

Parameters

[in]	strip1	Strip width in first direction
[in]	strip2	Strip width in second direction
[in]	strip3	Strip width in third direction
[in]	silence	If true, suppress threading group outprint
[in]	ignoreGlobalLM	Sanity check option

Lamda for setting up thread groups for a basis.

References ThreadGroups::calcGroups(), ASMstruct::checkThreadGroups(), IFEM::cout, getBasis(), ASMbase::MLGE, ASMbase::MNPC, ASMstruct::proj2ThreadGroups, ASM::PROJECTION_BASIS, ASM::PROJECTION_BASIS_2, ASMstruct::projThreadGroups, separateProjectionBasis(), ThreadGroups::size(), svol, and threadGroupsVol.

Referenced by generateThreadGroups(), and ASMs3Dmx::generateThreadGroups().

◆ generateThreadGroups() [4/4]

void ASMs3D::generateThreadGroups	(	size_t	strip1,
		size_t	strip2,
		size_t	strip3,
		char	lIndex,
		bool	silence,
		bool
	)

protected

Generates element groups for multi-threading of boundary integrals.

Parameters

[in]	strip1	Strip width in first direction
[in]	strip2	Strip width in second direction
[in]	strip3	Strip width in third direction
[in]	lIndex	Local index [1,6] of the boundary face
[in]	silence	If true, suppress threading group outprint

References ThreadGroups::applyMap(), ThreadGroups::calcGroups(), IFEM::cout, findBoundaryElms(), ThreadGroups::size(), svol, and threadGroupsFace.

◆ getBoundary()

Go::SplineSurface * ASMs3D::getBoundary	(	int	dir,
		int	= `1`
	)

virtual

Returns the spline surface representing a boundary of this patch.

Parameters

[in] dir Parameter direction defining which boundary to return

Reimplemented in ASMs3Dmx.

References svol.

Referenced by constrainFace(), and constrainFaceLocal().

◆ getBoundary1Nodes()

void ASMs3D::getBoundary1Nodes	(	int	lEdge,
		IntVec &	nodes,
		int	basis,
		int	= `0`,
		bool	local = `false`,
		bool	open = `false`
	)		const

virtual

Finds the global (or patch-local) node numbers on a patch boundary.

Parameters

[in]	lEdge	Local index of the boundary edge
	nodes	Array of node numbers
[in]	basis	Which basis to grab nodes for (for mixed methods)
[in]	local	If true, return patch-local numbers
[in]	open	If true, exclude edge end points

Reimplemented from ASMbase.

References findStartNode(), ASMbase::idx, and swapW.

Referenced by constrainEdge().

◆ getBoundaryNodes()

void ASMs3D::getBoundaryNodes	(	int	lIndex,
		IntVec &	nodes,
		int	basis,
		int	thick = `1`,
		int	= `0`,
		bool	local = `false`
	)		const

virtual

Finds the global (or patch-local) node numbers on a patch boundary.

Parameters

[in]	lIndex	Local index of the boundary face
	nodes	Array of node numbers
[in]	basis	Which basis to grab nodes for (for mixed methods)
[in]	thick	Thickness of connection
[in]	local	If true, return patch-local node numbers

Implements ASMbase.

Reimplemented in ASMs3Dmx.

References findStartNode(), ASMbase::idx, and swapW.

Referenced by connectBasis(), and ASMs3Dmx::getBoundaryNodes().

◆ getCoord()

Vec3 ASMs3D::getCoord ( size_t inod ) const

virtual

Returns the global coordinates for the given node.

Parameters

[in] inod 1-based node index local to current patch

Implements ASMbase.

Reimplemented in ASMs3Dmx, and ASMs3DLag.

References coeffInd(), ASMbase::MLGN, ASMbase::myRmaster, ASMbase::nnod, svol, and xnMap.

Referenced by collapseFace(), and connectBasis().

◆ getCorner()

int ASMs3D::getCorner	(	int	I,
		int	J,
		int	K,
		int	basis
	)		const

virtual

Returns the node index for a given corner.

Parameters

[in]	I	-1 or +1 for either umin or umax corner
[in]	J	-1 or +1 for either vmin or vmax corner
[in]	K	-1 or +1 for either wmin or wmax corner
[in]	basis	which basis to consider (for mixed methods)

Implements ASM3D.

References findStartNode(), K, and swapW.

Referenced by constrainCorner().

◆ getCornerPoints()

void ASMs3D::getCornerPoints	(	int	i1,
		int	i2,
		int	i3,
		std::vector< utl::Point > &	XC
	)		const

protected

Computes the element corner coordinates and parameters.

Parameters

[in]	i1	Parameter index in u-direction
[in]	i2	Parameter index in v-direction
[in]	i3	Parameter index in w-direction
[out]	XC	Coordinates and parameters of the element corners

References getElementCorners().

◆ getElementBorders() [1/2]

void ASMs3D::getElementBorders	(	int	i1,
		int	i2,
		int	i3,
		double *	u,
		double *	v,
		double *	w
	)		const

protected

Computes the element border parameters.

Parameters

[in]	i1	Parameter index in u-direction
[in]	i2	Parameter index in v-direction
[in]	i3	Parameter index in w-direction
[out]	u	Parameter values of the west-east borders
[out]	v	Parameter values of the south-north borders
[out]	w	Parameter values of the back-front borders

References svol.

◆ getElementBorders() [2/2]

void ASMs3D::getElementBorders	(	int	iel,
		double *	u
	)		const

protectedvirtual

Computes the element border parameters.

Parameters

[in]	iel	1-based element index
[out]	u	Parameter values of the element borders

Implements ASMstruct.

References svol.

Referenced by getElementCorners(), and ASMs3Dmx::integrate().

◆ getElementCoordinates()

bool ASMs3D::getElementCoordinates	(	Matrix &	X,
		int	iel,
		bool	forceItg = `false`
	)		const

virtual

Returns a matrix with nodal coordinates for an element.

Parameters

[out]	X	3 \(\times\)n-matrix, where n is the number of nodes in one element
[in]	iel	1-based element index local to current patch
[in]	forceItg	If true, return the integration basis coordinates otherwise the geometry basis coordinates are returned

Implements ASMbase.

Reimplemented in ASMs3DLag.

References coeffInd(), utl::matrix< T >::cols(), ASM::GEOMETRY_BASIS, getBasis(), getElementCoordinatesPrm(), getFirstItgElmNode(), ASMs3D::IJK::I, ASMs3D::IJK::J, ASMs3D::IJK::K, ASMbase::MNPC, nodeInd, utl::matrix< T >::resize(), and svol.

Referenced by ASMs3DmxLag::evalSolution(), integrate(), ASMs3Dmx::integrate(), and integrateEdge().

◆ getElementCoordinatesPrm()

bool ASMs3D::getElementCoordinatesPrm	(	Matrix &	X,
		double	u,
		double	v,
		double	w
	)		const

protected

Returns a matrix with nodal coordinates for element spanning given parameters.

Parameters

[out]	X	3 \(\times\)n-matrix, where n is the number of nodes
[in]	u	First parameter of point
[in]	v	Second parameter of point
[in]	w	Third parameter of point

References utl::matrix< T >::cols(), ASM::GEOMETRY_BASIS, getBasis(), and utl::matrix< T >::resize().

Referenced by ASMs3DmxLag::evalSolution(), and getElementCoordinates().

◆ getElementCorners()

double ASMs3D::getElementCorners	(	int	i1,
		int	i2,
		int	i3,
		std::vector< Vec3 > &	XC,
		RealArray *	uC = `nullptr`
	)		const

protected

Computes the element corner coordinates.

Parameters

[in]	i1	Parameter index in u-direction
[in]	i2	Parameter index in v-direction
[in]	i3	Parameter index in w-direction
[out]	XC	Coordinates of the element corners
[out]	uC	Spline parameters of the element corners (optional)

Returns: Characteristic element size

References getElementBorders(), ASM3D::getElementSize(), ASMbase::nsd, and svol.

Referenced by getCornerPoints(), integrate(), ASMs3Dmx::integrate(), and ASMs3DmxLag::integrate().

◆ getElmConnectivities()

void ASMs3D::getElmConnectivities	(	IntMat &	neigh,
		int	basis = `ASM::INTEGRATION_BASIS`
	)		const

virtual

Calculates the matrix of element neighbour connectivities.

Parameters

[out]	neigh	List of element neighbors for each element
[in]	basis	Basis to obtain connectivities for

Implements ASMbase.

References getBasis(), ASMbase::idx, ASM::INTEGRATION_BASIS, and ASMbase::MLGE.

◆ getFaceSize()

bool ASMs3D::getFaceSize	(	int &	n1,
		int &	n2,
		int	basis,
		int	face
	)		const

private

Find local sizes for a given face.

Parameters

[out]	n1	Number of nodes in first local parameter direction on face
[out]	n2	Number of nodes in second local parameter direction face
[in]	basis	Basis to obtain sizes for
[in]	face	Face to obtain sizes for

References getSize().

Referenced by connectBasis().

◆ getGaussPointParameters()

void ASMs3D::getGaussPointParameters	(	RealArray &	uGP,
		int	dir,
		int	nGauss,
		const double *	xi
	)		const

protected

Extracts parameter values of the Gauss points in one direction.

Parameters

[out]	uGP	Parameter values in given direction for all points
[in]	dir	Parameter direction (0,1,2)
[in]	nGauss	Number of Gauss points along a knot-span
[in]	xi	Dimensionless Gauss point coordinates [-1,1]

References SplineUtils::getGaussParameters(), ASMbase::nGauss, and svol.

◆ getGrevilleParameters()

bool ASMs3D::getGrevilleParameters	(	RealArray &	prm,
		int	dir,
		int	basisNum = `1`
	)		const

protected

Calculates parameter values for the Greville points.

Parameters

[out]	prm	Parameter values in given direction for all points
[in]	dir	Parameter direction (0,1,2)
[in]	basisNum	Which basis to get Greville point parameters for

References getBasis().

Referenced by constrainFaceLocal(), evaluate(), projectSolution(), projectSolutionLocal(), and projectSolutionLocalApprox().

◆ getGridParameters()

bool ASMs3D::getGridParameters	(	RealArray &	prm,
		int	dir,
		int	nSegSpan
	)		const

virtual

Calculates parameter values for visualization nodal points.

Parameters

[out]	prm	Parameter values in given direction for all points
[in]	dir	Parameter direction (0,1,2)
[in]	nSegSpan	Number of visualization segments over each knot-span

Reimplemented in ASMs3DSpec, and ASMs3DLag.

References svol.

Referenced by evalProjSolution(), evalSolution(), ASMs3DLag::getGridParameters(), and tesselate().

◆ getNodalCoordinates()

void ASMs3D::getNodalCoordinates	(	Matrix &	X,
		bool	geo = `false`
	)		const

virtual

Returns a matrix with all nodal coordinates within the patch.

Parameters

[out]	X	3 \(\times\)n-matrix, where n is the number of nodes
[in]	geo	If true, coordinates for the geometry basis are returned otherwise the integration basis coordinates are returned

Implements ASMbase.

Reimplemented in ASMs3DLag.

References ASM::GEOMETRY_BASIS, getBasis(), utl::matrix< T >::resize(), and svol.

Referenced by ASMs3Dmx::evalSolution(), and evalSolution().

◆ getNodeID()

int ASMs3D::getNodeID	(	size_t	inod,
		bool	noAddedNodes = `false`
	)		const

virtual

Returns the global node number for the given node.

Parameters

[in]	inod	1-based node index local to current patch
[in]	noAddedNodes	If true, use nxMap to find the real node

Reimplemented from ASMbase.

References ASMbase::MLGN, and nxMap.

◆ getNodeIndex()

size_t ASMs3D::getNodeIndex	(	int	globalNum,
		bool	noAddedNodes = `false`
	)		const

virtual

Returns local 1-based index of the node with given global number.

If the given node number is not present, 0 is returned.

Parameters

[in]	globalNum	Global node number
[in]	noAddedNodes	If true, use xnMap to find the real node

Reimplemented from ASMbase.

References utl::findIndex(), ASMbase::MLGN, ASMbase::nnod, and xnMap.

◆ getNoStructElms()

bool ASMs3D::getNoStructElms	(	int &	n1,
		int &	n2,
		int &	n3
	)		const

virtual

Returns the number of elements in each parameter direction.

Parameters

[out]	n1	Number of nodes in first (u) direction
[out]	n2	Number of nodes in second (v) direction
[out]	n3	Number of nodes in third (w) direction

Implements ASMstruct.

References svol.

◆ getOrder()

bool ASMs3D::getOrder	(	int &	p1,
		int &	p2,
		int &	p3
	)		const

virtual

Returns the polynomial order in each parameter direction.

Parameters

[out]	p1	Order in first (u) direction
[out]	p2	Order in second (v) direction
[out]	p3	Order in third (w) direction

Reimplemented from ASMbase.

Reimplemented in ASMs3DLag.

References svol.

◆ getParameterDomain()

bool ASMs3D::getParameterDomain	(	Real2DMat &	u,
		IntVec *	corners
	)		const

virtual

Returns parameter values and node numbers of the domain corners.

Parameters

[out]	u	Parameter values of the domain corners
[out]	corners	1-based indices of the corner nodes (optional)

Implements ASMbase.

References svol.

◆ getParametricArea()

double ASMs3D::getParametricArea	(	int	iel,
		int	dir
	)		const

protected

Returns boundary face area in the parameter space for an element.

Parameters

[in]	iel	Element index
[in]	dir	Local face index of the boundary face

References ASMbase::MNPC.

Referenced by integrate(), and ASMs3Dmx::integrate().

◆ getParametricVolume()

double ASMs3D::getParametricVolume ( int iel ) const

protected

Returns the volume in the parameter space for an element.

Parameters

[in] iel Element index

References ASMbase::MNPC.

Referenced by ASMs3DmxLag::evalSolution(), integrate(), and ASMs3Dmx::integrate().

◆ getProjectedField()

Field * ASMs3D::getProjectedField ( const Vector & coefs ) const

virtual

Returns a field using the projection basis.

Parameters

[in] coefs The coefficients for the field

Reimplemented from ASMbase.

References getNoProjectionNodes(), ASMstruct::projB, and utl::vector< T >::size().

◆ getProjectedFields()

Fields * ASMs3D::getProjectedFields	(	const Vector &	coefs,
		size_t	= `0`
	)		const

virtual

Returns a field using the projection basis.

Parameters

[in] coefs The coefficients for the field

Reimplemented from ASMbase.

References getNoProjectionNodes(), ASMstruct::projB, and utl::vector< T >::size().

Referenced by evalProjSolution().

◆ getQuasiInterplParameters()

bool ASMs3D::getQuasiInterplParameters	(	RealArray &	prm,
		int	dir
	)		const

protected

Calculates parameter values for the Quasi-Interpolation points.

Parameters

[out]	prm	Parameter values in given direction for all points
[in]	dir	Parameter direction (0,1,2)

References svol.

Referenced by projectSolutionLocal().

◆ getSize()

bool ASMs3D::getSize	(	int &	n1,
		int &	n2,
		int &	n3,
		int	basis = `0`
	)		const

virtual

Returns the number of nodal points in each parameter direction.

Parameters

[out]	n1	Number of nodes in first (u) direction
[out]	n2	Number of nodes in second (v) direction
[out]	n3	Number of nodes in third (w) direction
[in]	basis	Which basis to return size parameters for (mixed methods)

Implements ASMstruct.

Reimplemented in ASMs3DLag, ASMs3DmxLag, and ASMs3Dmx.

References svol.

Referenced by closeBoundaries(), constrainFaceLocal(), constrainNode(), findStartNode(), getFaceSize(), and ASMs3Dmx::getSize().

◆ integrate() [1/4]

bool ASMs3D::integrate	(	Integrand &	integrand,
		GlobalIntegral &	glbInt,
		const TimeDomain &	time
	)

virtual

Evaluates an integral over the interior patch domain.

Parameters

	integrand	Object with problem-specific data and methods
	glbInt	The integrated quantity
[in]	time	Parameters for nonlinear/time-dependent simulations

Implements ASMbase.

Reimplemented in ASMs3DSpec, ASMs3DmxLag, ASMs3Dmx, and ASMs3DLag.

◆ integrate() [2/4]

bool ASMs3D::integrate	(	Integrand &	integrand,
		GlobalIntegral &	glbInt,
		const TimeDomain &	time,
		const ASM::InterfaceChecker &	iChk
	)

protectedvirtual

Evaluates an integral over element interfaces in the patch.

Parameters

	integrand	Object with problem-specific data and methods
	glbInt	The integrated quantity
[in]	time	Parameters for nonlinear/time-dependent simulations
[in]	iChk	Object checking if an element interface has contributions

Reimplemented from ASMbase.

Reimplemented in ASMs3Dmx.

References Integrand::getIntegrandType(), Integrand::INTERFACE_TERMS, and svol.

◆ integrate() [3/4]

bool ASMs3D::integrate	(	Integrand &	integrand,
		GlobalIntegral &	glbInt,
		const TimeDomain &	time,
		const Real3DMat &	itgPts
	)

protected

Evaluates an integral over the interior patch domain.

Parameters

	integrand	Object with problem-specific data and methods
	glbInt	The integrated quantity
[in]	time	Parameters for nonlinear/time-dependent simulations
[in]	itgPts	Parameters and weights of the integration points

References FiniteElement::age, GlobalIntegral::assemble(), Vec4::assign(), FiniteElement::d2NdX2, ASMbase::dbgElm, LocalIntegral::destruct(), FiniteElement::detJxW, FiniteElement::dNdX, Integrand::ELEMENT_CENTER, Integrand::ELEMENT_CORNERS, ASMstruct::empty(), Integrand::evalInt(), SplineUtils::extractBasis(), Integrand::finalizeElement(), ASMbase::firstEl, ASMbase::firstIp, FiniteElement::G, Integrand::G_MATRIX, getElementCoordinates(), getElementCorners(), utl::getGmat(), Integrand::getIntegrandType(), Integrand::getLocalIntegral(), getParametricVolume(), Integrand::getReducedIntegration(), FiniteElement::h, utl::Hessian(), ItgPoint::idx, ItgPoint::iel, ItgPoint::iGP, Integrand::initElement(), utl::Jacobian(), ASMbase::MLGE, ASMbase::MNPC, ASMbase::myElms, FiniteElement::N, ASMbase::nel, ThreadGroups::oneStripe(), PROFILE2, PROFILE3, LocalIntegral::ref(), Integrand::SECOND_DERIVATIVES, utl::vector< T >::size(), ThreadGroups::size(), svol, TimeDomain::t, threadGroupsVol, GlobalIntegral::threadSafe(), ItgPoint::u, Vec4::u, ItgPoint::v, ItgPoint::w, and FiniteElement::XC.

◆ integrate() [4/4]

bool ASMs3D::integrate	(	Integrand &	integrand,
		int	lIndex,
		GlobalIntegral &	glbInt,
		const TimeDomain &	time
	)

virtual

Evaluates a boundary integral over a patch face.

Parameters

	integrand	Object with problem-specific data and methods
[in]	lIndex	Local index [1,6] of the boundary face
	glbInt	The integrated quantity
[in]	time	Parameters for nonlinear/time-dependent simulations

Implements ASMbase.

Reimplemented in ASMs3DSpec, ASMs3DmxLag, ASMs3Dmx, and ASMs3DLag.

References FiniteElement::age, GlobalIntegral::assemble(), Vec4::assign(), ASMbase::dbgElm, LocalIntegral::destruct(), FiniteElement::detJxW, FiniteElement::dNdX, Integrand::ELEMENT_CORNERS, ItgPoint::eta, Integrand::evalBou(), SplineUtils::extractBasis(), Integrand::finalizeElementBou(), ASMbase::firstBp, ASMbase::firstEl, FiniteElement::G, Integrand::G_MATRIX, Integrand::getBouIntegrationPoints(), GaussQuadrature::getCoord(), getElementCoordinates(), getElementCorners(), SplineUtils::getGaussParameters(), utl::getGmat(), Integrand::getIntegrandType(), Integrand::getLocalIntegral(), ASMbase::getNoGaussPt(), getParametricArea(), GaussQuadrature::getWeight(), FiniteElement::h, ItgPoint::idx, ItgPoint::iel, ItgPoint::iGP, Integrand::initElementBou(), utl::Jacobian(), ASMbase::MLGE, ASMbase::MNPC, ASMbase::myElms, FiniteElement::N, PROFILE2, LocalIntegral::ref(), Integrand::setNeumannOrder(), utl::vector< T >::size(), ThreadGroups::size(), svol, TimeDomain::t, threadGroupsFace, ItgPoint::u, ItgPoint::v, ItgPoint::w, FiniteElement::XC, ItgPoint::xi, Integrand::XO_ELEMENTS, and ItgPoint::zeta.

◆ integrateEdge()

bool ASMs3D::integrateEdge	(	Integrand &	integrand,
		int	lEdge,
		GlobalIntegral &	glbInt,
		const TimeDomain &	time
	)

virtual

Evaluates a boundary integral over a patch edge.

Parameters

	integrand	Object with problem-specific data and methods
[in]	lEdge	Local index [1,12] of the patch edge
	glbInt	The integrated quantity
[in]	time	Parameters for nonlinear/time-dependent simulations

Reimplemented from ASMbase.

Reimplemented in ASMs3DSpec, and ASMs3DLag.

References FiniteElement::age, GlobalIntegral::assemble(), Vec4::assign(), LocalIntegral::destruct(), FiniteElement::detJxW, FiniteElement::dNdX, ItgPoint::eta, Integrand::evalBou(), SplineUtils::extractBasis(), Integrand::finalizeElementBou(), ASMbase::firstBp, ASMbase::firstEl, GaussQuadrature::getCoord(), getElementCoordinates(), Integrand::getLocalIntegral(), ASMbase::getNoGaussPt(), GaussQuadrature::getWeight(), ItgPoint::idx, ItgPoint::iel, ItgPoint::iGP, Integrand::initElementBou(), ASMbase::isElementInPartition(), utl::Jacobian(), K, ASMbase::MLGE, ASMbase::MNPC, ASMbase::myElms, FiniteElement::N, ASMbase::nnod, nodeInd, PROFILE2, LocalIntegral::ref(), utl::vector< T >::size(), svol, TimeDomain::t, ItgPoint::u, ItgPoint::v, ItgPoint::w, ItgPoint::xi, and ItgPoint::zeta.

◆ projectSolution()

Go::SplineVolume * ASMs3D::projectSolution ( const IntegrandBase & integrand ) const

private

Projects the secondary solution field onto the primary basis.

Parameters

[in] integrand Object with problem-specific data and methods

References ASMstruct::evalSolution(), getBasis(), getGrevilleParameters(), PROFILE2, and utl::matrix< T >::rows().

Referenced by evalSolution().

◆ raiseOrder()

bool ASMs3D::raiseOrder	(	int	ru,
		int	rv,
		int	rw,
		bool	setOrder = `false`
	)

virtual

Raises the order of the SplineVolume object for this patch.

Parameters

[in]	ru	Number of times to raise the order in u-direction
[in]	rv	Number of times to raise the order in v-direction
[in]	rw	Number of times to raise the order in w-direction
[in]	setOrder	If true, raise order to ru, rv and rw

Implements ASM3D.

References ASMbase::shareFE, and svol.

◆ refine()

bool ASMs3D::refine	(	int	dir,
		const RealArray &	xi
	)

virtual

Refines the parametrization by inserting extra knots.

Parameters

[in]	dir	Parameter direction to refine
[in]	xi	Relative positions of added knots in each existing knot span

References ASMbase::shareFE, and svol.

◆ setNodeNumbers()

void ASMs3D::setNodeNumbers ( const IntVec & nodes )

virtual

Sets the global node numbers for this patch.

Parameters

[in] nodes Vector of global node numbers (zero-based)

Reimplemented from ASMbase.

References ASMbase::myMLGN, ASMbase::setNodeNumbers(), svol, and swapW.

◆ tesselate()

bool ASMs3D::tesselate	(	ElementBlock &	grid,
		const int *	npe
	)		const

virtual

Creates a hexahedron element model of this patch for visualization.

Parameters

[out]	grid	The generated hexahedron grid
[in]	npe	Number of visualization nodes over each knot span

Note: The number of element nodes must be set in grid on input.

Implements ASMbase.

Reimplemented in ASMs3DLag.

References getGridParameters(), ElementBlock::getNoNodes(), ElementBlock::resize(), ElementBlock::setCoor(), ElementBlock::setElmId(), ElementBlock::setNode(), ElementBlock::setParams(), and svol.

Referenced by ASMs3DLag::tesselate().

◆ uniformRefine()

bool ASMs3D::uniformRefine	(	int	dir,
		int	nInsert
	)

virtual

Refines the parametrization by inserting extra knots uniformly.

Parameters

[in]	dir	Parameter direction to refine
[in]	nInsert	Number of extra knots to insert in each knot-span

Implements ASM3D.

References ASMbase::shareFE, and svol.

◆ updateCoords()

bool ASMs3D::updateCoords ( const Vector & displ )

virtual

Updates the nodal coordinates for this patch.

Parameters

[in] displ Incremental displacements to update the coordinates with

Implements ASMbase.

Reimplemented in ASMs3DLag.

References ASMbase::MLGN, ASMbase::shareFE, utl::vector< T >::size(), and svol.

◆ updateDirichlet()

bool ASMs3D::updateDirichlet	(	const std::map< int, RealFunc * > &	func,
		const std::map< int, VecFunc * > &	vfunc,
		double	time,
		const std::map< int, int > *	g2l = `nullptr`
	)

virtual

Updates the time-dependent in-homogeneous Dirichlet coefficients.

Parameters

[in]	func	Scalar property fields
[in]	vfunc	Vector property fields
[in]	time	Current time
[in]	g2l	Pointer to global-to-local node number mapping

This method projects the function describing the in-homogeneous Dirichlet boundary condition onto the spline basis defining the boundary surface, in order to find the control point values which are used as the prescribed values of the boundary DOFs.

Reimplemented from ASMbase.

References dirich, ASMbase::MLGN, ASMbase::mpcs, SplineUtils::project(), and ASMbase::updateDirichlet().

The documentation for this class was generated from the following files:

src/ASM/ASMs3D.h
src/ASM/ASMs3D.C
src/ASM/ASMs3Drecovery.C

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Static Private Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ addRigidCpl()

◆ addXElms()

◆ assembleL2matrices()

◆ assignNodeNumbers()

◆ checkRightHandSystem()

◆ clear()

◆ closeBoundaries()

◆ coeffInd()

◆ collapseFace()

◆ connectBasis()

◆ connectPatch()

◆ constrainCorner()

◆ constrainEdge()

◆ constrainFace()

◆ constrainFaceLocal()

◆ constrainLine()

◆ constrainNode()

◆ createProjectionBasis()

◆ evalPoint()

◆ evalProjSolution()

◆ evalSolution() [1/5]

◆ evalSolution() [2/5]

◆ evalSolution() [3/5]

◆ evalSolution() [4/5]

◆ evalSolution() [5/5]

◆ evaluate() [1/3]

◆ evaluate() [2/3]

◆ evaluate() [3/3]

◆ evaluateBasis()

◆ extractBasis() [1/3]

◆ extractBasis() [2/3]

◆ extractBasis() [3/3]

◆ findBoundaryElms()

◆ findElementContaining()

◆ findPoint()

◆ findStartNode()

◆ generateFEMTopology()

◆ generateThreadGroups() [1/4]

◆ generateThreadGroups() [2/4]

◆ generateThreadGroups() [3/4]

◆ generateThreadGroups() [4/4]

◆ getBoundary()

◆ getBoundary1Nodes()

◆ getBoundaryNodes()

◆ getCoord()

◆ getCorner()

◆ getCornerPoints()

◆ getElementBorders() [1/2]

◆ getElementBorders() [2/2]

◆ getElementCoordinates()

◆ getElementCoordinatesPrm()

◆ getElementCorners()

◆ getElmConnectivities()

◆ getFaceSize()

◆ getGaussPointParameters()

◆ getGrevilleParameters()

◆ getGridParameters()

◆ getNodalCoordinates()

◆ getNodeID()

◆ getNodeIndex()

◆ getNoStructElms()

◆ getOrder()

◆ getParameterDomain()

◆ getParametricArea()

◆ getParametricVolume()

◆ getProjectedField()

◆ getProjectedFields()

◆ getQuasiInterplParameters()

◆ getSize()
