Abstract interface for 3D spline patches. More...

#include <ASM3D.h>

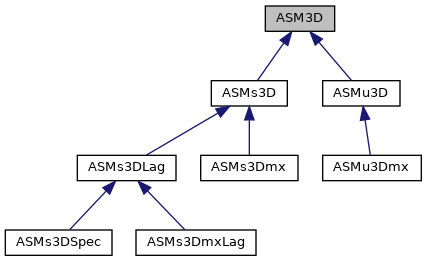

Inheritance diagram for ASM3D:

[legend]

Public Types
typedef std::vector< unsigned char >	CharVec
	Convenience type.

Public Member Functions
virtual	~ASM3D ()
	Empty destructor.

ASMbase *	clone (const CharVec &nf=CharVec()) const
	Returns a copy of this patch with identical FE discretization. More...

virtual bool	checkRightHandSystem ()
	Checks that the patch is modelled in a right-hand-side system.

virtual bool	uniformRefine (int dir, int nInsert)=0
	Refines the parametrization by inserting extra knots uniformly. More...

virtual bool	raiseOrder (int ru, int rv, int rw, bool setOrder=false)=0
	Raises the order of the spline object for this patch. More...

virtual bool	refine (int dir, const std::vector< double > &xi)=0
	Refines the parametrization by inserting extra knots. More...

virtual void	constrainFace (int dir, bool open, int dof, int code=0, char basis=1)=0
	Constrains all DOFs on a given boundary face. More...

virtual size_t	constrainFaceLocal (int dir, bool open, int dof, int code=0, bool project=false, char T1='\0')=0
	Constrains all DOFs in local directions on a given boundary face. More...

virtual void	constrainEdge (int lEdge, bool open, int dof, int code=0, char basis=1)=0
	Constrains all DOFs on a given boundary edge. More...

virtual void	constrainLine (int fdir, int ldir, double xi, int dof=123, int code=0, char basis=1)=0
	Constrains all DOFs along a line on a given boundary face. More...

virtual void	constrainCorner (int I, int J, int K, int dof=123, int code=0, char basis=1)=0
	Constrains a corner node identified by the three parameter indices. More...

virtual void	constrainNode (double xi, double eta, double zeta, int dof=123, int code=0)=0
	Constrains a node identified by three relative parameter values. More...

virtual bool	getGridParameters (std::vector< double > &prm, int dir, int nSegSpan) const =0
	Calculates parameter values for visualization nodal points. More...

virtual int	getCorner (int I, int J, int K, int basis) const =0
	Returns the node index for a given corner.

virtual bool	connectPatch (int face, ASM3D &neighbor, int nface, int norient, int=0, bool coordCheck=true, int thick=1)=0
	Connects all matching nodes on two adjacent boundary faces. More...

Static Public Member Functions
static ASMbase *	create (ASM::Discretization type, const CharVec &nf, bool mixedFEM=false)
	Creates a three-parametric patch of specified discretization type. More...

static ASMbase *	create (ASM::Discretization type, unsigned char nf=1)
	Creates a three-parametric patch of specified discretization type. More...

Protected Member Functions
	ASM3D ()
	The constructor is protected to allow objects of sub-classes only.

Static Protected Member Functions
static double	getElementSize (const std::vector< Vec3 > &XC)
	Returns characteristic element size based on corner coordinates.

Detailed Description

Abstract interface for 3D spline patches.

This class contains an interface to methods common for structured and unstructured 3D patches, such that these methods can be invoked without the need to type-cast the patch object to the actual class type.

Member Function Documentation

◆ clone()

ASMbase * ASM3D::clone ( const CharVec & nf = CharVec() ) const

Returns a copy of this patch with identical FE discretization.

Parameters

[in] nf Number of unknown per basis function in the patch

Note: The copied patch shares the FE data structures with the copy, in order to save memory. Thus, the copy cannot be read from file, refined, or changed in other ways that affect the FE geometry and/or topology. The other properties of the patch (boundary conditions, constraints, loads, etc.) are however not copied.

Referenced by SIM3D::clonePatches(), and ASMbase::cloneUnShared().

◆ connectPatch()

virtual bool ASM3D::connectPatch	(	int	face,
		ASM3D &	neighbor,
		int	nface,
		int	norient,
		int	= `0`,
		bool	coordCheck = `true`,
		int	thick = `1`
	)

pure virtual

Connects all matching nodes on two adjacent boundary faces.

Parameters

[in]	face	Local face index of this patch, in range [1,6]
	neighbor	The neighbor patch
[in]	nface	Local face index of neighbor patch, in range [1,6]
[in]	norient	Relative face orientation flag (see below)
[in]	coordCheck	False to disable coordinate checks (periodic connections)
[in]	thick	Thickness of connection

The face orientation flag norient must be in range [0,7]. When interpreted as a binary number, its 3 digits are decoded as follows:

left digit = 1: The u and v parameters of the neighbor face are swapped
middle digit = 1: Parameter u in neighbor patch face is reversed
right digit = 1: Parameter v in neighbor patch face is reversed

Implemented in ASMu3D, ASMs3D, ASMs3DmxLag, and ASMs3Dmx.

Referenced by SIM3D::connectPatches().

◆ constrainCorner()

virtual void ASM3D::constrainCorner	(	int	I,
		int	J,
		int	K,
		int	dof = `123`,
		int	code = `0`,
		char	basis = `1`
	)

pure virtual

Constrains a corner node identified by the three parameter indices.

Parameters

[in]	I	Parameter index in u-direction
[in]	J	Parameter index in v-direction
[in]	K	Parameter index in w-direction
[in]	dof	Which DOFs to constrain at the node
[in]	code	Inhomogeneous dirichlet condition code
[in]	basis	Which basis to constrain corner for

The sign of the three indices is used to define whether we want the node at the beginning or the end of that parameter direction. The magnitude of the indices are not used.

Implemented in ASMu3D, and ASMs3D.

Referenced by SIM3D::addConstraint().

◆ constrainEdge()

virtual void ASM3D::constrainEdge	(	int	lEdge,
		bool	open,
		int	dof,
		int	code = `0`,
		char	basis = `1`
	)

pure virtual

Constrains all DOFs on a given boundary edge.

Parameters

[in]	lEdge	Local index [1,12] of the edge to constrain
[in]	open	If true, exclude the end points of the edge
[in]	dof	Which DOFs to constrain at each node on the edge
[in]	code	Inhomogeneous dirichlet condition code
[in]	basis	Which basis to constrain edge for

Implemented in ASMu3D, ASMs3DLag, and ASMs3D.

Referenced by SIM3D::addConstraint().

◆ constrainFace()

virtual void ASM3D::constrainFace	(	int	dir,
		bool	open,
		int	dof,
		int	code = `0`,
		char	basis = `1`
	)

pure virtual

Constrains all DOFs on a given boundary face.

Parameters

[in]	dir	Parameter direction defining the face to constrain
[in]	open	If true, exclude all points along the face boundary
[in]	dof	Which DOFs to constrain at each node on the face
[in]	code	Inhomogeneous dirichlet condition code
[in]	basis	Which basis to constrain face for

Implemented in ASMu3D, ASMs3DLag, and ASMs3D.

Referenced by SIM3D::addConstraint().

◆ constrainFaceLocal()

virtual size_t ASM3D::constrainFaceLocal	(	int	dir,
		bool	open,
		int	dof,
		int	code = `0`,
		bool	project = `false`,
		char	T1 = `'\0'`
	)

pure virtual

Constrains all DOFs in local directions on a given boundary face.

Parameters

[in]	dir	Parameter direction defining the face to constrain
[in]	open	If true, exclude all points along the face boundary
[in]	dof	Which local DOFs to constrain at each node on the face
[in]	code	Inhomogeneous dirichlet condition code
[in]	project	If true, the local axis directions are projected
[in]	T1	Desired global direction of first local tangent direction

Returns: Number of additional nodes added due to local axis constraints

Implemented in ASMu3D, and ASMs3D.

Referenced by SIM3D::addConstraint().

◆ constrainLine()

virtual void ASM3D::constrainLine	(	int	fdir,
		int	ldir,
		double	xi,
		int	dof = `123`,
		int	code = `0`,
		char	basis = `1`
	)

pure virtual

Constrains all DOFs along a line on a given boundary face.

Parameters

[in]	fdir	Parameter direction defining the face to constrain
[in]	ldir	Parameter direction defining the line to constrain
[in]	xi	Parameter value defining the line to constrain
[in]	dof	Which DOFs to constrain at each node along the line
[in]	code	Inhomogeneous dirichlet condition code
[in]	basis	Which basis to constrain line for

The parameter xi has to be in the domain [0.0,1.0], where 0.0 means the beginning of the domain and 1.0 means the end. The line to constrain goes along the parameter direction ldir in the face with with normal in parameter direction fdir, and positioned along the third parameter direction as indicated by xi. The actual value of xi is converted to the integer value closest to xi*n, where n is the number of nodes (control points) in that parameter direction.

Implemented in ASMu3D, and ASMs3D.

◆ constrainNode()

virtual void ASM3D::constrainNode	(	double	xi,
		double	eta,
		double	zeta,
		int	dof = `123`,
		int	code = `0`
	)

pure virtual

Constrains a node identified by three relative parameter values.

Parameters

[in]	xi	Parameter in u-direction
[in]	eta	Parameter in v-direction
[in]	zeta	Parameter in w-direction
[in]	dof	Which DOFs to constrain at the node
[in]	code	Inhomogeneous dirichlet condition code

The parameter values have to be in the domain [0.0,1.0], where 0.0 means the beginning of the domain and 1.0 means the end. For values in between, the actual index is taken as the integer value closest to r*n, where r denotes the given relative parameter value, and n is the number of nodes along that parameter direction.

Implemented in ASMu3D, and ASMs3D.

Referenced by SIM3D::parse(), and SIM3D::parseBCTag().

◆ create() [1/2]

ASMbase * ASM3D::create	(	ASM::Discretization	type,
		const CharVec &	nf,
		bool	mixedFEM = `false`
	)

static

Creates a three-parametric patch of specified discretization type.

Parameters

[in]	type	The discretization method to use
[in]	nf	Number of unknowns per basis function in the patch
[in]	mixedFEM	If true, force mixed formulation even if nf[1]=0

Referenced by create(), FieldFuncHDF5::load(), SIM3D::parseGeometryTag(), SIMsupel::readPatch(), and SIM3D::readPatch().

◆ create() [2/2]

ASMbase * ASM3D::create	(	ASM::Discretization	type,
		unsigned char	nf = `1`
	)

static

Creates a three-parametric patch of specified discretization type.

Parameters

[in]	type	The discretization method to use
[in]	nf	Number of unknowns per basis function in the patch

References create().

◆ getGridParameters()

virtual bool ASM3D::getGridParameters	(	std::vector< double > &	prm,
		int	dir,
		int	nSegSpan
	)		const

pure virtual

Calculates parameter values for visualization nodal points.

Parameters

[out]	prm	Parameter values in given direction for all points
[in]	dir	Parameter direction (0,1)
[in]	nSegSpan	Number of visualization segments over each knot-span

◆ raiseOrder()

virtual bool ASM3D::raiseOrder	(	int	ru,
		int	rv,
		int	rw,
		bool	setOrder = `false`
	)

pure virtual

Raises the order of the spline object for this patch.

Parameters

[in]	ru	Number of times to raise the order in u-direction
[in]	rv	Number of times to raise the order in v-direction
[in]	rw	Number of times to raise the order in w-direction
[in]	setOrder	If true, raise order to ru, rv and rw

Implemented in ASMs3D, and ASMu3D.

Referenced by SIM3D::parse(), and SIM3D::parseGeometryTag().

◆ refine()

virtual bool ASM3D::refine	(	int	dir,
		const std::vector< double > &	xi
	)

pure virtual

Refines the parametrization by inserting extra knots.

Parameters

[in]	dir	Parameter direction to refine
[in]	xi	Relative positions of added knots in each existing knot span

Referenced by SIM3D::parse(), and SIM3D::parseGeometryTag().

◆ uniformRefine()

virtual bool ASM3D::uniformRefine	(	int	dir,
		int	nInsert
	)

pure virtual

Refines the parametrization by inserting extra knots uniformly.

Parameters

[in]	dir	Parameter direction to refine
[in]	nInsert	Number of extra knots to insert in each knot-span

Implemented in ASMu3D, and ASMs3D.

Referenced by SIM3D::parse(), and SIM3D::parseGeometryTag().

The documentation for this class was generated from the following files:

src/ASM/ASM3D.h
src/ASM/ASM3D.C
