MeshUtils.C File Reference

Various mesh quality indicators. More...

#include "MeshUtils.h"
#include "ASMbase.h"
#include "SIMbase.h"
#include "Vec3.h"
#include "Vec3Oper.h"

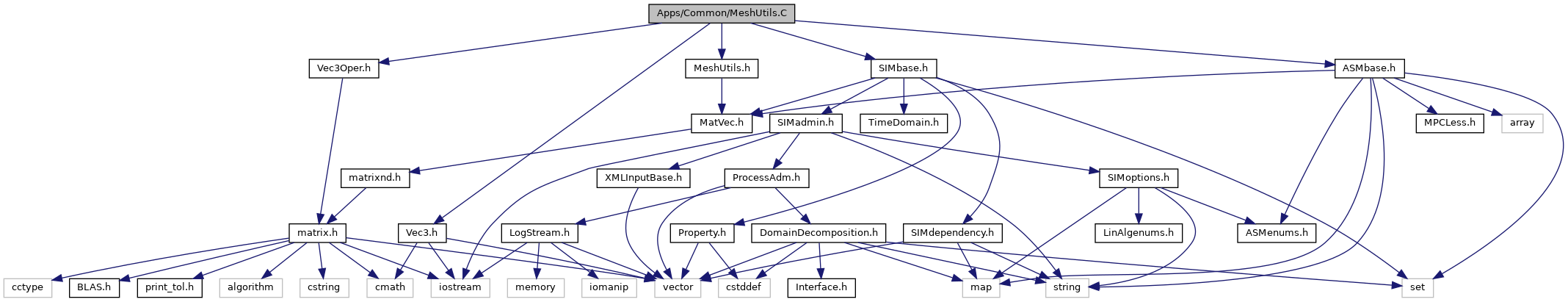

Include dependency graph for MeshUtils.C:

Typedefs
typedef double(*	CellFunction) (const ASMbase &patch, int iel)
	A function calculating a quantity for a single element.

Functions
static bool	compute (std::vector< double > &result, const SIMbase &model, const Vector &displacement, CellFunction func)
	Function running over mesh cells calling the cellfunction for each element.
static double	aspectRatio (const ASMbase &patch, int iel)
	Compute the aspect ratio of a cell. More...
static double	skewness (const ASMbase &patch, int iel)
	Compute the skewness of a cell. More...
bool	MeshUtils::computeAspectRatios (std::vector< double > &elmAspects, const SIMbase &model, const Vector &displacement=Vector())
	Compute element aspect ratios for a mesh. More...
bool	MeshUtils::computeMeshSkewness (std::vector< double > &elmSkewness, const SIMbase &model, const Vector &displacement=Vector())
	Compute element skewness for a mesh. More...

Detailed Description

Various mesh quality indicators.

Date

Feb 16 2015

Author

Arne Morten Kvarving / SINTEF

Function Documentation

aspectRatio()

static double aspectRatio ( const ASMbase &  patch, int  iel  )

static

Compute the aspect ratio of a cell.

The aspect ratio is defined as the longest edge divided by the shortest edge

References ASMbase::getElementCoordinates(), and ASMbase::getNoSpaceDim().

Referenced by MeshUtils::computeAspectRatios().

computeAspectRatios()

bool MeshUtils::computeAspectRatios	(	std::vector< double > &	elmAspects,
		const SIMbase &	model,
		const Vector &	displacement = Vector()
	)

Compute element aspect ratios for a mesh.

Parameters

[out]	elmAspects	The element aspect ratios
[in]	model	The model holding the mesh
[in]	displacement	A displacement to apply to mesh coordinates

References aspectRatio(), compute(), and MeshUtils::computeAspectRatios().

Referenced by MeshUtils::computeAspectRatios().

computeMeshSkewness()

bool MeshUtils::computeMeshSkewness	(	std::vector< double > &	elmSkewness,
		const SIMbase &	model,
		const Vector &	displacement = Vector()
	)

Compute element skewness for a mesh.

Parameters

[out]	elmSkewness	The element skewness values
[in]	model	The model holding the mesh
[in]	displacement	A displacement to apply to mesh coordinates

References compute(), MeshUtils::computeMeshSkewness(), and skewness().

Referenced by MeshUtils::computeMeshSkewness().

skewness()

static double skewness ( const ASMbase &  patch, int  iel  )

static

Compute the skewness of a cell.

The skewness measures the deviance from a regular cell in terms of angles

References ASMbase::getElementCoordinates(), ASMbase::getNoSpaceDim(), and Vec3::length().

Referenced by MeshUtils::computeMeshSkewness().
